Help CenterCO2 Material ER70S-6 Welding Wire
Related Products
Specifications
CO2 shield welding wireGrade: ER70S-6
Diameter: 0.8,1.0,1.2,.16mm
Package: 5/15/20kg per coil,or according to customer
Specifications

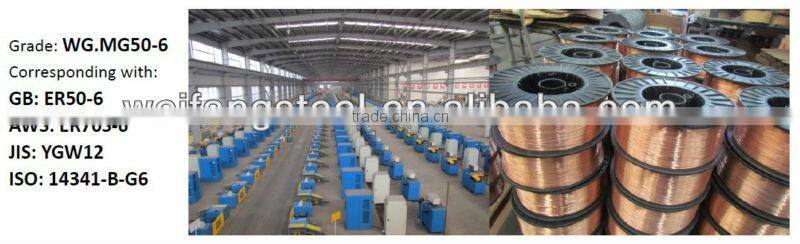

Grade: ER50-6 ER70S-6 YGW12
Diameter: 0.8mm,1.0mm,1.2mm,1.6mm

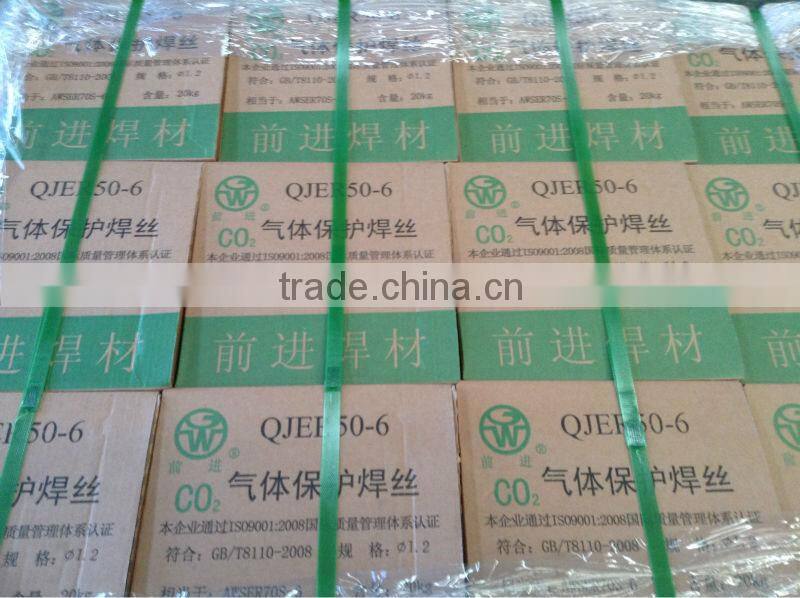

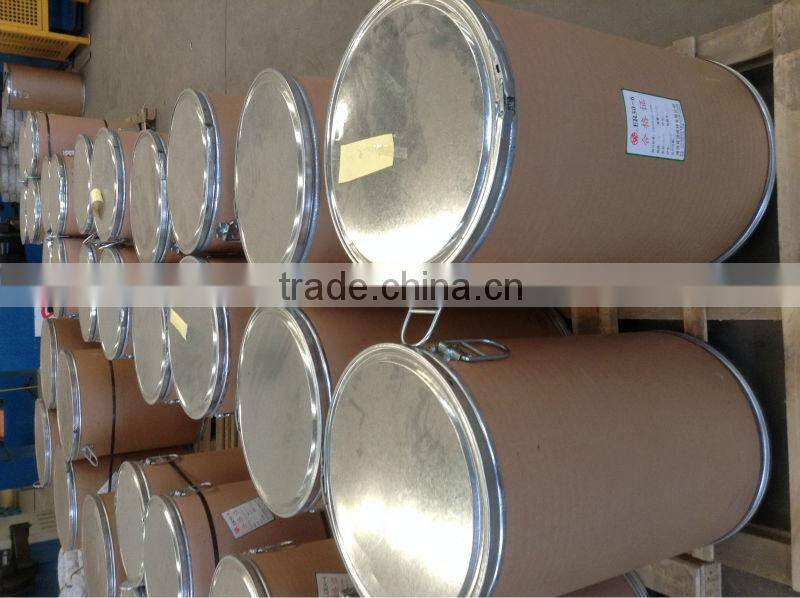

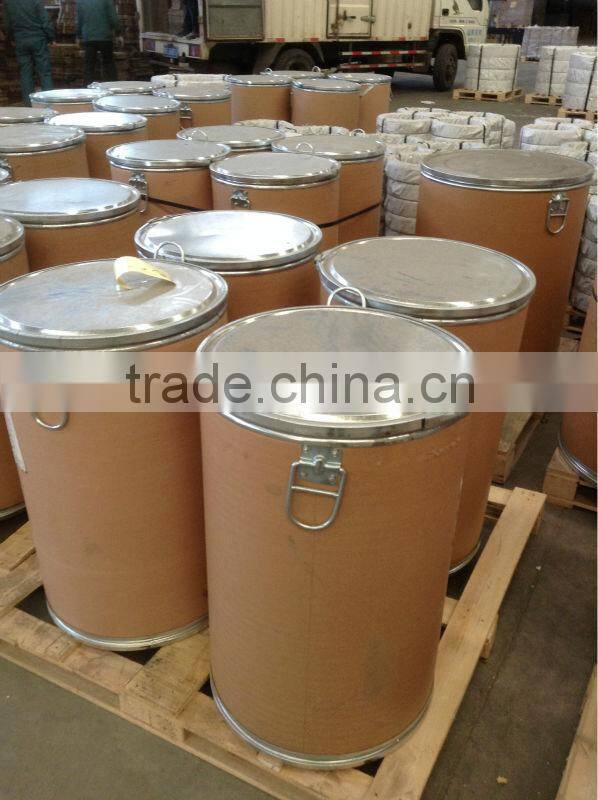

Package: 5/15/20kg per spool,or according to customer's demand
Welding wire ER50-6 ER70S-6 YGW12
Quality Certificates: ABS, LR, GL, CCS
Feature: Strong resistance to surface scales and oil stains on the base metal. It has low blowhole sensitivity.
Main Application:
1. Used for welding all kinds of 500MPa structural steel parts.
2. Used for welding all kinds of 500MPa plates and pipes.
Chemical Composition of Welding Wire (%)
C |
Mn |
Si |
S |
P |
Cu |
0.06~0.15 |
1.4~1.85 |
0.8~1.15 |
≤0.035 |
≤0.025 |
≤0.50 |
Examples of Chemical Composition of Deposited Metal (%)
C |
Mn |
Si |
S |
P |
Cu |
0.08 |
1.51 |
0.89 |
0.013 |
0.015 |
0.18 |
Mechanical Properties of Deposited Metal
Test Item |
Rm (MPa) |
ReL/Rp0.2 (MPa) |
A (%) |
KV2 (J) |
Guarantee Value |
≥500 |
≥420 |
≥22 |
≥27(-30°C) |
General Result |
558 |
472 |
27 |
98 |
Reference Current (DC+)
Wire Size(mm) |
Welding Current(A) |
CO2 Flow Rate(L/min) |
φ0.8 |
50~100 |
15 |
φ1.0 |
50~220 |
15~20 |
φ1.2 |
80~350 |
15~25 |
φ1.6 |
170~550 |
20~25 |
Welding Position
