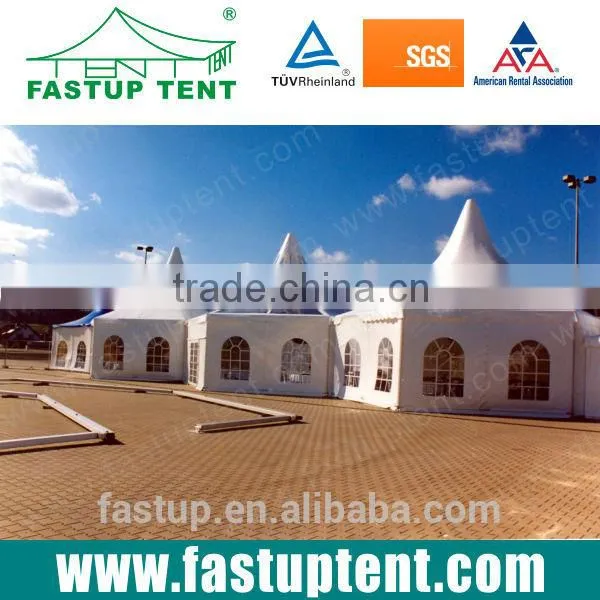

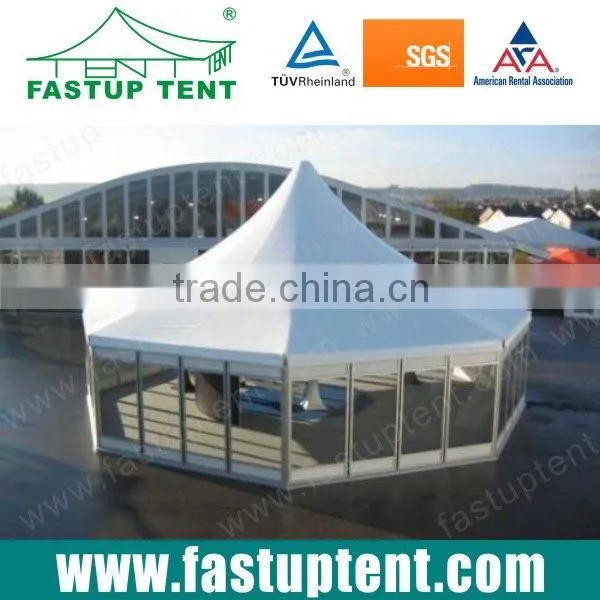

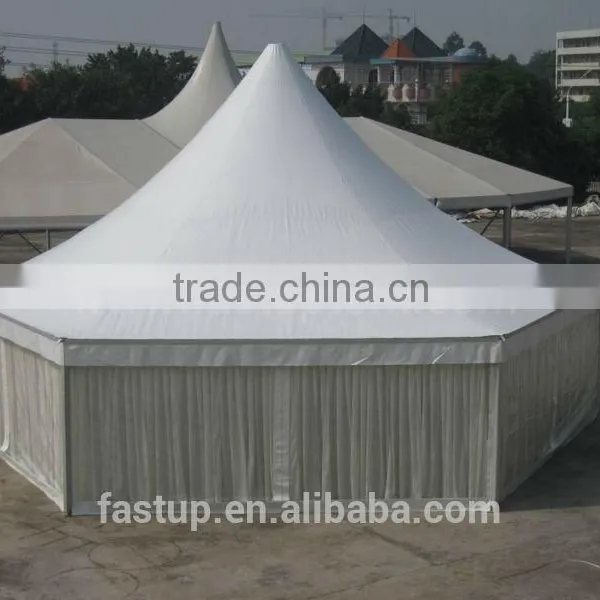

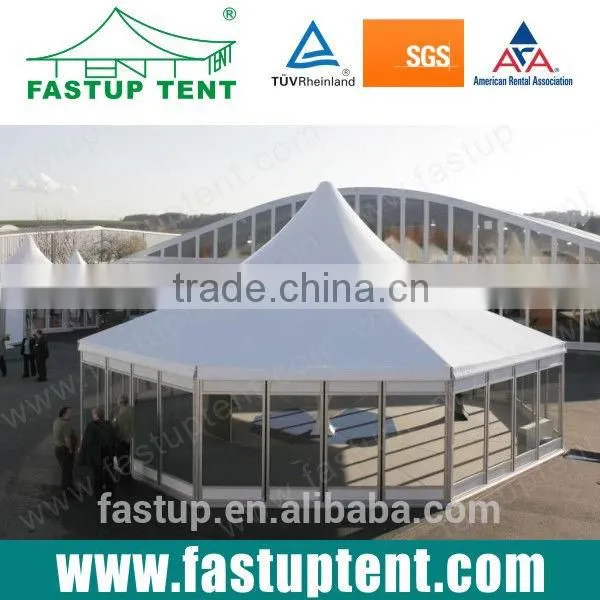

Hexagonal pagoda tent
The hexagonal pagoda tent could be widely used as the Event, wedding , party , exhibition tent, trade show tent, trade fair tent, conference tent, festivals celebration tent, restaurants tent, concert tent, corporate events tent etc.

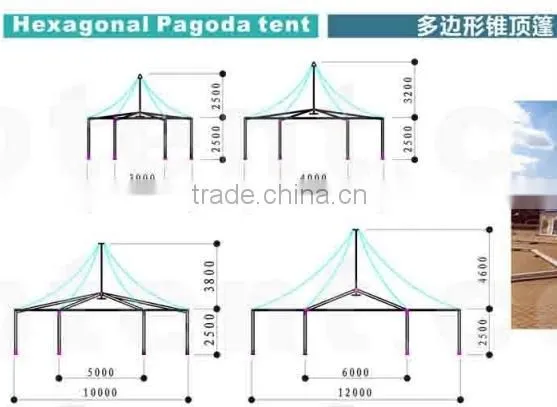

Dimensions of hexagon pagoda tent
1. Diagonal: 6m, 8m, 10m, 12m
2. Eave height:2.5m
3. Ridge height:5m,5.7m,6.3m,7.1m
4. Roof Slope: 18 °
5. Truss profile: 100X48mm / 122x68mm
6. Eave rail profile: 65x65mm / 122x68mm
| Type | Diagonal | Eave height | Ridge height | Roof pitch | Truss profile | ||||
| mm | inch | mm | inch | mm | inch | mm | inch | ||
| PHT6/2500 | 6000 | 236.22 | 2500 | 98.43 | 5000 | 196.85 | 18 | 100x48 | 3.94x1.06 |
| PHT8/2600 | 8000 | 314.96 | 2500 | 98.43 | 5700 | 224.41 | 18 | 100x48 | 3.94x1.06 |
| PHT10/2600 | 10000 | 393.70 | 2500 | 98.43 | 6300 | 248.03 | 18 | 122X68 | 4.8X2.68 |
| PHT12/3000 | 12000 | 472.4 | 2500 | 98.43 | 7100 | 279.53 | 18 | 122X68 | 4.8X2.68 |
Frame Material of hexagonal tent.
Hard pressed extruded aluminum 6061/T6,surface galvanized steel.
aluminum frame structure is lighter for installation and transporation, faster to remove,
help you to reduce the cost of labor.
Our structure is sames as Losberger in Germany.
The lifespan for aluminum frames is more than 15 years.
Fabric of hexagonal pagoda tent.
Double PVC coated polyester texitile,UV resistant,
frame retardant to DIN4102,B1,M2 UV resistant,waterproof.
Fabric for roof are both 850gsm blockout PVC coated fabric
Fabric for sidewall are both 650gsm translucent.
Wind speed and snow loading
The MAX. allowed wind speed for hexagonal tent :100KM/H.
The security and variability of our pagoda tents have reached the standard of as world's leading manufacturers in Germany.
The MAX.allowed snow loading for hexagonal tent:0.3KN/M2.
It's applicable to all the countries in the world

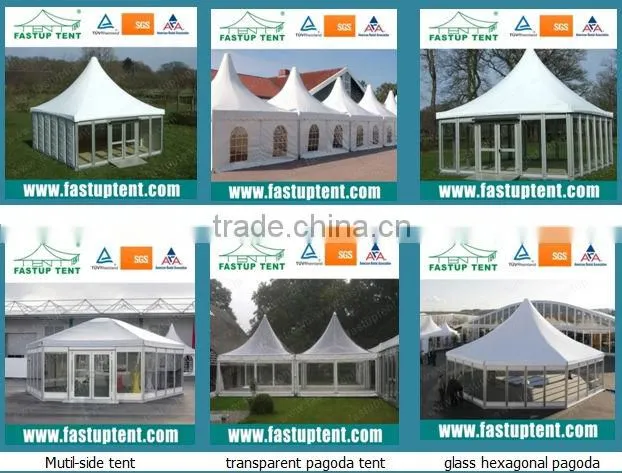

More pagoda tent style could be choosen
Hexagonal pagoda Tent accessories
1.The small party tent can decorate with roof lining and curtain, to make the tent more elegant and beautiful.
2.The small party tent can decorate with wooden floor on ground to make it more classic.
3.The small party tent can equip glass door, glass wall, glass window, ABS hard wall, steel sandwich wall.
4.ground anchors, anchor puller, weight plate, sidewalls with PVC-clear window, rain gutters.
5.decoration ceilings and inside curtain, ramp, transport rack.

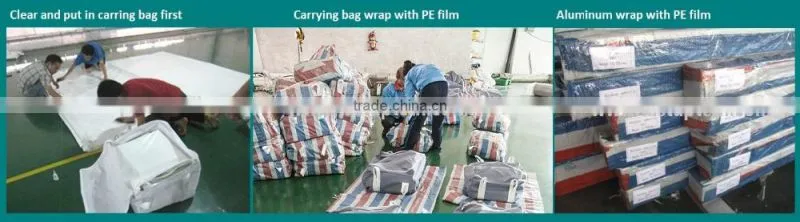

The Pakage for the tent
Fastup tent factory photo
Full tent range
