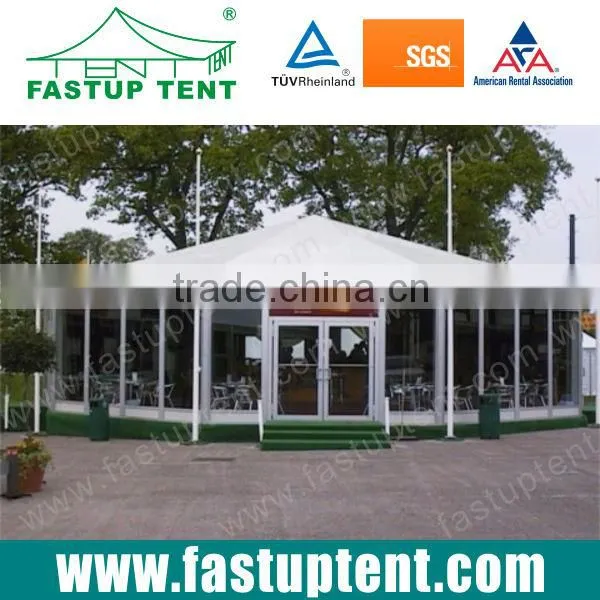

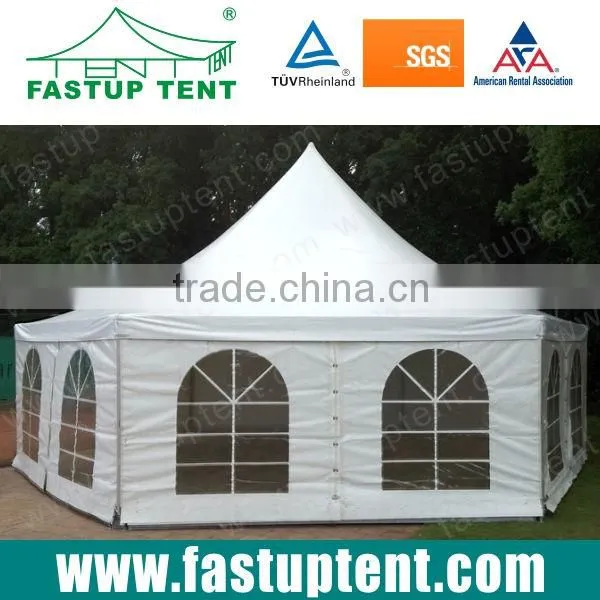

Multi-side pagoda tent
The multi-side pagoda tent could be widely used as the Event, wedding , party , exhibition tent, trade show tent, trade fair tent, conference tent, festivals celebration tent, restaurants tent, concert tent, corporate events tent etc.

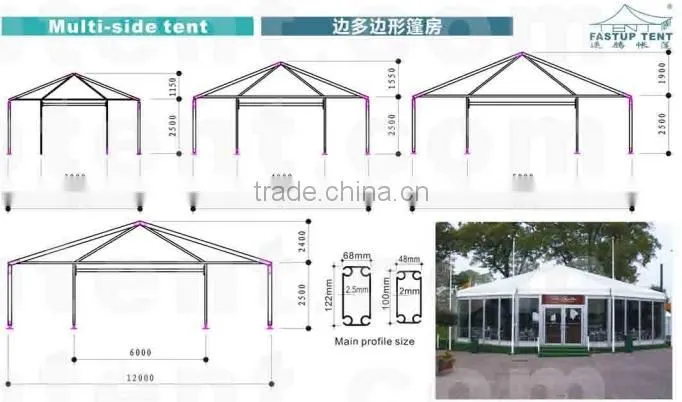

Dimensions
1. Diagonal: 6m, 8m, 10m, 12m
2. Eave height:2.5m
3. Ridge height:3.65m,4.05m,4.4m,4.9m
4. Roof Slope: 22 °
5. Truss profile: 82x48mm / 122x68mm
6. Eave rail profile: 50x40mm / 102x85mm
| Type | Diagonal | Eave height | Ridge height | Roof pitch | Truss profile | ||||
| mm | inch | mm | inch | mm | inch | mm | inch | ||
| PHT6/2500 | 6000 | 236.22 | 2500 | 98.43 | 3650 | 143.70 | 22 | 82x48 | 3.23x1.06 |
| PHT8/2600 | 8000 | 314.96 | 2500 | 98.43 | 4050 | 159.45 | 22 | 82x48 | 3.23x1.06 |
| PHT10/2600 | 10000 | 393.70 | 2500 | 98.43 | 4400 | 173.23 | 22 |
122X68 | 4.8X2.68 |
| PHT12/3000 | 12000 | 472.44 | 2500 | 98.43 | 4900 | 192.91 | 22 | 122X68 | 4.8X2.68 |
Frame material for multi-side pagoda tent
Mutil-side pagoda tent use hard pressed extruded aluminum 6061/T6,surface galvanized steel.
Mutil-side pagoda tent aluminum frame structure is lighter for installation and transporation, faster to remove,help you to reduce the cost of labor.
Our Mutil-side pagoda tent structure is same as Losberger in Germany
The lifespan for aluminum frames is more than 15 years.
Fabric material for multi Mutil-side pagoda tent.
Double PVC coated polyester texitile,UV resistant,
Fabric for Mutil-side pagoda tent roof are both 850gsm blockout PVC coated fabric
Fabric for Mutil-side pagoda tent sidewall are both 650gsm translucent
flame retardant to DIN4102,B1,M2 UV resistant,waterproof.
The lifespan for PVC coated fabric is 8 years.
Maximum allowed wind load and snow load
The MAX. allowed wind speed for Mutil-side pagoda tent :100KM/H.
The security and variability of our multi tents have reached the standard of as world's leading manufacturers in Germany.
The MAX.allowed snow loading for multi tent:0.3KN/M2.
It's applicable to all the countries in the world
Tent accessories
1.roof lining and curtain, to make the tent more elegant and beautiful.
2.wooden floor on ground to make it more classic.
3.glass door, glass wall, glass window, ABS hard wall, steel sandwich wall.
4.ground anchors, anchor puller, weight plate, sidewalls with PVC-clear window, rain gutters.
5.decoration ceilings and inside curtain, ramp, transport rack.
Fastup tent factory photo

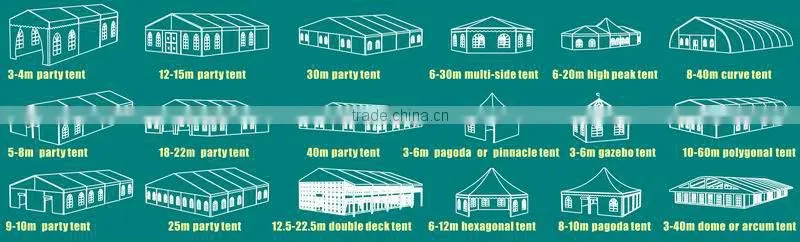

Party tent full range
