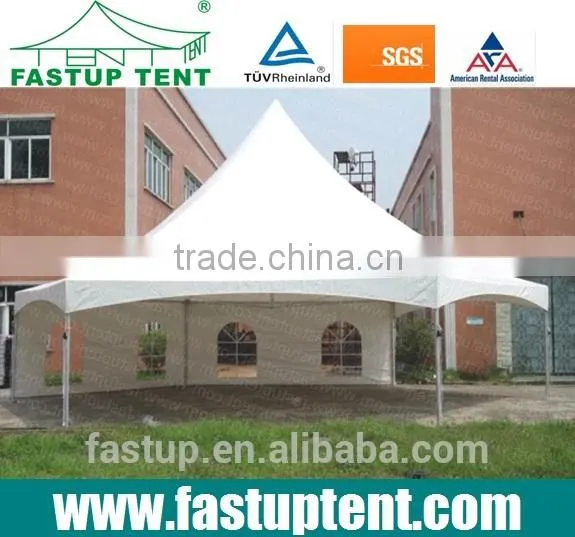

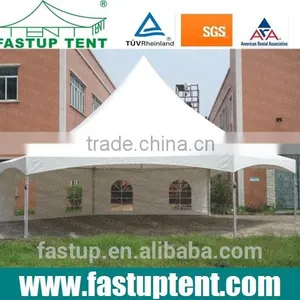

Hexagonal tent
The hexagonal pagoda tent could be widely used as the Event, wedding,party,exhibition tent, trade show tent, trade fair tent, conference tent, festivals celebration tent, restaurants tent, concert tent, corporate events tent etc.
Dimensions
1. Diagonal: 6m, 8m, 10m, 12m
2. Eave height:2.5m
3. Ridge height:5m,5.7m,6.3m,7.1m
4. Roof Slope: 18 °
5. Truss profile: 100X48mm / 122x68mm
6. Eave rail profile: 65x65mm / 122x68mm
| Type | Diagonal | Eave height | Ridge height | Roof pitch | Truss profile | ||||
| mm | inch | mm | inch | mm | inch | mm | inch | ||
| PHT6/2500 | 6000 | 236.22 | 2500 | 98.43 | 5000 | 196.85 | 18 | 100x48 | 3.94x1.06 |
| PHT8/2600 | 8000 | 314.96 | 2500 | 98.43 | 5700 | 224.41 | 18 | 100x48 | 3.94x1.06 |
| PHT10/2600 | 10000 | 393.70 | 2500 | 98.43 | 6300 | 248.03 | 18 | 122X68 | 4.8X2.68 |
| PHT12/3000 | 12000 | 472.44 | 2500 | 98.43 | 7100 | 279.53 | 18 | 122X68 | 4.8X2.68 |
Frame and Fabric Material of hexagonal tent
All frames are made by hard pressed extruded aluminum 6061/T6,surface galvanized steel.
The lifespan for aluminum frames is more than 15 years.
All covers are made by double PVC coated polyester texitile,UV resistant,
frame retardant to DIN4102,B1,M2 UV resistant,waterproof.
The lifespan for PVC coated fabric is 8 years
Maximum wind speed and snow load
The MAX. allowed wind speed for hexagonal tent :100KM/H.
The security and variability of our pagoda tents have reached the standard of as world's leading manufacturers in Germany.
The MAX.allowed snow loading for hexagonal tent:0.3KN/M2.
It's applicable to all the countries in the world
Hexagonal Tent accessories
1..roof lining and curtain, to make the tent more elegant and beautiful.
2.wooden floor on ground to make it more classic.
3.glass door, glass wall, glass window, ABS hard wall, steel sandwich wall,
4.ground anchors, anchor puller, weight plate, sidewalls with PVC-clear window,
5.rain gutters, decoration ceilings and inside curtain, ramp, transport rack.
