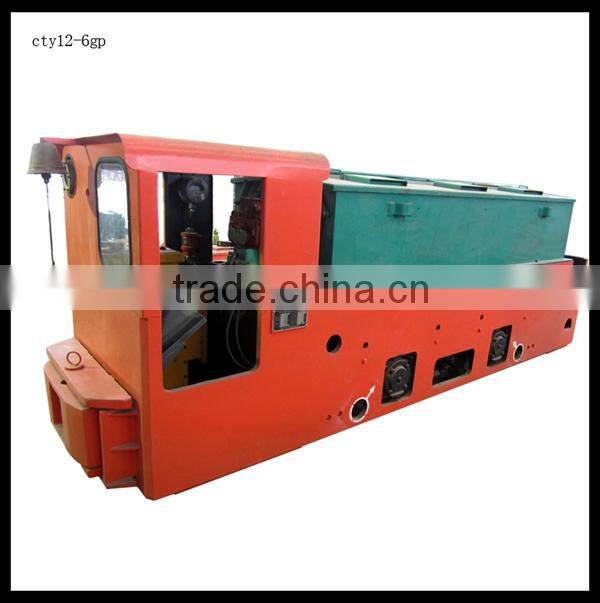

12 Ton Explosion-proof Electric Locomotive, Underground Power Equipment For Mining
Product Description
1. Two kinds of speed regulation --- chopping speed regulation and frequency speed regulation
2. Its electrical equipment is all flame-proof one
3. Adopts three braking method: mechanical braking, electrical braking and air braking
4. Driven by dual motor, and transmitted by two-stage gear system
5. Double end cabs can be developed at customer’s request
Main Parameters
Model |
CTY12/6.7.9GP |
|
Adhesive Weight(t) |
12 |
|
Railway Gauge(mm) |
600/762/900 |
|
Hour |
Traction(KN) |
16.48 |
Speed(km/h) |
8.7 |
|
Max. Traction(KN) |
29.43 |
|
Voltage(V) |
192 |
|
Battery Capacity Ah(per 5 hours) |
560 |
|
Power Per Hour(kw) x Set |
22x2 |
|
Max. Running Speed(km/h) |
17.4 |
|
Shape and size(mm) |
Length |
5100 |
Width |
1050/1212/1350 |
|
Height |
1600 |
|
Traction Height |
320/430 |
|
Wheelbase |
1220 |
|
Wheel Diameter |
Ø680 |
|
| Min. Turning Radius(m) | 10 |
|
Speed Control |
AC frequency change |
|
Brake Mode |
Mechanical , Electric or air |
|
Transmission |
two-stage gear
|
|

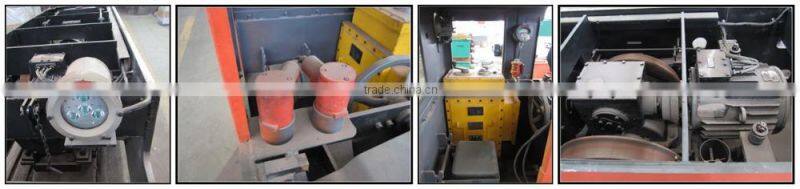

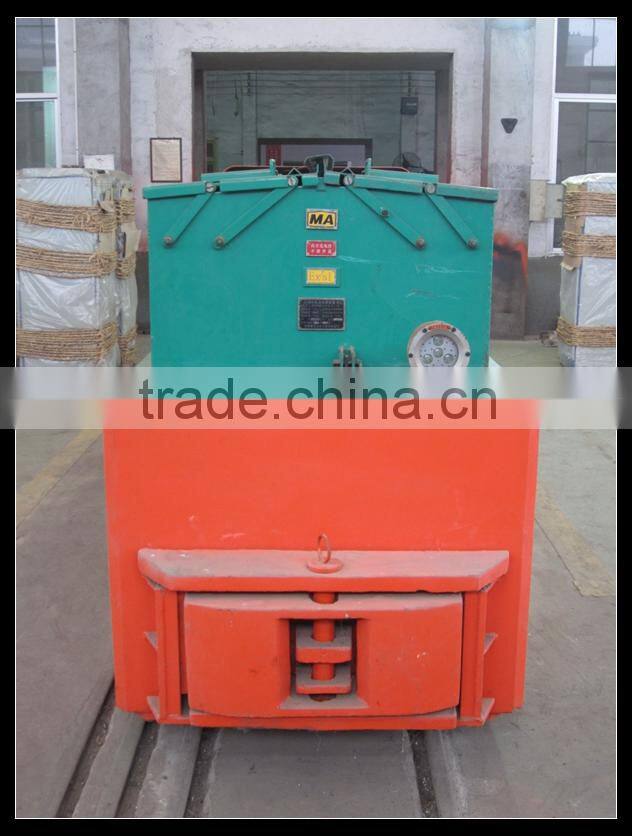

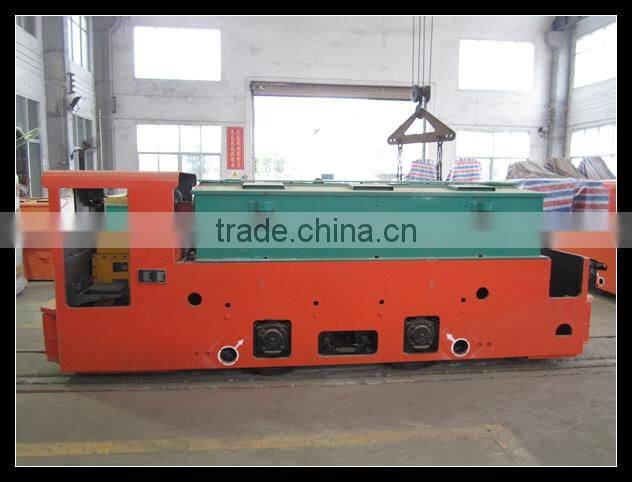

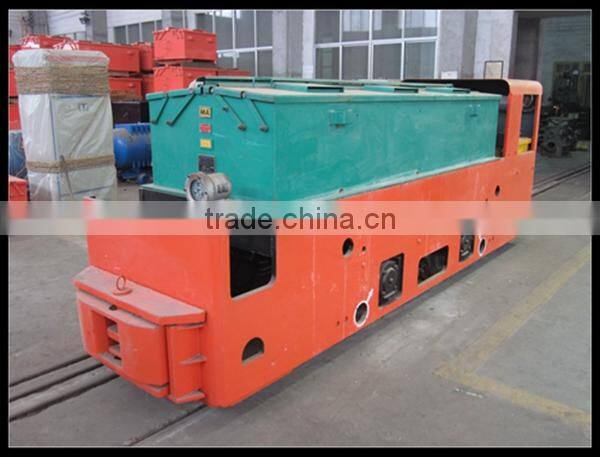

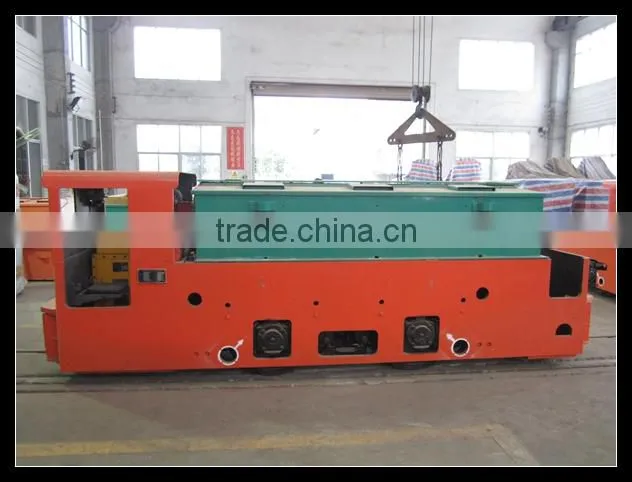

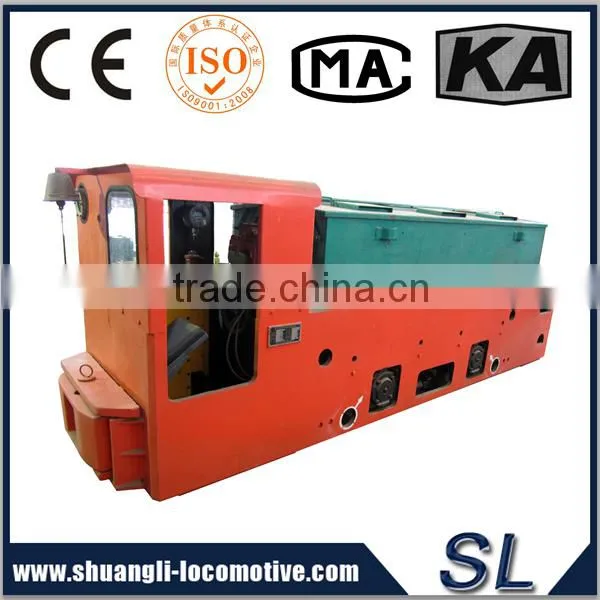

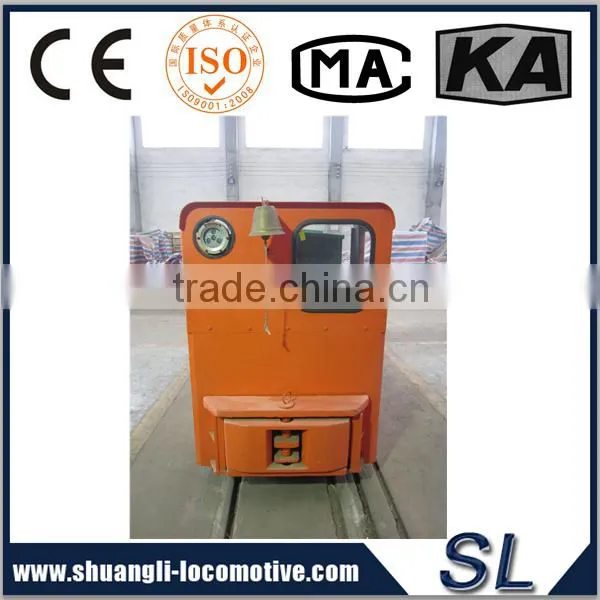

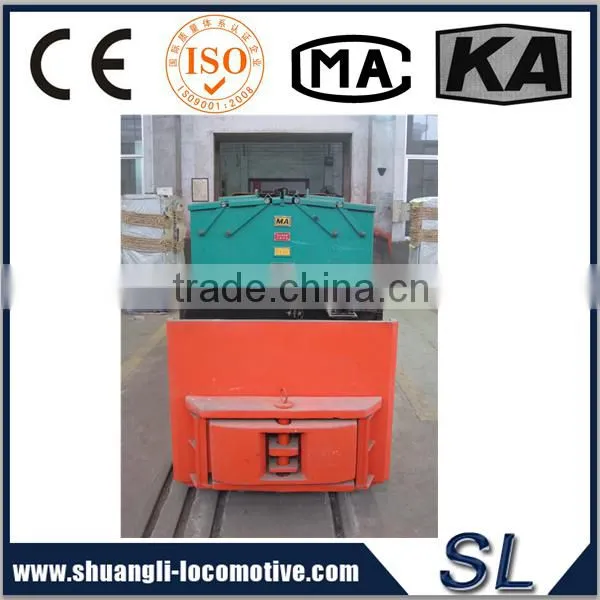

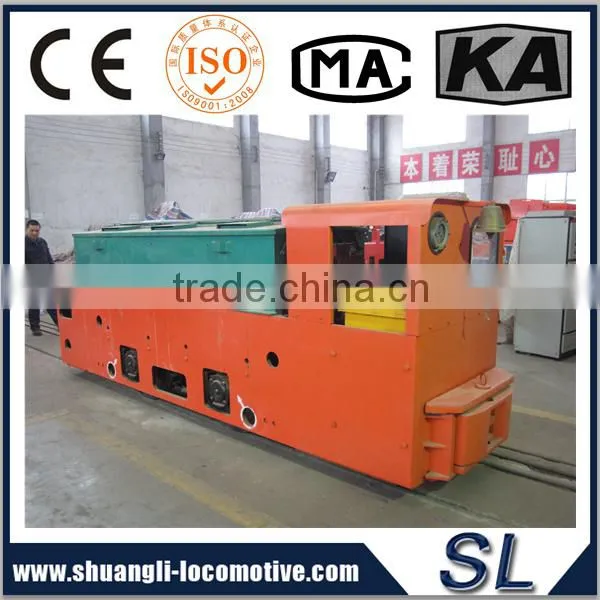

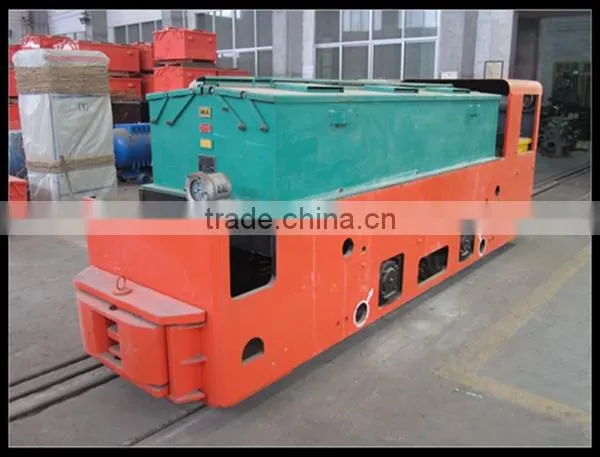

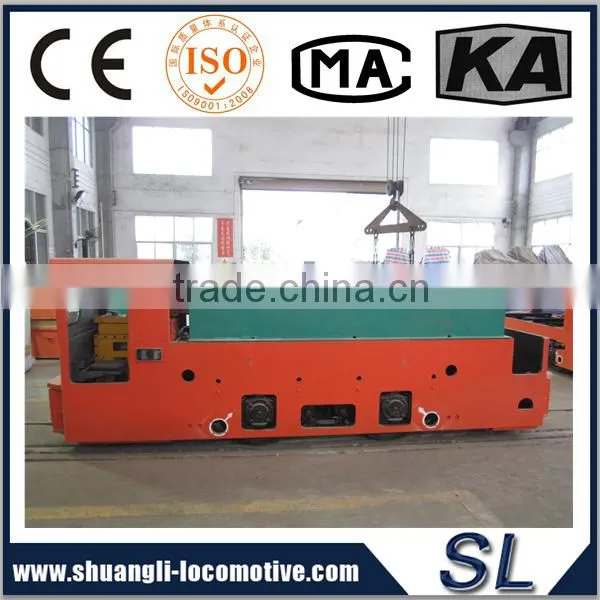

Detailed Image
Application & Advantages
a. Rational construction, reliable explosion-proof characteristic
b. Smooth activation, large traction, fast speed and flexible operation
c. High efficiency and energy saving and easy maintenance
d. Wide range of application which can be used in high gassy mines of annual output of 120t

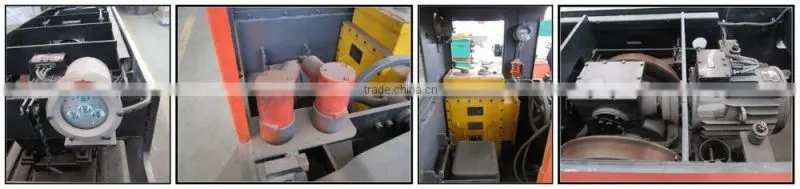

Locomotive Accessories

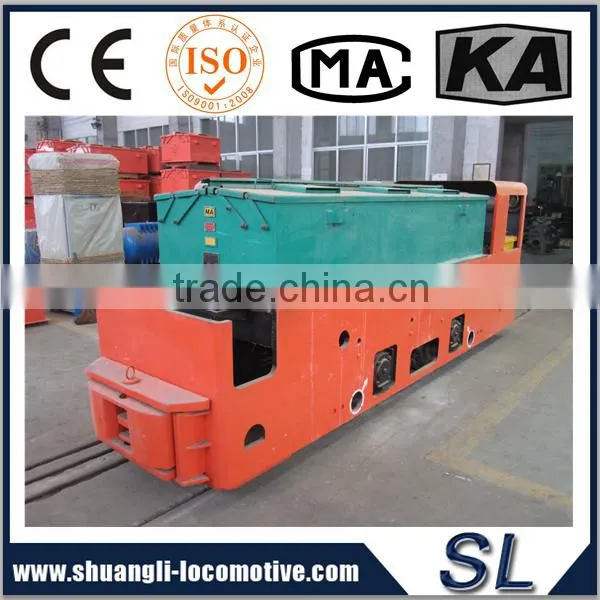

Certificates
Packaging & Shipping
We will ship the locomotive by sea with professional wooden package waterproof cover.
Company Information
Shuangli Locomotive Equipment (Shenzhen) Co., Ltd, located in Shenzhen, Guangdong, is specialized in the production of industrial and mineral electric vehicle, its ancillary equipment and accessories. Our main products are mineral over-head line electric vehicle, explosion-proof special battery electric vehicle and accessories.
We always adhere to technology innovation, establishing credibility, and people oriented policy, and pursue the quality first and customer first tenet. We have established a complete and stable quality assurance system, and gradually form modern management mode. We have passed through ISO9001-2008 quality management system certification, mean while nearly 50 models of products have "MA" and "KA" certification.
Order requirements
1. Product name, Item No./Spec, voltage, quantity, delivery time, etc have to be indicated clearly.
A. If ordering 10 ton, 900mm track gauge, 550V, chopping speed regulation with wing plate trolley locomotive, it needs to be written as such, CJY10/9GB-550C.
B. If ordering 8 ton, 600mm track gauge, 140V, frequency speed regulation with dual driver cabs explosion-proof locomotive, it needs to be written as such, CTL8/6GP-140.
2. Height from wing plate to rail level and inclination angle of wing plate need to be marked for the locomotive with wing plate.
3. Any special requirements could be negotiated when ordering, and upon confirmation by both sides, such requirements need to be written in the ordering contract.
