2.5 Ton Explosion-proof Electric Locomotive, Underground Power Equipment For Mining
Product Description
1. Battery electric locomotive and explosion-proof battery locomotive are the 2 kinds for this 2.5 tonner electric locomotive safety based on its applicable condition
2. Using two braking methods: Mechanical braking and electric braking
3.Three kinds of speed regulation --- resistance speed regulation, chopping speed regulation, and frequency speed regulation.
Main Parameters
Model |
CAY2.5/6G |
|
Adhesive Weight(t) |
2.5 |
|
Railway Gauge(mm) |
600 |
|
Hour |
Traction(KN) |
2.55 |
Speed(km/h) |
4.54 |
|
Max. Traction(KN) |
6.13 |
|
Voltage(V) |
48 |
|
Battery Capacity Ah(per 5 hours) |
308 |
|
Power Per Hour(kw) x Set |
3.5x1 |
|
Max. Running Speed(km/h) |
10 |
|
Shape and size(mm) |
Length |
2330 |
Width |
914/1076/1214 |
|
Height |
1550 |
|
Traction Height |
320 |
|
Wheelbase |
650 |
|
Wheel Diameter |
ø460 |
|
| Min. Turning Radius(m) | 5 |
|
Speed Control |
Resistance |
|
Brake Mode |
Mechanical or Electric |
|
Notes |
common safety type |
|

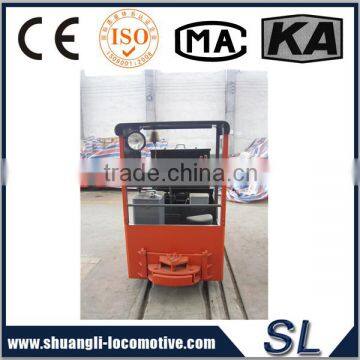

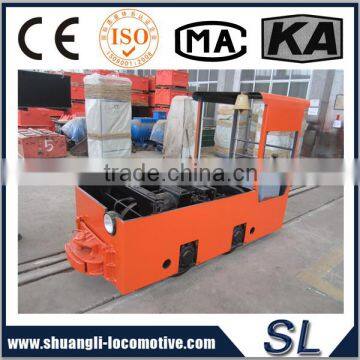

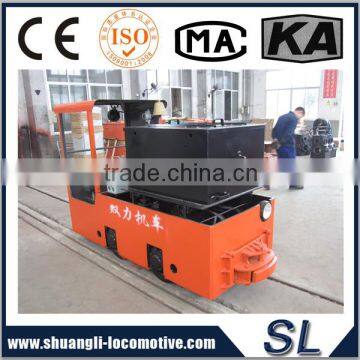

Detailed Image
Application & Advantages
a. small overall dimensions,short wheel base, good bodywork rigidity, huge traction
b. simple mechanism and easy maintenance
c. fast and smooth expansion brake
d. It’s designed specifically for small and medium scale mining
e. applicable to transit in branch roadway and small-scale mines,and shunt in small and medium scale mines.
Locomotive Accessories
Certificates
Packaging & Shipping
We will ship the locomotive by sea with a professional wooden package.
Order requirements
1. Product name, Item No./Spec, voltage, quantity, delivery time, etc have to be indicated clearly.
A. If ordering 10 ton, 900mm track gauge, 550V, chopping speed regulation with wing plate trolley locomotive, it needs to be written as such, CJY10/9GB-550C.
B. If ordering 8 ton, 600mm track gauge, 140V, frequency speed regulation with dual driver cabs explosion-proof locomotive, it needs to be written as such, CTL8/6GP-140.
2. Height from wing plate to rail level and inclination angle of wing plate need to be marked for the locomotive with wing plate.
3. Any special requirements could be negotiated when ordering, and upon confirmation by both sides, such requirements need to be written in the ordering contract.
