Introduction of Vertical Precast Concrete Pipe Machine

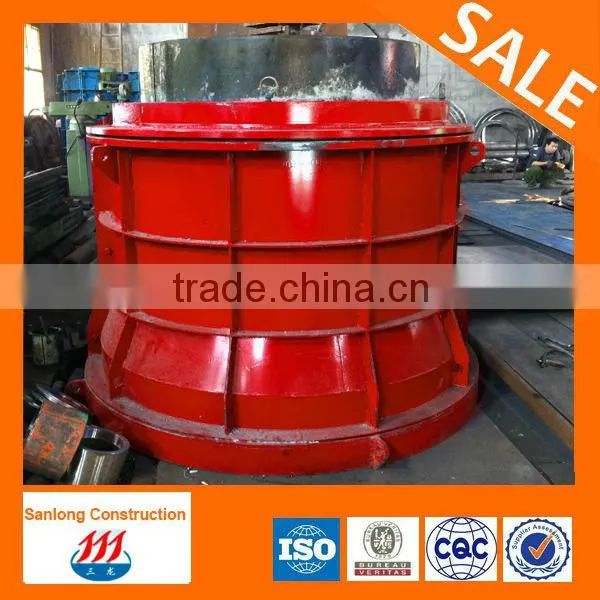

SL Vertical vibration concrete pipe mold is composed of removable steel outer mold and inner mold adhere to vibrator . Outer mold is assembled with two steel semi-circular tubes of 5mm. The semi-circular tubes is connected with bolt pins with wedges. Inner mold is a overall round cylinder and bottom diameter is a little smaller than upper diameter so that to take out the inner mold easily .
The investment for vertical vibration process which is a simple production process of concrete culvert pipes is low but flexible arrangement .During vibration, vibration bar can help concrete of pipe wall compacted and even and during reasonable vertical vibration , the vibration bar will not cause deformation , misplacement or damage of steel lantern ring, reinforced steel framework and embedded components which ensure mechanical property of concrete pipes during jacking process . For vertical vibration process , the mold can’t be released until strength of concrete is qualified . There will be no rough scratch on inner and outer wall during demolding which will decrease friction of jacking and difficulty and risk .

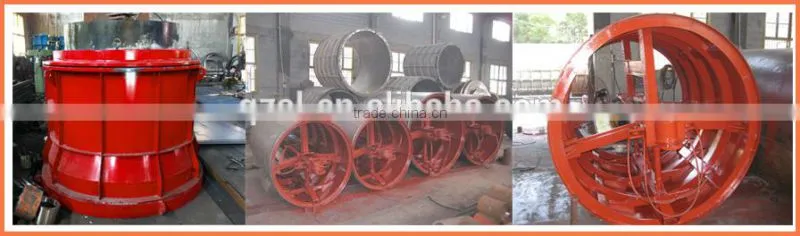

Vertical Vibration Concrete Pipe Mold is divided into three parts: Bottom Mold, outer mold and inner mold . For outer mold , it’s circular with two semicircular half molds ,inner mold is circular mold which can change diameter automatically . Bottom mold is overall precast steel casting.
Bottom mold is also called cork base which is precast steel casting. Inner mold and outer mold are placed on the bottom mold .
Inner mold is also called core mold which is also auto varying diameter round mold . For hoisting condition , inner mold diameter is smaller than pipe diameter . When pedestal base loosen the hook , under the action of weight of inner mold slings and inner transmission system weight , wedge shaped mold will stretch outward automatically , then inner mold diameter will extend to inner diameter of concrete pipe automatically . If inner mold can vary diameter automatically , manual diameter varying will be necessary .
Outer mold is two semicircular molds . Two molds are connected with fastening parts .It’s convenient to assemble and disassemble . It’s convenient to assemble two semicircular molds but no high precision and after repeated use it will deform easily . Regular inspection of outer mold is necessary and repair outer mold which not meet precision requirements to guarantee precision requirement of concrete pipes .

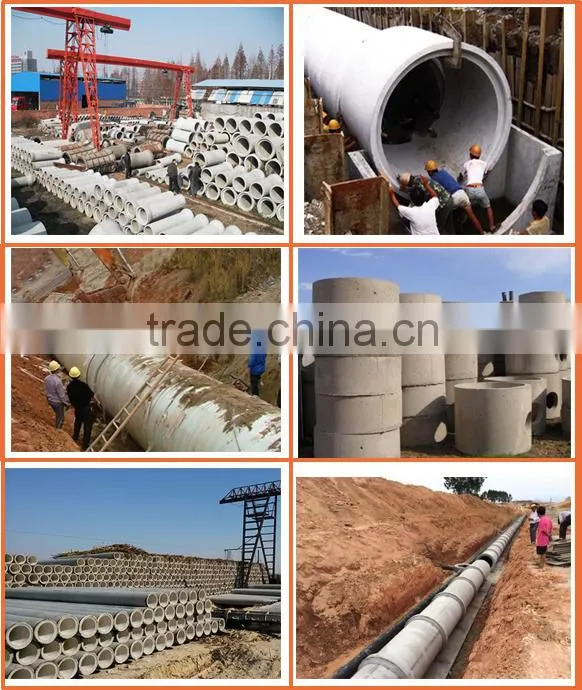

Application
Advantage
1) High intensity and beautiful shaped, used as field irrigation, motor-pumped well, small-scale pumping station, draining off water of municipal administration, highway culvert.
2) Easy maintenance and operating, high yield production about 5-6 sections per hour.

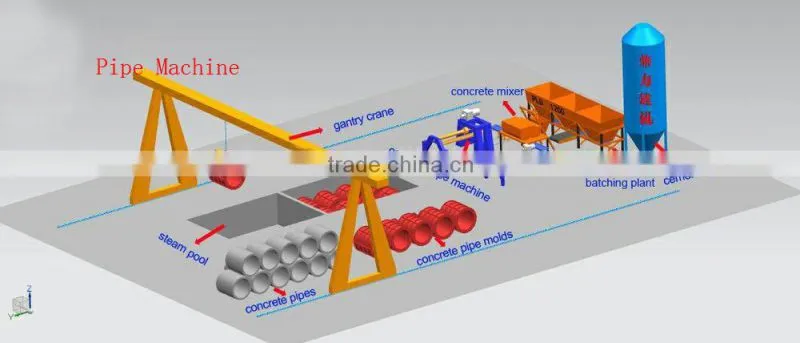

Plant Layout Plan

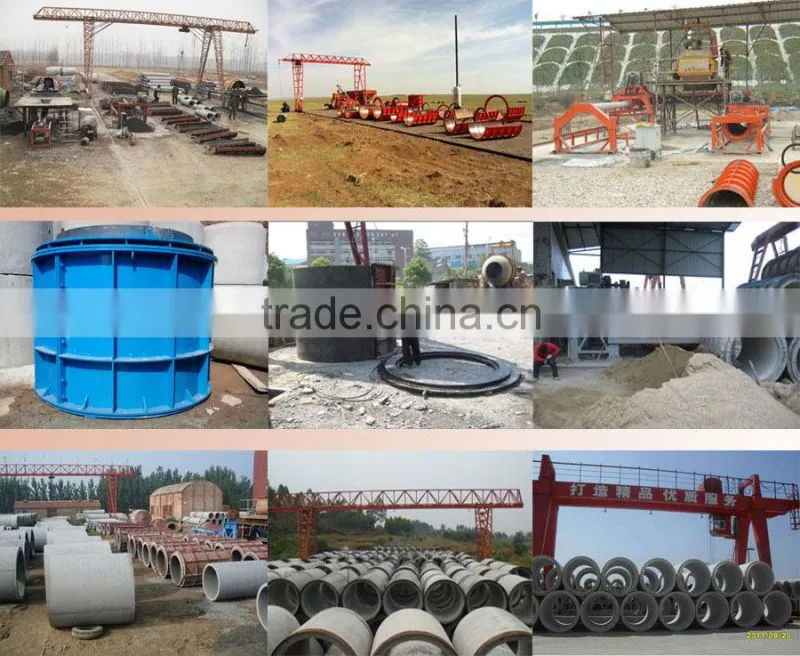

Project

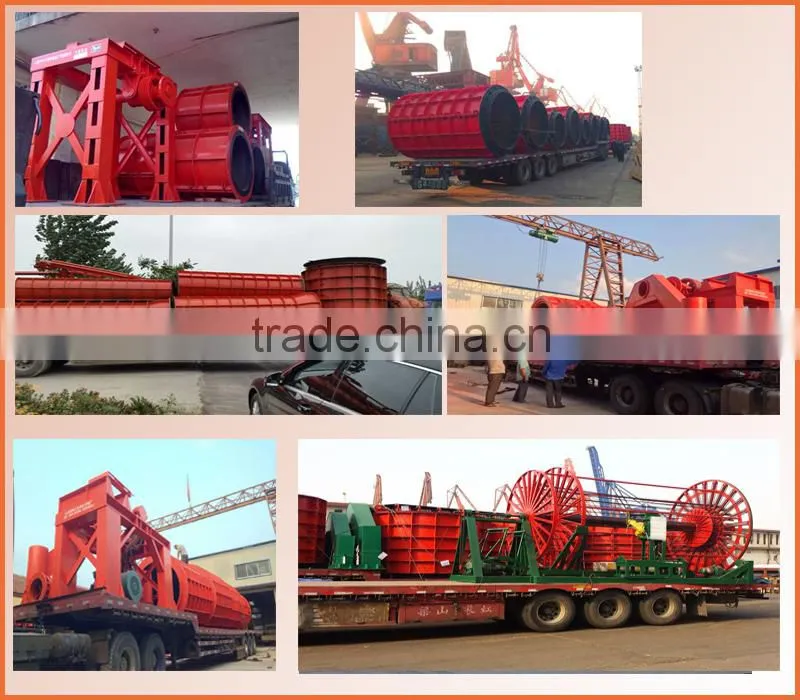

Delivery
FAQ:
1.Delivery time:within 15 days after receipt of the deposit
2.payment:30% advance payment by T/T, the balance payment by T/T .
3.Warranty: 1 year.
4.Spare parts: 1 set of the spare parts and 1set of the tools.
5.For large machine,We will supply the design layout; we will dispatch the engineer to your side for the installing machine, training your workers.
But the buyer will pay for the airtickets, the foods and the hotel.
Company Info
Qingzhou Sanlong Construction Equipment Co., Ltd is a professional manufacturer of cement equipment. For over 20 years, our company has developed many kinds of water conservancy machinery. Our cement machinery are as follows: cement pipe manufacturing machines of roller hanging type, centrifugal type and vertically vibration type concrete pipe machine.
Our company provides comprehensive services of coordinated process including choice of equipment, installation and debugging, and trial production. We can also design and manufacture special type cement equipment or molds according to customers’' requirements.
Our products have gained many technical patents and won the Third-Class Award of Scientific and Technological Progress of Shandong Province. Our products have been well sold to all over China, and exported to Europe, North America, South Africa, Asia, and the Middle East. They have been favorably received by the majority of users.
We welcome new and old customers to contact us for business.
