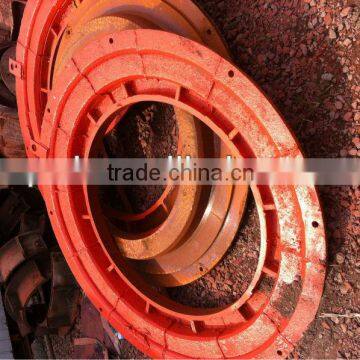

Parts of Moulds for Concrete Pipe Machine

Concrete pipe machine: Sanlong is a professional manufacturer of concrete pipe machione in CHINA. We can provide you with good quality products and competitive prices

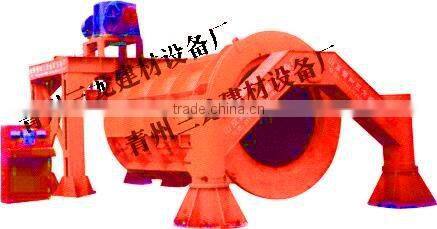

Concrete Pipe Machine:

Specification:     XG600         XG1200        XG1500

Pipe range:       300-600mm     800-1200mm    1000-1500mm

Pipe Length:      2000mm       2000mm        2000mm

Motor Power      15KW        30KW           55KW

Model of Motor:   YCT225-4B    YCT315-4A     YCT355-4A

Diameter of Roller: 140mm       173mm         325mm

Speed of Roller:   83-833 r/min   69-687 r/min    65-653 r/min

Advantage: Invironment protection, concrete materails consupion low, no serosity

Applacation: Highway curlvert, drian off water for municiple administration.

Service project of our factory

   Help the customs to estinate the saving investment of the factory which in different size. Investment feasibility report .(investment benefit analysis).

   Planning the production site of prophase, the rational  layout of different production equipment , facilities.

   The optimal matching combination of the production and subsidiary equipment.

   Provide a series of material about a whole set of operation and the pruduction technology.

   Equipment installation, debug function, until it can produce the product.

   Teach the custoners personnel operator to handle the equipment, inpart the operating essentials and the matters needed attention.

   Simple tools and accessories, we can provide the master drawing guiding the cuetomers th independent production.

   Contract the transport .(trucking, allocate cargo)
