Overview of Concrete Pipe Mold
The centrifugal concrete pipe mold is the essential mold to make the prestressed reinforcd conrete pipe with centrifugal molding. The structure of the mold is reasonable; the manufacturing technology is advanced; installationg and dismounting is very easy; enough strength and rigidity make it safe and reliable.
Technical Indexs of Concrete Pipe Mould
| Mold Diameter(mm) | Cylinder Thickness | Hooped, Longitudinal Reinforcement |
| 300~600 | 6mm | 8mm×60mm |
| 800~1000 | 8mm | 10mm×80mm |
| 1200~1500 | 10mm | 12mm×120mm |
| 1500~2000 | 10mm | 14mm×150mm |
concrete pipe proction line/ building construcion culvert pipe and drainage pipe making machine
1 mould for concrete pipe

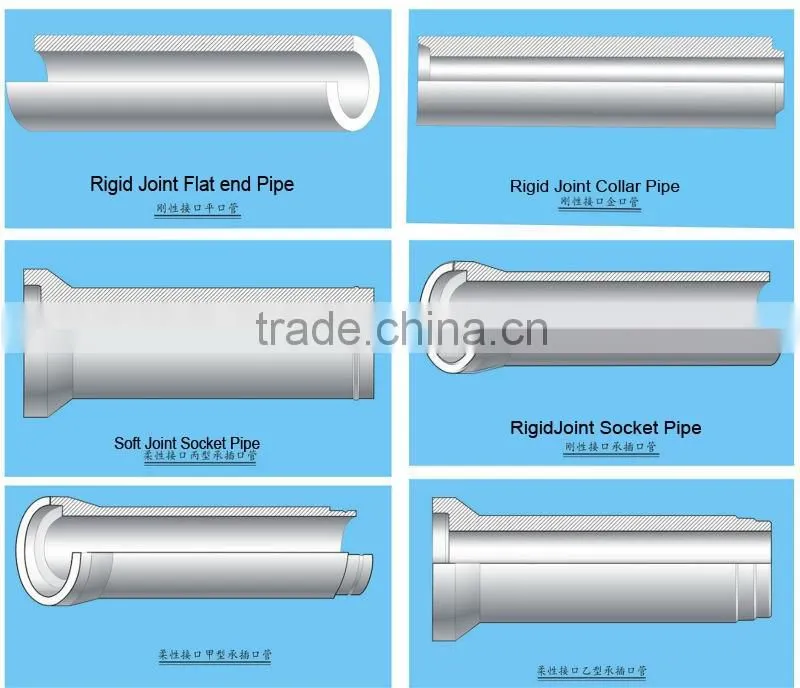

according to the shape of concrete joint, concrete pipe fall into three types:plain top,spun collars , spogit scoket.
cement concrete pipe making machine for drainage and culvert pipe
|
XG 200-600 |
XG 800-1200 |
XG 1000-1500 |
XG 4M |
Diameter |
200-600mm |
800-1200mm |
1000-1500mm |
300-2000mm |
Length |
2000mm |
2000mm |
2000mm |
1000-4000mm |
Power of Motor |
15KW |
45KW |
90KW |
110KW |
Capacity |
10-15Pc/h |
8-12Pc/h |
6-10Pc/h |
6-8Pc/h |
Labor demand without feeding machine |
4-5 |
4-5 |
4-5 |
4-5 |
Labor demand with feeding machine |
3-4 |
3-4 |
3-4 |
3-4 |
Joint |
Plain,socket and spigot,male and female |
Plain,socket and spigot,male and female |
Plain,socket and spigot, tongue and groove |
Plain,socket and spigot,tongue and groove |
