Shrink Sleeve Steam Tunnel Machine

Name: Shrink Sleeve Steam Tunnel Machine
Brand: Shengzhou
SKU: 117156191
Availability: InStock

US$ 4,000 - 6,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Application:

Beverage, Chemical, Food, Medical

Packaging Type:

Bottles, Cans, Case

Xiamen Shenzhou Packing Machine Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Xiamen China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Beverage, Chemical, Food, Medical

Packaging Type Bottles, Cans, Case

Packaging Material Plastic

Automatic Grade Automatic

Driven Type Electric

Voltage 380V, 50HZ, 3PH

Power 18KW

Place of Origin Fujian, China

Brand Name Shengzhou

Model Number SZ SST200A

Weight 150 KGS

Certification CCC

After-sales Service Provided Overseas service center available

Shrink Sleeve Steam Tunnel Machine

Features

Engineered for the application of heat shrinkable sleeve labels and tamper evident banding
Excellent option for flammable or under pressure product
Affordable machine for low speed operations up to high speed bottling line
Virtually eliminates the risk of container distortion, particularly well suited for full body shrink labels
PVC, PETG, OPS and PLA films compatible
High reliability & inexpensive to maintain throughout its long service life
Heavy gauge & industrial durability Stainless Steel structure
Shrinkage capability 100 BPM up to 700 BPM depend on model
Built-in or external Steam Generator

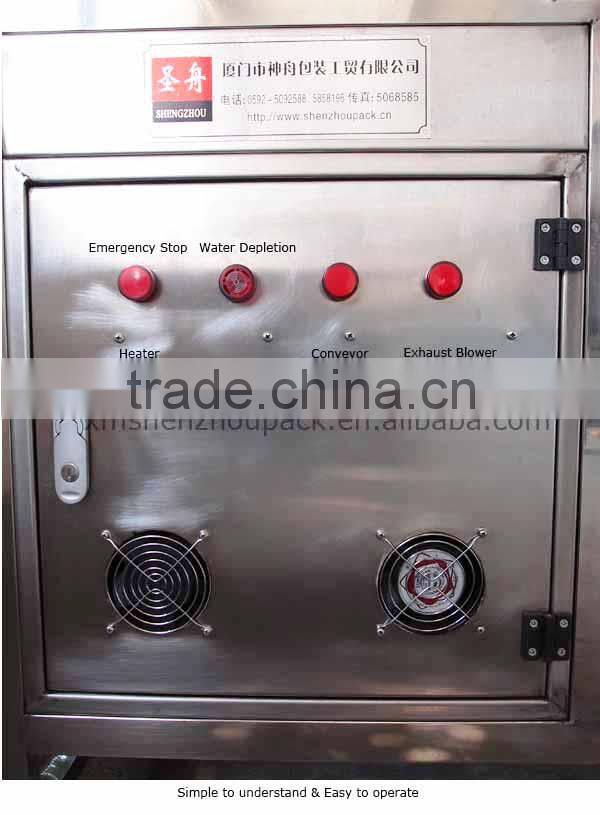

2 Emergency Stop buttons to ensure maximum safety to operators
11 standard models for you to choose from
Customized model to specific requirement available on request

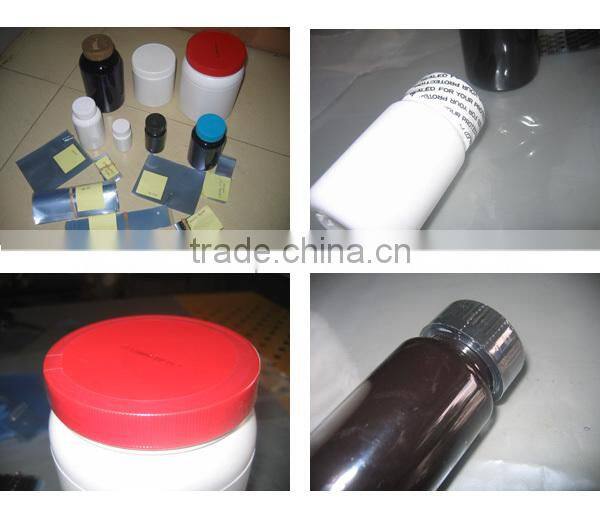

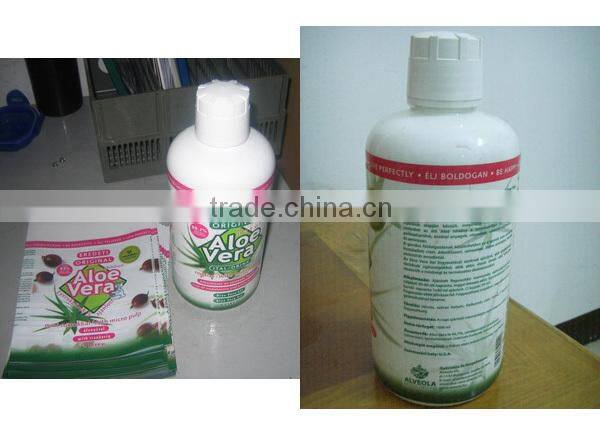

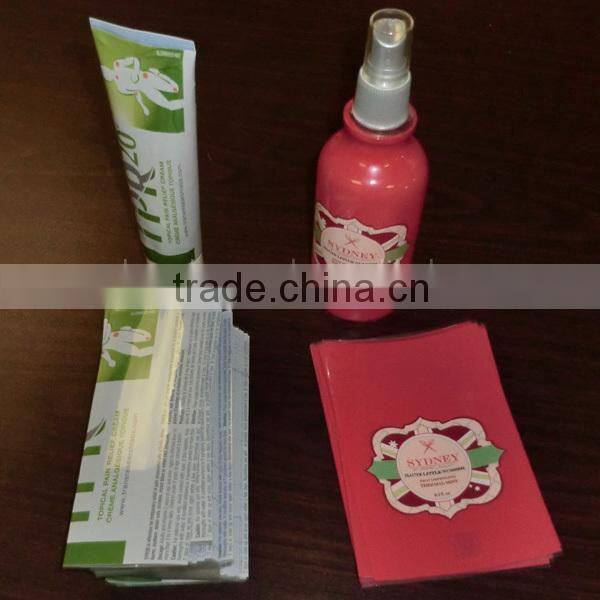

Samples

Specifications

Machine

Popular Models

Model No.	Chamber (LxWxH)	Containers Size, Maximum	Exhaust Blower	Thermo-Shield	Steam Generator	Steam Nozzle Pipe Line	Working Speed
SZ SST200	1200 x 200 x 320 MM 47.24 x 7.87 x 12.6 Inch	Diameter 150 MM,5.9 Inch Height 300 MM,11.8 Inch	Yes	Yes	Built-in	6	600 BPM
SZ SST200A	1200 x 200 x 320 MM 47.24 x 7.87 x 12.6 Inch	Diameter 150 MM,5.9 Inch Height 300 MM,11.8 Inch	No	No	No	4	600 BPM
SZ SST300	1200 x 200 x 370 MM 47.24 x 7.87 x 14.57 Inch	Diameter 150 MM,5.9 Inch Height 350 MM, 3.8 Inch	Yes	Yes	Built-in	6	800 BPM
SZ SST400	1700 x 200 x 370 MM 66.9 x 7.87 x 14.47 Inch	Diameter 150 MM,5.9 Inch Height 350 MM,13.8 Inch	Yes	Yes	External	8	1,000 BPM
Customized models available on your specific requirement. All that you need to do is to send us several containers along with with Shrink Sleeve Labels. - You provide containers, we do the rest!
