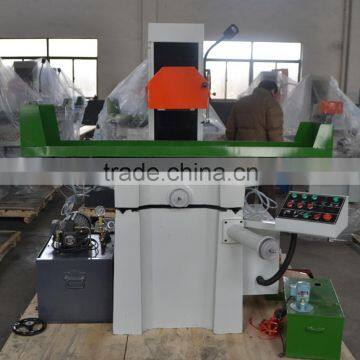

INT'L "OHA" Brand MY4080 Hydraulic Surface Grinding Machine ,
High Quality Vertical Surface Grinder Machine, Griding Machine
Characteristics of machine tools
1. The machine is reasonable in structure, good rigidity, beautiful appearance, convenient operation.
2. Using precision plastic guide surface and precision scraping, grinding imported hydraulic transmission, drive by synchronous.
3. The main mechanical valve is a special valve grinder, which is divided into two parts, the mechanical commutation control and throttle control. Throttle control part and unloading function, can realize the station start and stop.
4. Grinding can be all kinds of plane and complex shaped surface, suitable for motor without grinding the feed, according to user needs with a permanent magnet sucker or electromagnetic sucker.
Technical Datas for Grinder MY4080 Grinding Machine Specifications, Grinder Parts
Model |
Unit |
MY4080 |
MY40100 |
MY40125 |
Max workpiece to be ground |
mm |
800*400*405 |
1000*100*405 |
1250*400*405 |
Max table vertical movement |
mm |
820 |
1020 |
1270 |
Front and rear wheel feed |
mm |
440 |
440 |
440 |
Distance from table surface to spindle center |
mm |
580 |
580 |
555 |
Max work load |
kg |
400 |
400 |
450 |
Number of T-Slot |
mm*n |
18*3 |
18*3 |
18*3 |
Table speed |
m/min |
0-26 |
0-26 |
0-26 |
Before and after automatic feed (CVT) |
mm |
0.5-20 |
0.5-20 |
0.5-20 |
Front and rear wheel feed |
mm |
0.02/Graduation 4/revolution |
0.02/Graduation 4/revolution |
0.02/Graduation 4/revolution |
Wheel size (dia*width*bore) |
mm |
350*32*127 |
350*32*127 |
350*32*127 |
Spindle speed |
r/min |
1450 |
1450 |
1450 |
Each ring of lifting weight tuning mechanism |
mm |
0.04 |
0.04 |
0.04 |
Fine tuning mechanism grid feed rate |
mm |
0.001 |
0.001 |
0.001 |
Spindle motor |
kW |
5.5 (Y132S-4 B5) |
5.5 (Y132S-4 B5) |
5.5 (Y132S-4 B5) |
Machine size (L*W*H) |
mm |
2260*1790*1917 |
2260*1790*1917 |
3100*1790*1917 |
Packing size (L*W*H) |
mm |
2400*1990*2180 |
2800*1990*2180 |
3300*1990*2180 |
N.W./G.W. |
Kg |
3000/3300 |
3800/4200 |
4200/4600 |

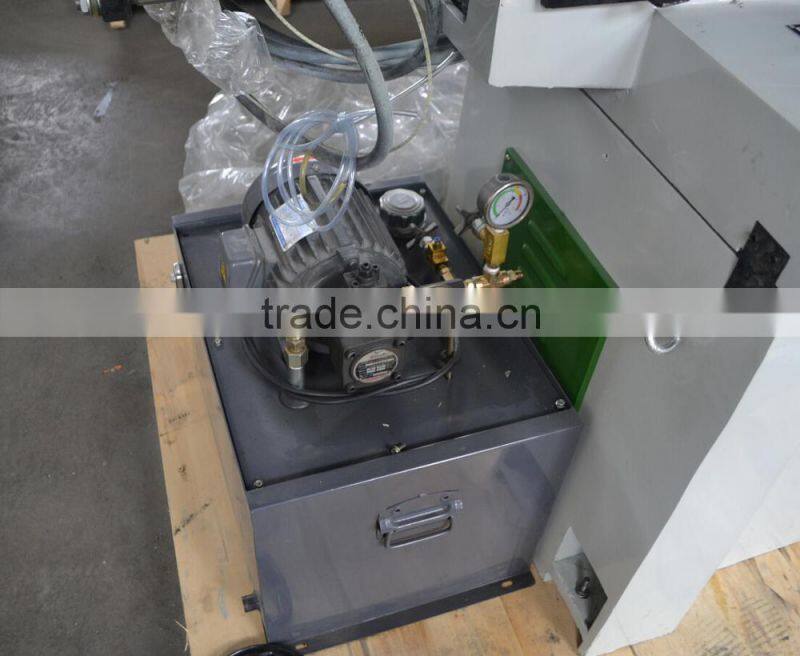

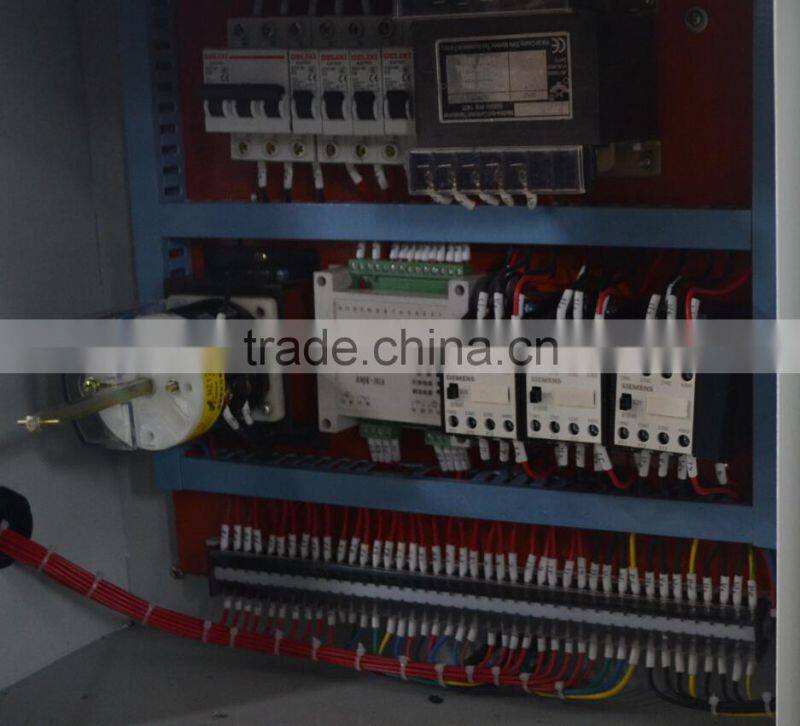

Details Photos for Grinder MY4080 Grinding Machine Specifications, Grinder Parts
Color |
Any color is available |
Logo |
Customized Logo for OHA Brand Grinder MY4080 Grinding Machine Specifications, Grinder Parts |
MOQ |
Small MOQ,1 SET for OHA Brand Grinder MY4080 Grinding Machine Specifications, Grinder Parts |
Delivery Time |
(1) 30-60 days –If you want to customize your request (2) 25 days – For our Standard |
OEM Accepted |
Yes |
Certification available |
Yes |
CNC System |
Optional |
Packing Details |
20GP, 40GP, 20 OT or LCL |
Production Capacity |
500/set OHA Brand Grinder MY4080 Grinding Machine Specifications, Grinder Parts per month |
Payment Term |
L/C, T/T, D/A, WESTERN UNION, MONEY GRAM |
Advantage
1. Competitive price: It is can meet your budget and best-selling business very well.
2. OEM Accepted: We can produce any your request design.
3. Good Service: We treat clients as friends.
4. Good Quality: We have strict quality control system. Good reputation in the market.
5. Fast & Delivery: We have big discount from forwarder (Long Contract).
Our Innovation
Quality & Service: At OHA, our #1 priority is providing our clients with great quality products and superior customer service. |
Quick lead Time: We’re dedicated to providing quickest turn-around times and work hard to ensure that all of your deadlines are met. |
Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the saving over to you! |
Brand Awareness: The goal of any strong brand is achieve a level of awareness that instills the idea of quality and value into all of your potential customers. |
Special Offers:In order to maintain our competitive edge, we are constantly running special offers on our Best –selling press brake, forging equipment goods and design services. Contact our sales term to see how we can help you save a lot of money. |
General Order Information
We take great pride in our work and in the wide variety of products that we offer. We are experienced in servicing the Southeast Asia market, South America, European market and Africa market. Please be aware that our production lead times depend on specific items and item quantities.
We take great pride in our work and in the wide variety of products that we offer. We are experienced in servicing the Southeast Asia market, South America, European market and Africa market. Please be aware that our production lead times depend on specific items and item quantities.
OHA INDUSTRY & TRADE (SHANGHAI) CO., LTD. is a leading Chinese sheet metal processing machinery and construction machinery exporter and importer, located in the Shanghai Free trade zone.
We faithfully enforce ISO9001:2000 and CE, BV certificate to guarantee that every product meets international standards. With a professional R&D team, skillful workers and a complete quality control system, we won the good reputation from reliable quality, competitive price and excellent after-sales service. Our export revenue increases constantly every year, and our products have already entered nearly 100 countries across the continents of South America, Africa, Middle East, Australia, Russia, Middle Asia, South Asia, Southeast Asia, and East Europe. We sincerely hope to cooperate, develop together and build a good future with you. Please feel free to contact us for more information about our products and services.
We are treat clients as friends.
We are gold supplier and trade assurance of alibaba. if you order from us,you will enjoy discount and bussiness protect & safeguard from your order. please support us and we believe we can provide you higher quality and better service for you.
Welcome to our factory at any time. we have machine in stock for your visiting.
Order our machine,you will bring benefit and happiness together. you won't any worries during production in your country...
Sale Promotion OHA CE Certificate CNC/ Hydraulic Press brake , Shearing machine , Punching machine ,Hydraulic preses, band Sawing machine,CNC Busbar Punching machine etc Machine tools Solution with Difference .......
