INT'L "OHA" 2015 Brand New Crankshaft Grinding Machine, Centerless Grinding Machine, Kitchen Sink Grinder
Manufacturing: OHA MACHINERY GROUP |
TRADE: OHA INDUSTRY & TRADE (SHANG HAI )CO.,LTD |
Address: Rm. 513,No,333 JinGang Road, Pudong District, Shanghai, 201206, China |
Tel: 0086-21-58760289 Fax: 0086-21-58760089 |
Skype: sales1.ohachina |
Web: |
Facebook: /ohachina |
Youtube: /channel/UCRAhjJk_hAUEUjfqKrC_CFg |
E-mail: sales1* eva* |
Characteristics of machine tools
Based on manual surface grinder, it covert the longitudinal and vertical machine to fully automatic. The bidirectional friction electronic clutch, simple and reliable structure, clutch reversing process has no impact, no noise, safe commutation 5 million times; the electric control part with electronic switching frequency switching. The service life is 10 times longer than the reply control, simple operation, sensitive, infinitely variable; large output, low noise, safe and reliable.
Power supply use a number of mechanical and electrical protection function which is safe voltage, energy saving, power saving, power consumption per class (calculated according to 8 hours) is only 0.6. When the manual grinding machine is working, before and after the workbench’s movement, in our out, around the reversing are automatic operation, greatly improving the production’s efficiency and the surface finish, suitable scope that from the original single small batch to mass batch.
Technical Datas for MD618 Crankshaft Grinding Machine, Centerless Grinding Machine, Kitchen Sink Grinder
Model |
MD618 |
MD820 |
MD1022 |
|||
Bench |
Max workpiece to be ground |
mm |
460*180 |
480*200 |
540*250 |
|
Max travel of table |
mm |
500*190 |
530*220 |
560*260 |
||
Max cutting area |
mm |
500*190 |
520*220 |
540*250 |
||
Number of T-Slot |
mm |
1*12 |
1*14 |
1*14 |
||
The amount of feed |
Distance from table surface to spindle center |
mm |
335 |
450 |
450 |
|
Wheel size (dia*width*bore) |
mm |
200*20*31.75 |
200*20*31.75 |
200*20*31.75 |
||
Spindle speeds (50Hz) |
r/m |
2850 |
2850 |
2850 |
||
Amount of feed |
Table longitudinal (L/R) speed (stepless) |
m/min |
3-23 |
3-20 |
3-20 |
|
Table horizontal (before and after) the amount of feed |
Continuous (variable speed) |
/min |
150 |
150 |
150 |
|
Intermittent (stepless) |
m/times |
0-5 |
0-5 |
0-5 |
||
Hand wheel rotates |
mm |
2.5 |
2.5 |
2.5 |
||
Hand wheel each grid |
mm |
0.02 |
0.02 |
0.02 |
||
Vertical (up and down) feed wheel feed |
Hand wheel rotates |
mm |
1.25 |
1.25 |
1.25 |
|
Hand wheel each grid |
mm |
0.01 |
0.01 |
0.01 |
||
Reversing feeder |
Total input power |
W |
150 |
150 |
150 |
|
X-feeder output speed |
/min |
0-225 |
0-225 |
0-225 |
||
X-feeder size |
mm |
280*130*120 |
280*130*120 |
280*130*120 |
||
Y-feeder output speed |
/min |
0-120 |
0-120 |
0-120 |
||
Y-feeder size |
mm |
280*130*120 |
280*130*120 |
280*130*120 |
||
Motor power |
Spindle motor |
kW |
1.1 |
1.5 |
1.5 |
|
Cooling motor |
kW |
0.4 |
0.4 |
0.4 |
||
Working precision |
Machine surface of the base of parallelism |
mm |
300/0.005 |
300/0.005 |
300/0.005 |
|
Surface roughness |
um |
Ra0.32 |
Ra0.32 |
Ra0.32 |
||
Machine weight |
Net |
kg |
750 |
800 |
880 |
|
Gross |
kg |
800 |
890 |
980 |
||
Packing size (L*W*H) |
mm |
1060*1170*1870 |
1680*1200*1900 |
1780*1240*1980 |
||

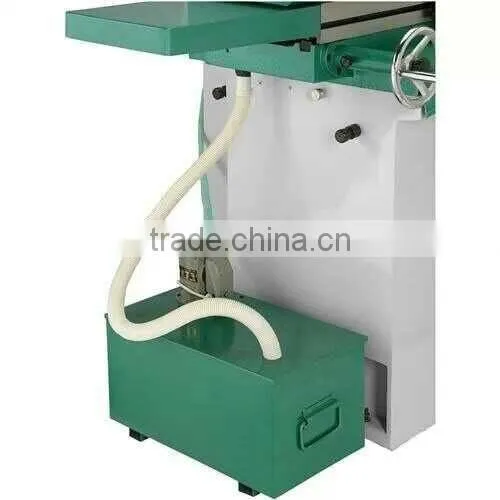

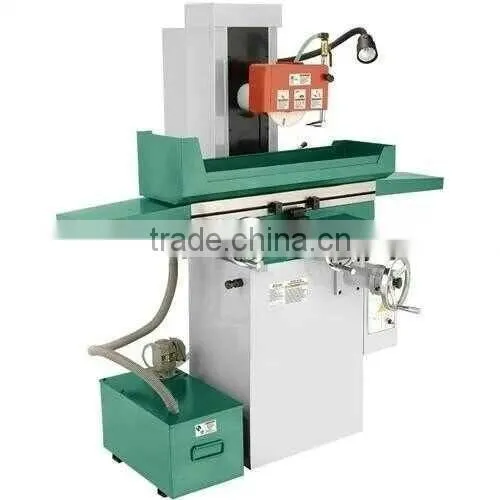

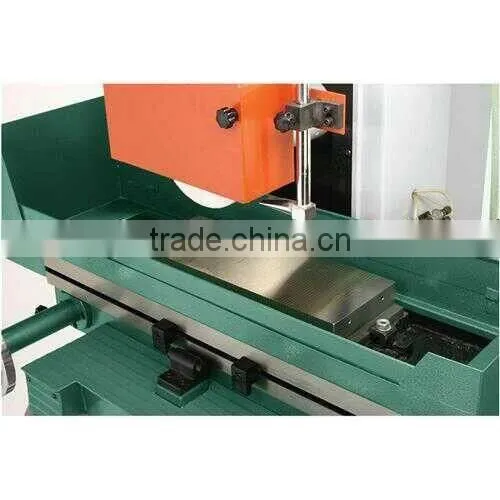

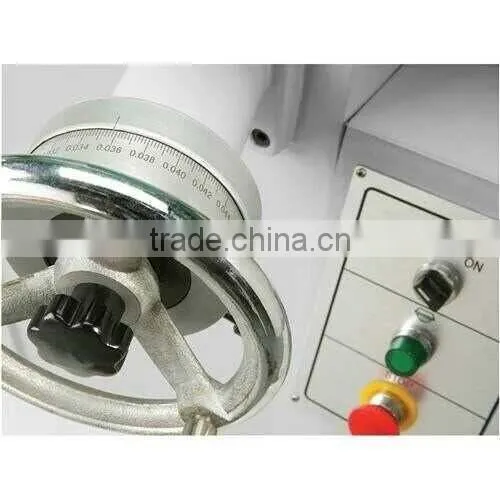

Details Photos for MD618 Crankshaft Grinding Machine, Centerless Grinding Machine, Kitchen Sink Grinder
Color |
Any color is available |
Logo |
Customized Logo for OHA Brand MD618 Crankshaft Grinding Machine, Centerless Kitchen Sink Grinder |
MOQ |
Small MOQ,1 SET for OHA Brand MD618 Crankshaft Grinding Machine, Kitchen Sink Grinder |
Delivery Time |
(1) 30-60 days –If you want to customize your request (2) 25 days – For our Standard |
OEM Accepted |
Yes |
Certification available |
Yes |
CNC System |
Optional |
Packing Details |
20GP, 40GP, 20 OT or LCL |
Production Capacity |
500/set OHA Brand MD618 Crankshaft Grinding Machine, Centerless Grinding Machine per month |
Payment Term |
L/C, T/T, D/A, WESTERN UNION, MONEY GRAM |
You can contact me at anytime,we will provide you fast and professional service
Advantage
1. Competitive price: It is can meet your budget and best-selling business very well.
2. OEM Accepted: We can produce any your request design.
3. Good Service: We treat clients as friends.
4. Good Quality: We have strict quality control system. Good reputation in the market.
5. Fast & Delivery: We have big discount from forwarder (Long Contract).
Our Innovation
Quality & Service: At OHA, our #1 priority has always been providing our clients with great quality products and superior customer service. |
Quick lead Time: We’re dedicated to providing the quickest turn-around times and work very hard to ensure that all of your deadlines are met |
Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the saving over to you! |
Brand Awareness: The goal of any strong brand is achieve a level of awareness that instills the idea of quality and value into all of your potential customers. |
Special Offers:In order to maintain our competitive edge, we are constantly running special offers on our Best –selling press brake, forging equipment goods and design services. Contact our sales term to see how we can help you save a lot of money. |
General Order Information
We take great pride in our work and in the wide variety of products that we offer. We are experienced in servicing the Southeast Asia market, South America, European market and Africa market. Please be aware that our production lead times depend on specific items and item quantities.
100 % Gold supplier and trade assurance of alibaba o
We faithfully enforce ISO9001:2000 and CE,SGS, BV certificate to guarantee that every product meets international standards. With a professional R&D team, skillful workers and a complete quality control system, we won the good reputation from reliable quality, competitive price and excellent after-sales service. Our export revenue increases constantly every year, and our products have already entered nearly 100 countries across the continents of South America, Africa, Middle East, Australia, Russia, Middle Asia, South Asia, Southeast Asia, and East Europe. We sincerely hope to cooperate, develop together and build a good future with you. Please feel free to contact us for more information about our products and services.
We are gold supplier and trade assurance of alibaba. if you order from us,you will enjoy discount and bussiness protect & safeguard from your order. please support us and we believe we can provide you higher quality and better service for you.
Welcome to our factory at any time. we have machine in stock for your visiting.
Order our machine,you will bring benefit and happiness together. you won't any worries during production in your country...
Sale Promotion OHA CE Certificate CNC/ Hydraulic Press brake , Shearing machine , Punching machine ,Hydraulic preses, band Sawing machine, etc Machine tools Solution with Difference .......
