Specifications

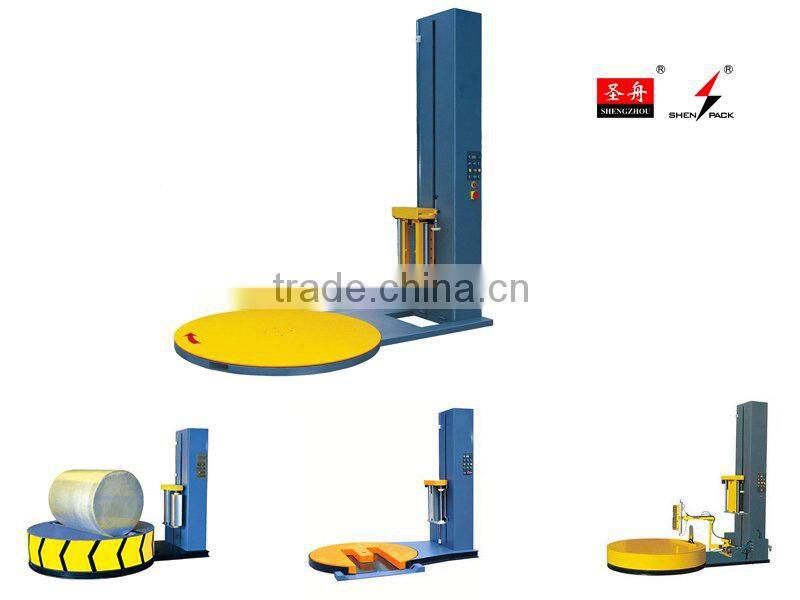

Automatic Pallet Stretch Wrapping Machine with pre-stretching capability to minimize stretch film consumption.Automatic pre stretch film machine/pre stretch film wrapping machine/pre stretch film wrapper equipment
- Motor driven turn-table with load capacity up to 2000 KGS
- Variable turntable speed by frequency changer
- Slot in turntable for easy repositioning by fork lift truck
- Positive stop of the rotating turntable in fixed position by micro switch
- Automatic pallet height detection photocell
- Reinforce wrap allow more wrap on same location
- Programmable number of wrapping revolutions
- Powered pre-stretch system up to 200% to minimize film consumption
- Film Tension Control adjustment on panel
- Variable carriage up/down speed
- Film delivery variable speed by separate DC Drive Motor
- Heavy duty double-chain carriage lift, calm and safety
- Electronic soft start/stop for unstable loads
OPTIONS
Ramp
Pneumatic top pressor
Pneumatic film grab and cut off system
Upgraded wrapping height to 2800 MM
Increased turntable diameter to 1800mm, 2000mm
High profile turntable load capacity to 2500-3000 KGS
Machine color
TECHNICAL DATA
Model No. |
SZR SW1650S |
Turntable Load Size |
L200 × W1200 × H2400 MM |
Turntable Diameter |
1650 MM |
Turntable Height |
78 MM |
Turntable Load Capacity |
2000 KGS |
Turntable Speed |
3-12 RPM |
Efficiency |
20-40 loads per hour based on load size |
Net Weight |
700 KGS |
Power Supply |
220 V, 50 HZ |
Power Consumption |
1.5 KW |
Overall Size |
L2745 × W1650 x H2863 |
Shipping Size |
L2850 x W1750 x H1420 |
Automatic pre stretch film machine/pre stretch film wrapping machine/pre stretch film wrapper equipment
Automatic pre stretch film machine/pre stretch film wrapping machine/pre stretch film wrapper equipment
Shenzhou Automatic pre stretch film machine/pre stretch film wrapping machine/pre stretch film wrapper equipment
Automatic pre stretch film machine/pre stretch film wrapping machine/pre stretch film wrapper equipment
