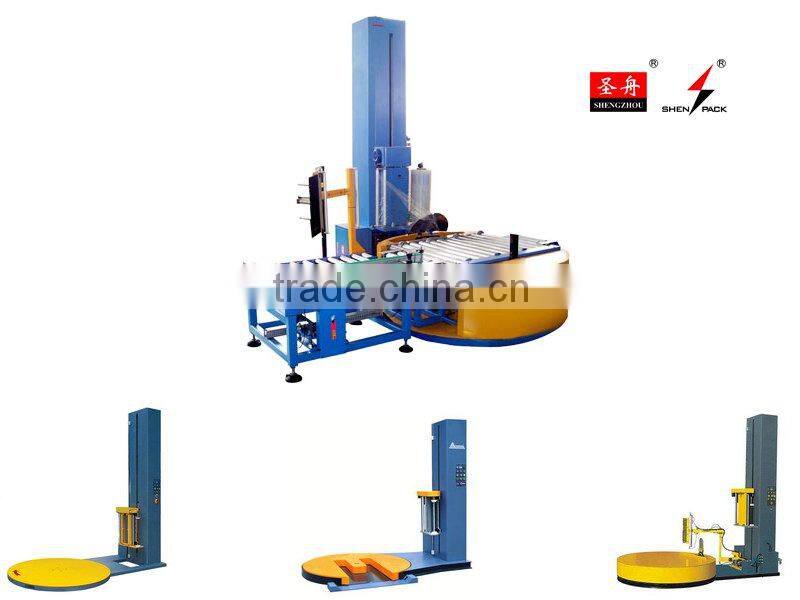

Tray Online Type Winding Machine/tray Stretch Film Winding Packaging Machine/tray Stretch Film Winding Packing Machine
US$ 3,000 - 6,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Other, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles, Other
Packaging Type:
Other, Plywood Case
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Pallet Online Type Stretch Film Wrapping Machine/tray Online Tyle Stretch Film WrapperUS$ 3,000 - 6,000MOQ: 1 Set -
Pallet Paper Roll Stretch Film Wrapper/ Paper Roll Wrapping Machine With CEUS$ 3,000 - 6,000MOQ: 1 Set
-
Top Platen Pallet Wrapping Machine/top Platen Stretch Wrapping Machine/pallet Stretch Film Wrapping Machine With Top PlateUS$ 3,000 - 6,000MOQ: 1 Set
-
CE High Quality Industrial Stretch Film Turntable Pallet WrapperUS$ 3,000 - 6,000MOQ: 1 Set
-
Automatic M Type Pallet Stretch Film Wrapping Machine/M Type Stretch Wrapper/M-tunnel Pallet WrapperUS$ 3,000 - 6,000MOQ: 1 Set
Condition
New
Application
Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Other, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles, Other
Packaging Type
Other, Plywood Case
Packaging Material
Plastic, Wood
Automatic Grade
Automatic
Driven Type
Electric
Voltage
220 V 50 HZ 1 Phase
Power
2.0 KW
Place of Origin
Fujian, China
Brand Name
Shen Pack
Model Number
SZR SW2650R
Dimension(L*W*H)
L2745 x W1800 x H3330 MM
Weight
1400KGS
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Fully-automatic Pallet Stretch Wrapper integrated with powered Outfeed Conveyor to fullfil non-stop operation.tray online type winding machine/tray stretch film winding packaging machine/tray stretch film winding packing machine
Model No. SZR SW2650R
Features
Control
- OMRON PLC control system
- Photo-eye pallet height sensor
- 0-9 separate top ,bottom & up-down wrap count selectors
- Photoeye sensing delay
- Reinforce wrap allow more wrap on same location
- Film Tension Control adjustment on the panel
- 3-12 RPM variable turntable speed by frequency changer
- Separate variable carriage up/down speed
- Dust-tight Precious Metal Slip-ring for long reliable service
- Separate start, reset and emergency stop buttons
- Manual carriage up/down switch
- Turntable jog button
- Conveyor Jog (for each conveyor)
- Cycle pause capability
- Remote Control
- Hinged mast for easy handling
- Forklift transportable
Turntable
- 1800 mm Diameter Structural steel plate
- 500mm high profile turntable
- Position turntable alignment
- Soft start/ Soft stop
- Heavy duty chain drive
- Table Fully Shrouded for Greater Personnel Safety
Film Carriage
- Powered pre-stretch ratio up to 200% to minimize film consumption
- Carriage door opens for effortless roll change and thread film
- Film delivery variable speed by separate DC Drive Motor
- Film dancer-bar with variable speed output
- Heavy duty double-chain carriage lift, calm and safety
Conveyor
- Heavy Structural steel Frame construction
- All rollers driven
- Heavy Duty Conveyor Guards
- Adjustable Leg Height
- Roller Diameter 89 MM
- Roller Length 1300 MM
- Center Distance 114 MM
- Conveyor Speed 12 M Per Min Adjustable
- Photo-eye Pallet Sensing and sequencing
- Different Roller Diameters and Roller Spacing Available
Film Tail Treatment
- Film Tail Treatment
- Pneumatic Auto cut & wipe system
- Hot wire cutter
- Pneumatic brush activate
Options
- Packing Height up to 2800 MM
- Turntable Diameter up to 2000 MM
- Turntable Capacity up to 2500 KGS and 3000 KGS
- Addition conveyors & conveyor type available, e.g. belt or roller
Technical Specification
Model No. | SZR SW1800FZ-PL |
Load size | Max. L1200 x W1100 x H2400 MM |
Turntable Diameter | 1800 MM |
Turntable Height | 500 MM |
Turntable Weight Capacity | 2000 KGS |
Turntable Speed | 3-12 RPM |
Machine Weight | 1400 KGS |
Power Supply | 220 V 50 HZ 1 Phase |
Power Consumption | 2.0 KW |
Air Supply | 0.4-0.6 MPA |
Machine Dimensions | L2745 x W1800 x H3330 MM |
Packing Efficiency | 40-60 Loads Per Hour Based On Load Size And Weight |
