welcome to visit our website,the specification data of small engraving milling machine DX5050 is as followed,if you need other information of our machine,please contact me freely or visit our factory by feild trip.

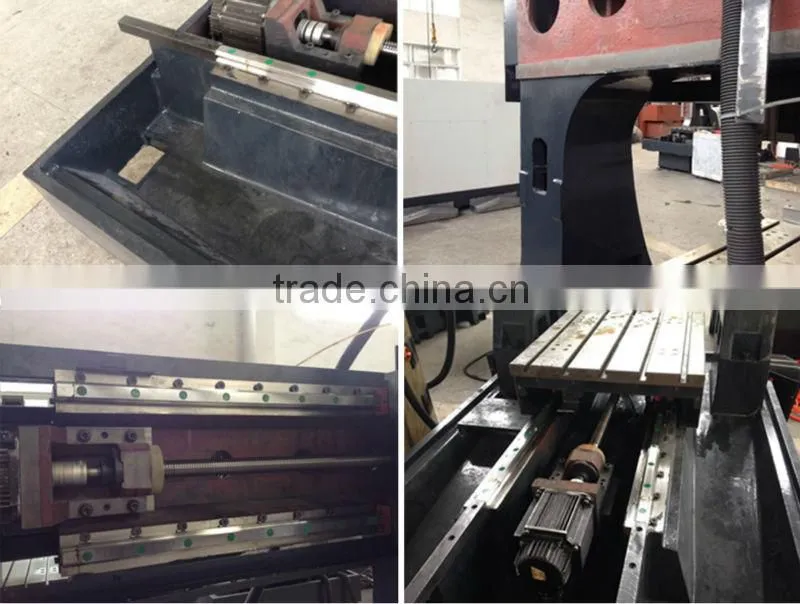

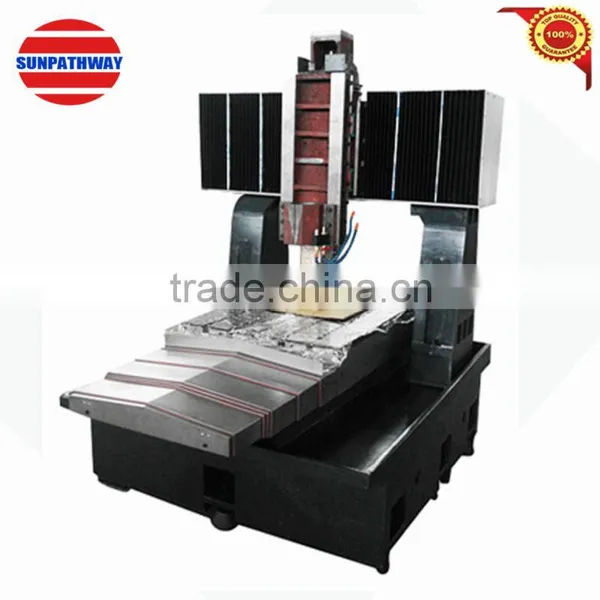

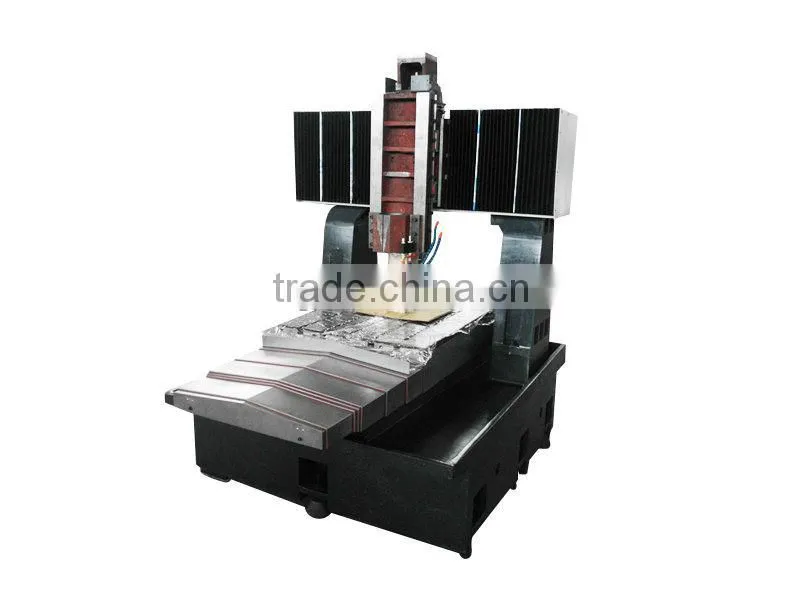

small engraving milling machine DX5050
one.small engraving milling machine DX5050 specifications:
Model |
Table dimension (length×width)(mm) |
Table T groove (mm) |
Workingload(kg) |
Travel(X,Y,Z)(mm) |
Spindle speed (rpm) |
SW-DX5050 |
550×500 |
5-17 |
200 |
500×500×250 |
3000-24000/21000 |
two.small engraving milling machine DX5050 configurations:
|
Type NO. |
Name |
Brand Habitat |
Remarks |
1 |
High-speed electrical spindle |
Xingcheng |
4KW/3.2KW/Constant Power |
2 |
Coupling Shaft |
Guangda |
|
3 |
Ball screw of three axles |
C3 level double nuts ball screw of 3 axis |
|
4 |
Beeline rail of three axles |
High Precision beeline
guide of HIWIN (Taiwan) |
|
5 |
Lubrication way |
Nanjing (Jiangsu) |
Centralized Oiling |
6 |
Axletree |
Japan of NSK or NACHI |
P4 level of high accurate match axletrees |
7 |
Whole Machine Painting |
Plastic Spraying |
|
8 |
Accurate Round Nuts |
Taiwan |
|
9 |
Shield Of Y-axis |
Domestic |
Stainless Steel |
10 |
Bolts of whole machine |
High Intensity 12.9 Grade |
|
s for small engraving milling machine DX5050
four.Production capacity
|
Company Brief Nantong Sunway Technology company is established in 2000year.We are the professional manufacturer of vertical machining center,cnc gantry milling machine,cnc engraving and milling machine,electrical discharge machine and so on.Our machine have been exported to Europe,America,Southeast Asia,Korea and many foreign countries,we also supply OEM service. |
|

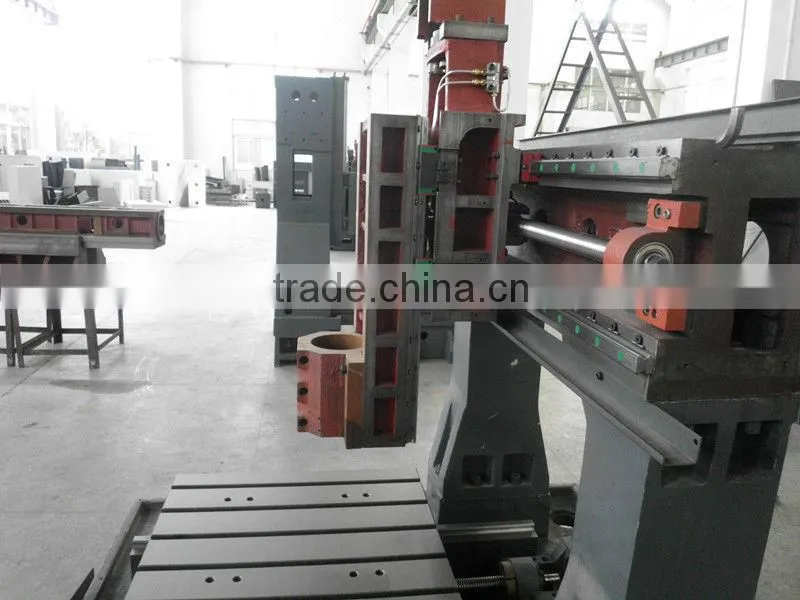

Assembly shop of cnc engraving and milling machine |
|
|
Graphite engraving and milling machine(complete) which exported to Brazil DX7070
Angle to open the door, in order to hoist workpiece directly by customer
High speed processing of graphite electrodes or electrode parts |
|
|
Light-weight gantry type engraving and milling machine We can provide OEM service for customers, also can meet the requirements of customers’ custom machine by themselves. LM-1090, X,Y,Z travel: 1000×900×430 mm LM-1311, X,Y,Z travel: 1300×1100×430 mm LM-1613, X,Y,Z travel: 1600×1300×550 mm The spindle installed motorized spindle to became large engraving and milling machine,to repair the light of large molds, carved, save a lot of artificial polishing time. |
|
|
Small CNC gantry type engraving and milling machine LM-1090, X,Y,Z travel:1000×900×430 mm LM-1212, X,Y,Z travel:1200×1200×700 mm LM-1612, X,Y,Z travel:1600×1200×700 mm Spindle BT50,15KW, instead of the Y axis direction to small disadvantage of VMC,especially suitable for square, large width mould, product processing, low prices, high precision, long service life.
|
LM-1612 with tool changer, with oil cooling for spindle |
|
Electrical discharge machine which will be exported to SAMSUNG,Korea Our electrical discharge machine have exported to SAMSUNG (Korea), Brazil, Argentina, Mexico,Turkey and other countries .All machines runs well,they have not broken till now, we always trust”no maintenance service is the best service”. |
|
|
Gantry machining center Using famous brand gantry machining center,is the key point to guarantee the precision and surface finishment of machining face. |
|
|
Metal plate Our metal plate use laser cutting and international advanced welding technique,while supply elegant appearance for surface of machine. |
|
|
Casting Our casting are made for resin sand,grade HT250,we are the sole casting factory which exported to DMG(German) in our domestic and meanwhile we are the supplier of Foxconn(supplier of Apple Inc) and supply 6000 sets casting to Foxconn. |
|
|
Detection of assembling In strict accordance with German standard to do precision detection on our linear rail,ball screw,table surface, to guarantee the integral precision of machine. |
|
Precision detection |
|
|
Laser inspection equipment Owning the advanced laser inspection equipment,which is made in USA,are stable guarantees of improving the quality and precision of machines. |
|
