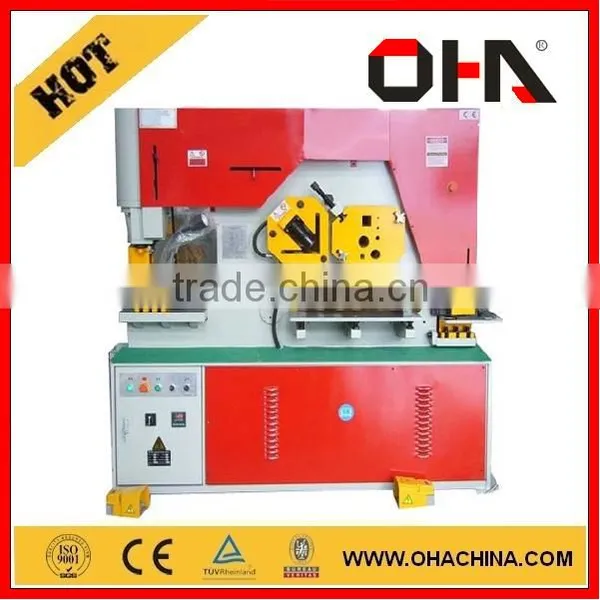

OHA Brand Q35Y-20 Punch and Shear Machine, Punching and Shearing Machine
- 200 Unit / Units per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
- Professional High Precision Wide Application J23-25 cnc turret punching machines
- High Precision Wide Application J23-25 c frame punch press
- Professional High Precision Wide Application J23-25 hydraulics
- High Precision Wide Application J23-25 c frame fixed table punching machine
- Factory Sale High Precision Wide Application J23-25 construction material making machine
- High Precision Wide Application J23-25 scrap metal cutting machine for punching machine
Product Details
Condition: | New | CNC or Not: | Normal | Power Source: | Hydraulic |
Place of Origin: | Shanghai, China | Brand Name: | OHA | Model Number: | Q35Y-20 |
Voltage: | Customized | Power(W): | 5.5kW | Weight: | 2400kg |
Dimension(L*W*H): | 1860*800*1900mm | Certification: | CE | Warranty: | Lifetime |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
INT'L "OHA" Brand New Q35Y-20 Punch and Shear Machine, Punching and Shearing Machine
QHA-Y series industrial-grade hydraulic iron worker featuring multiple functions, including: round hole punching, square hole punching, oblong hole punching, steel plate punching, flat bar punching, angle steel punching, C-channel punching, H-beam punching, I-beam punching, steel plate bending, angle steel notching and bending, angle steel shearing/cutting, flat shearing/cutting, round/square bar shearing/cutting, C-channel shearing/cutting, I-beam shearing/cutting, T-bar shearing/cutting, press brake, angle bending and pipe notching! It comes standard with: quick-change coupling nut & sleeve, squaring arm with scale, electronic back gauge, gauging table with stops, punching base table, safety guards and more.
Main standard properties components of Ironworker
1. All the electrical parts are IMPORT with CE certificate.
2. Professionally engineered design frame structures.
3. Steel welds with high precision strength and rigidity to eliminate vibrations.
4. Ironworker steel frame Q235 = American standard steel A306 GR55.
5. Five sets of punch and blades were installed on the machine.
6. Timer relay by Japanese OMRON.
7. All wiring terminal block by WEIDMULLER.
8. Main Electrical component by Germany Schneider.
9. Oil seals by Japanese, NOK.
10. O-Ring and Valve by Taiwan for piston pump more durable.
11. Hydraulic System by Japanese Yuken.
12. Motor by Chinese Jiangsu Dazhong
13. Hydraulic fuel tanks and ironworker frame built by our Factory.
14. Dual independent hydraulic cylinder
15. Dual Footswitch controlled work separately
16. Easy Adjustable stroke control with ruler
17. Indicator on both hydraulic cylinders
18. Electric back gauge auto stop
19. Moveable working light that can be placed at any desired position
20. Hydraulic system with overload protection system
21. Emergency safety stop switch
22. Large punching table with ruler guide
23. Larger notching table with Ruler guide
24. Large flat shearing table with Ruler guide
25. Most important easy maintenance

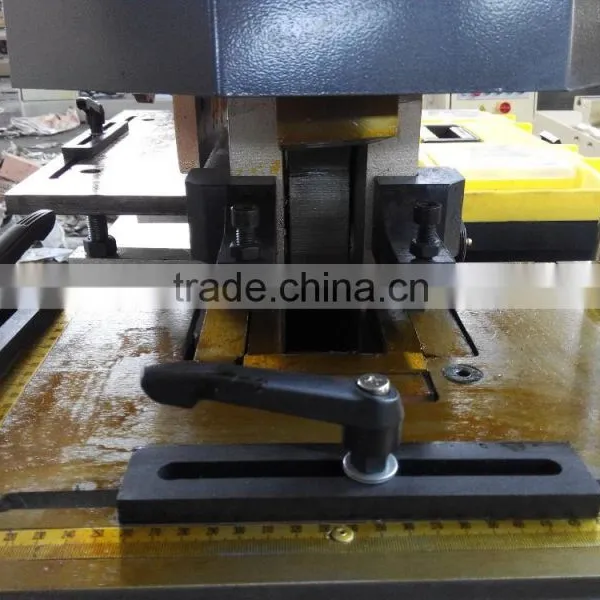

Reference Photos for Q35Y-20 Punch and Shear Machine, Punching and Shearing Machine
Technical Data for Q35Y-20 Punch and Shear Machine, Punching and Shearing Machine
Type | Q35Y-16 | Q35Y-20 | Q35Y-25 | Q35Y-30 |
Punching pressure(Ton) | 55 | 75 | 110 | 140 |
Max cutting thickness(mm) | 16 | 20 | 25 | 30 |
Plate strength(N/mm2) | ≤450 | ≤450 | ≤450 | ≤450 |
Cutting angle(degree) | 7 | 8 | 8 | 8 |
Shearing size of one stroke(mm) | 16×250 / 8×400 | 20×330 / 10×480 | 25×330 / 16×600 | 30×335 / 20×600 |
Ram stroke(mm) | 80 | 80 | 80 | 80 |
Number of strokes(mm) | 8 | 8 | 8 | 6 |
Throat depth(mm) | 300 | 355 | 400 | 600 |
Punching thickness(mm) | 16 | 20 | 25 | 26 |
Max punching diameter(mm) | 25 | 30 | 35 | 38 |
Power of main motor(KW) | 4 | 5.5 | 7.5 | 11 |
Overall dimension(L×W×H)(mm) | 1640×730×1770 | 1860×800×1900 | 1900×810×1900 | 2860×1040×2300 |
Weight of machine(kg) | 1750 | 2400 | 4800 | 6350 |
Samples for Q35Y-20 Punch and Shear Machine, Punching and Shearing Machine
Color | Any color is available |
Logo | Customized Logo for Best-selling Q35Y-20 Punch and Shear Machine, Punching and Shearing Machine |
MOQ | Small MOQ,1 SET for Best-selling Q35Y-20 Punch and Shear Machine, Punching and Shearing Machine |
Delivery Time | (1) 30-60 days –If you want to customize your request (2) 25 days – For our Standard |
OEM Accepted | Yes |
Certification available | Yes |
CNC System | Delem, ESTON …… |
Packing Details | 20GP, 40GP, 20 OT or LCL |
Production Capacity | 500/sets Best-selling Q35Y-20 Punch and Shear Machine, Punching and Shearing Machine Per Month |
Payment Term | L/C, T/T, D/A, WESTERN UNION, MONEY GRAM |
Advantage
1. Competitive price: It is can meet your budget and best-selling business very well.
2. OEM Accepted: We can produce any your request design.
3. Good Service: We treat clients as friends.
4. Good Quality: We have strict quality control system. Good reputation in the market.
5. Fast & Delivery: We have big discount from forwarder (Long Contract).
Our Innovation
Quality & Service: At OHA, our #1 priority has always been providing our clients with great quality products and superior customer service. |
Quick lead Time: We’re dedicated to providing the quickest turn-around times and work very hard to ensure that all of your deadlines are met |
Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the saving over to you! |
Brand Awareness: The goal of any strong brand is achieve a level of awareness that instills the idea of quality and value into all of your potential customers. |
Special Offers:In order to maintain our competitive edge, we are constantly running special offers on our Best –selling press brake, forging equipment goods and design services. Contact our sales term to see how we can help you save a lot of money. |
General Order Information
We take great pride in our work and in the wide variety of products that we offer. We are experienced in servicing the Southeast Asia market, South America, European market and Africa market. Please be aware that our production lead times depend on specific items and item quantities.
OHA INDUSTRY & TRADE (SHANGHAI) CO., LTD. is a leading Chinese sheet metal processing machinery and construction machinery exporter and importer, located in the Shanghai Free trade zone.
We faithfully enforce ISO9001:2000 and CE,SGS, BV certificate to guarantee that every product meets international standards. With a professional R&D team, skillful workers and a complete quality control system, we won the good reputation from reliable quality, competitive price and excellent after-sales service. Our export revenue increases constantly every year, and our products have already entered nearly 100 countries across the continents of South America, Africa, Middle East, Australia, Russia, Middle Asia, South Asia, Southeast Asia, and East Europe. We sincerely hope to cooperate, develop together and build a good future with you. Please feel free to contact us for more information about our products and services.
