Profile
HA3200W EOC master is single-channel-100M outdoor equipment, with carrying capacity of 253 EOC slaves. It can work in atrocious weather with good stability because of its waterproof and lightproof shell.
Character
l Good anti-jamming capability with OFDM (kind of MCM, Multi-Carrier Modulation) and channel-adaptive technology.
l Highly adaptable to network, amplifier and distributor.
l Highly effective filter, lower interference to CATV
l Supply VLAN, IGMP and QoS
l Cable TV input RF band: 47~860MHz
l IP input RF band: 7.5~30MHz
l Support SNMP, WEB andCLI management
l Support remote software upgrade
l Support integrated management for slaves
l Support AC220V or AC60V power supply
Technical Specification
Parameter |
Specification |
System Bandwidth |
Physical layer data rate 200Mbps MAC layer data rate 100Mbps |
Modulation |
1024/256/64/16/8-QAM, QPSK, BPSK, ROBO |
MAC Protocol |
TDMA and CSMA |
EOC technology |
HomePlug AV |
Frequency |
7.5 ~ 30MHz |
Protocol and Standard |
IEEE 802.1Q, IGMP v1, v2 IEEE 802.1P QoS |
NMS |
WEB CLI SNMP |
Data Interface |
2 10/100Base-TX RJ45 ports Auto MDI/MDIX Comply with 802.3, IEEE802.3u |
RF Interface |
2 RF ports (Metric thread F type) Output level: 110dBμV Insertion Loss: <1dB Flatness in Band: ±0.5dB Return Loss: >20dB suppression ratio of out band: 55dB Impedance: 75Ω |
Light Indicator |
PWR (power LED) RUN (management system LED) SYS (system LED) LINK (link LED) ETH (Ethernet port LED) |
Distance |
700m |
Working Environment
Power |
AC220V /AC60V |
Power Consumption |
6W |
Working Temperature |
-25℃ ~ +60℃ |
Storage Temperature |
-40℃ ~ +70℃ |
Working Humidity |
20% ~ 85%(non-condensing) |
Storage Humidity |
10% ~ 90%(non-condensing) |
Dimension |
224mm(length) × 200mm(width)× 110mm(height) |

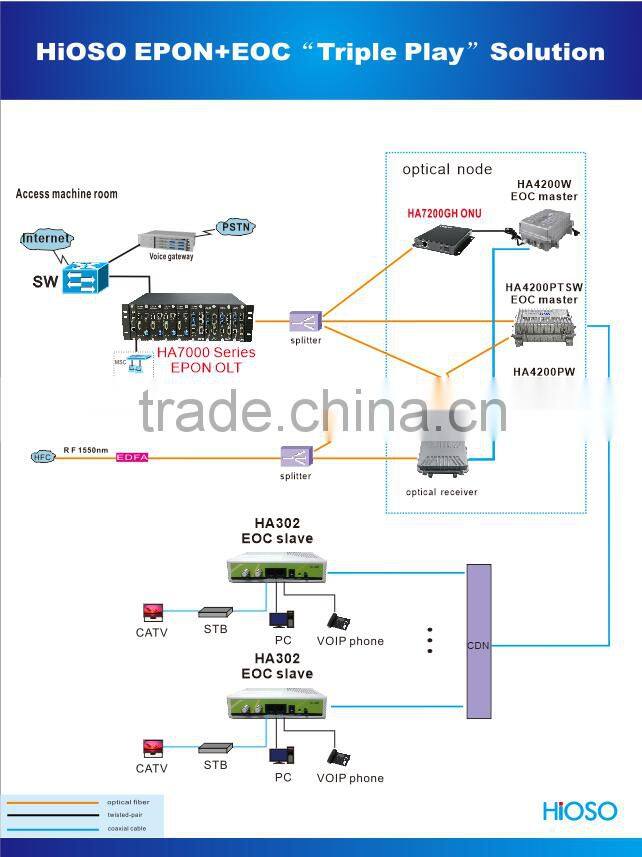

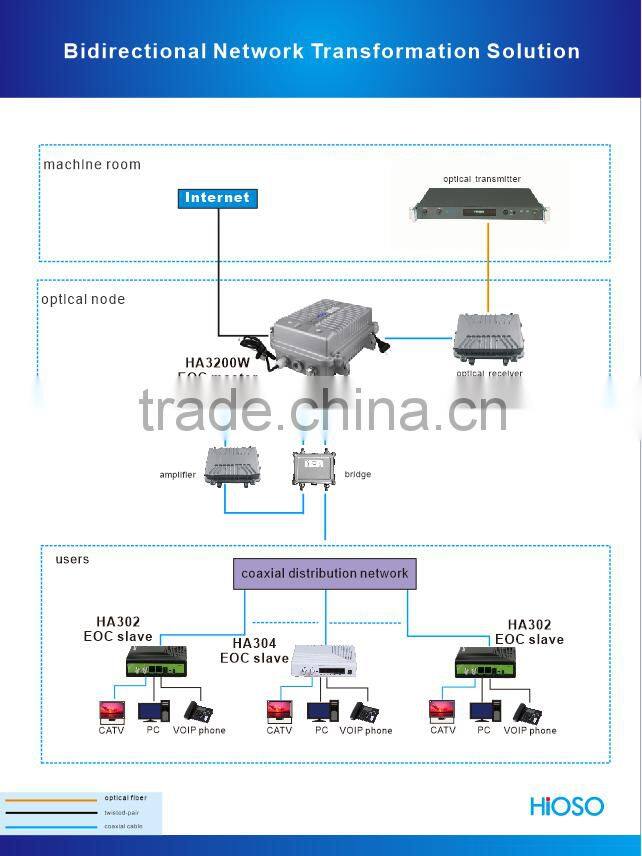

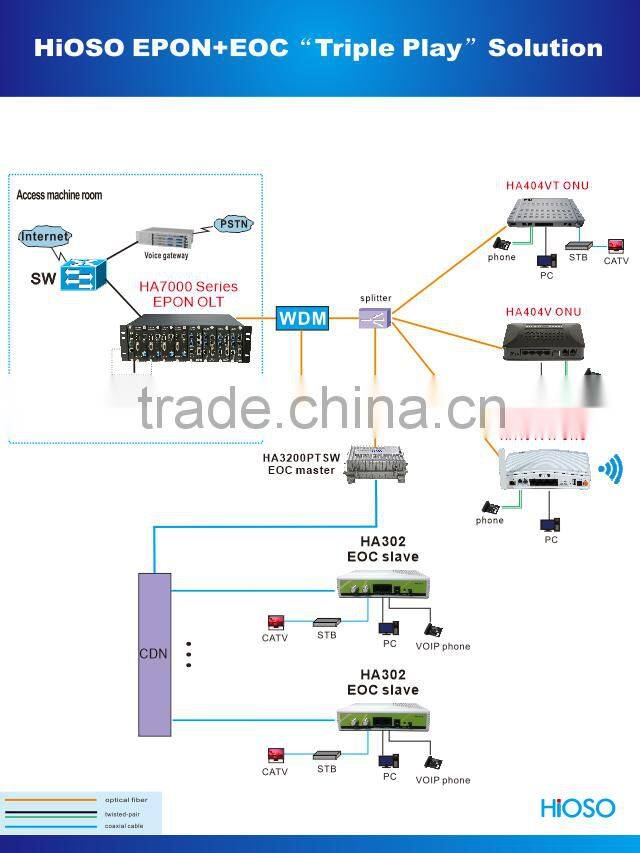

Solutions
Certificate
