INT'L "OHA" Brand Manufacturer Q35Y-16 Universal Iron Workers, Universal Ironworker, Ironworker Punches

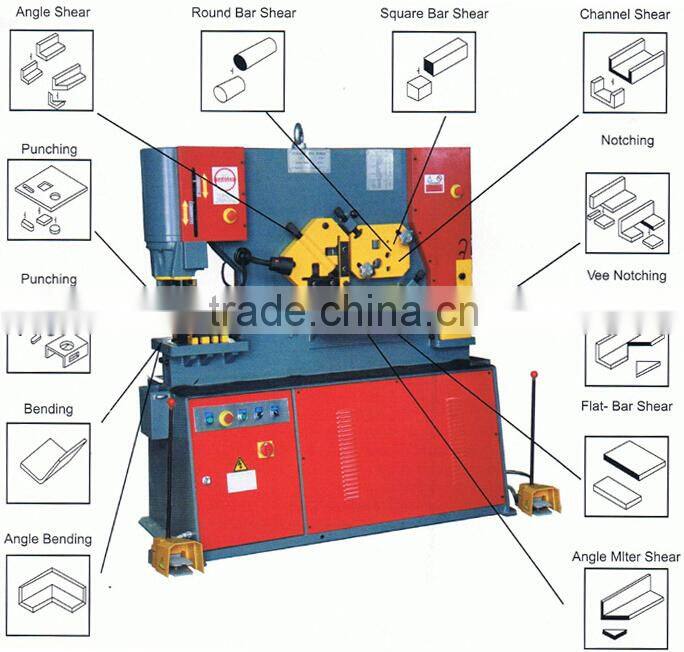

QHA-Y series industrial-grade hydraulic iron worker featuring multiple functions, including: round hole punching, square hole punching, oblong hole punching, steel plate punching, flat bar punching, angle steel punching, C-channel punching, H-beam punching, I-beam punching, steel plate bending, angle steel notching and bending, angle steel shearing/cutting, flat shearing/cutting, round/square bar shearing/cutting, C-channel shearing/cutting, I-beam shearing/cutting, T-bar shearing/cutting, press brake, angle bending and pipe notching! It comes standard with: quick-change coupling nut & sleeve, squaring arm with scale, electronic back gauge, gauging table with stops, punching base table, safety guards and more.
Main standard properties components of Ironworker
1. All the electrical parts are IMPORT with CE certificate.
2. Professionally engineered design frame structures.
3. Steel welds with high precision strength and rigidity to eliminate vibrations.
4. Ironworker steel frame Q235 = American standard steel A306 GR55.
5. Five sets of punch and blades were installed on the machine.
6. Timer relay by Japanese OMRON.
7. All wiring terminal block by WEIDMULLER.
8. Main Electrical component by Germany Schneider.
9. Oil seals by Japanese, NOK.
10. O-Ring and Valve by Taiwan for piston pump more durable.
11. Hydraulic System by Japanese Yuken.
12. Motor by Chinese Jiangsu Dazhong
13. Hydraulic fuel tanks and ironworker frame built by our Factory.
14. Dual independent hydraulic cylinder
15. Dual Footswitch controlled work separately
16. Easy Adjustable stroke control with ruler
17. Indicator on both hydraulic cylinders
18. Electric back gauge auto stop
19. Moveable working light that can be placed at any desired position
20. Hydraulic system with overload protection system
21. Emergency safety stop switch
22. Large punching table with ruler guide
23. Larger notching table with Ruler guide
24. Large flat shearing table with Ruler guide
25. Most important easy maintenance

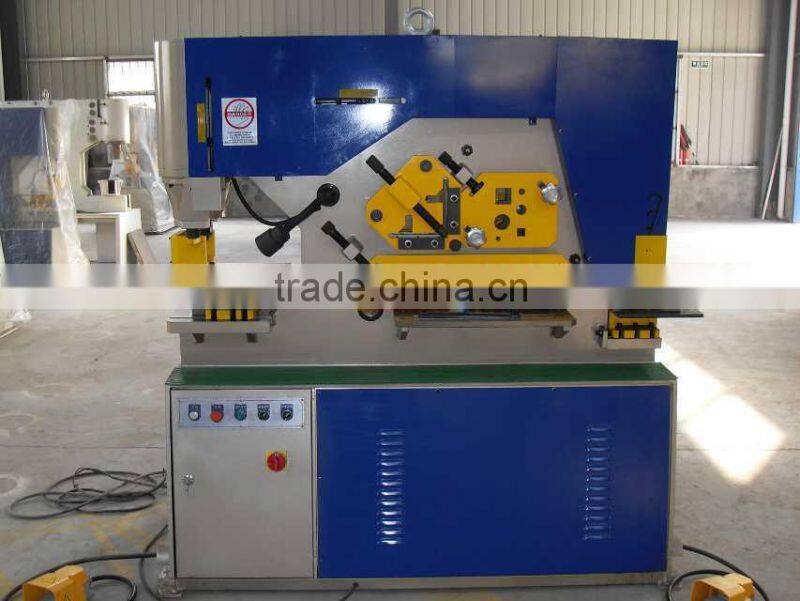

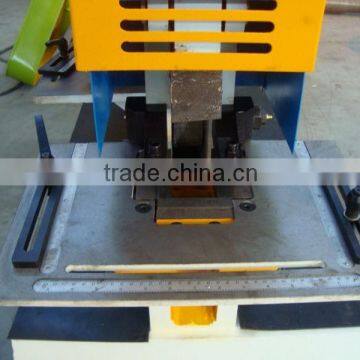

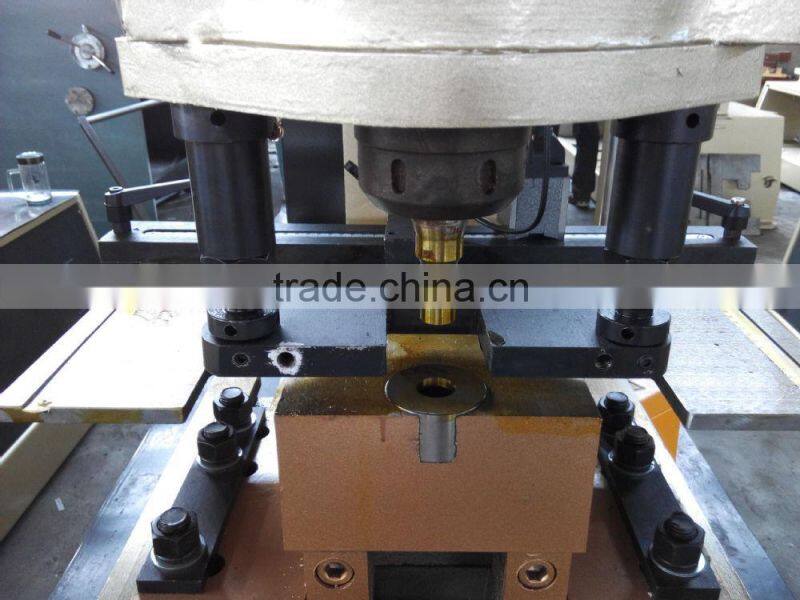

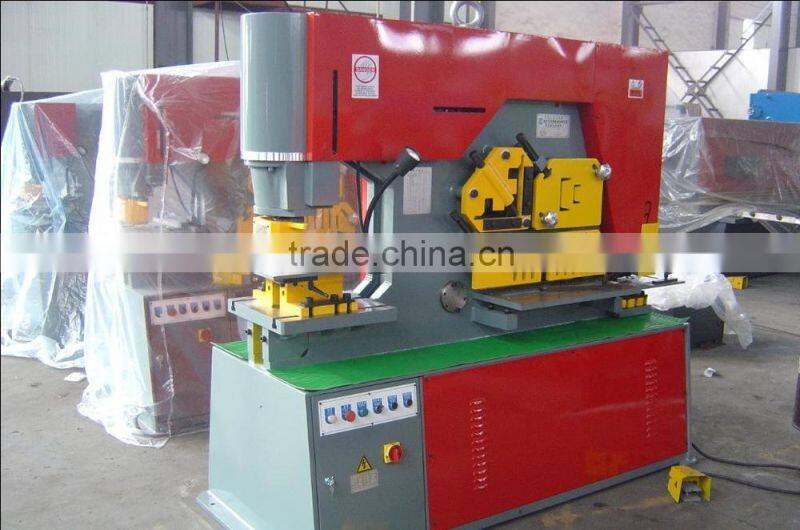

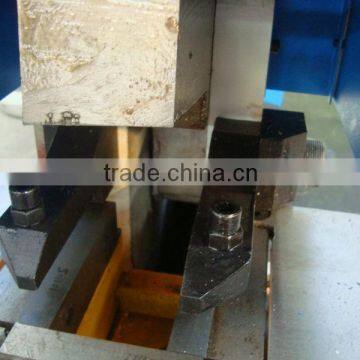

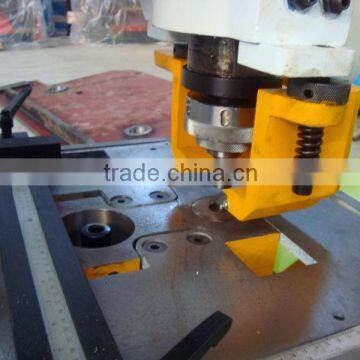

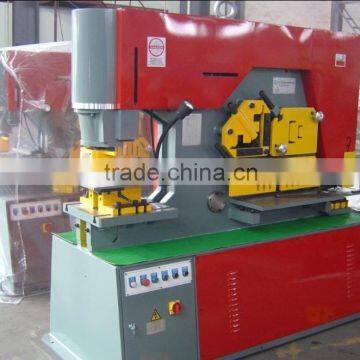

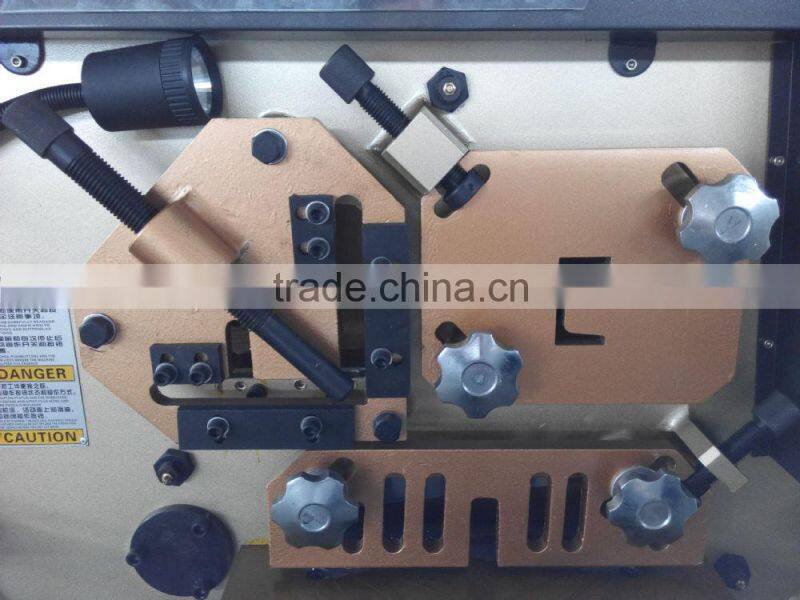

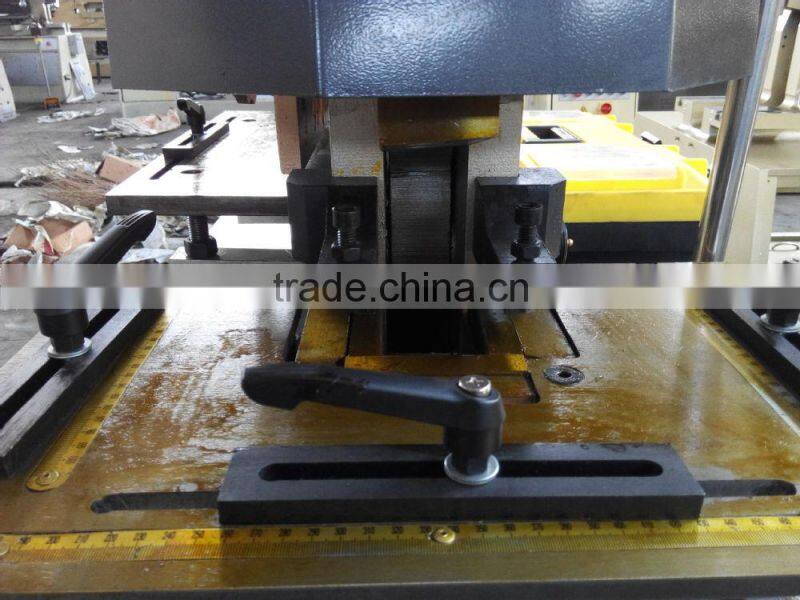

Reference Photos for Manufacturer Q35Y-16 Universal Iron Workers, Universal Ironworker, Ironworker Punches
Technical Data for Manufacturer Q35Y-16 Universal Iron Workers, Universal Ironworker, Ironworker Punches
| Type | Q35Y-16 | Q35Y-20 | Q35Y-25 | Q35Y-30 |
| Punching pressure(Ton) | 55 | 75 | 110 | 140 |
| Max cutting thickness(mm) | 16 | 20 | 25 | 30 |
| Plate strength(N/mm2) | ≤450 | ≤450 | ≤450 | ≤450 |
| Cutting angle(degree) | 7 | 8 | 8 | 8 |
| Shearing size of one stroke(mm) | 16×250 / 8×400 | 20×330 / 10×480 | 25×330 / 16×600 | 30×335 / 20×600 |
| Ram stroke(mm) | 80 | 80 | 80 | 80 |
| Number of strokes(mm) | 8 | 8 | 8 | 6 |
| Throat depth(mm) | 300 | 355 | 400 | 600 |
| Punching thickness(mm) | 16 | 20 | 25 | 26 |
| Max punching diameter(mm) | 25 | 30 | 35 | 38 |
| Power of main motor(KW) | 4 | 5.5 | 7.5 | 11 |
| Overall dimension(L×W×H)(mm) | 1640×730×1770 | 1860×800×1900 | 1900×810×1900 | 2860×1040×2300 |
| Weight of machine(kg) | 1750 | 2400 | 4800 | 6350 |

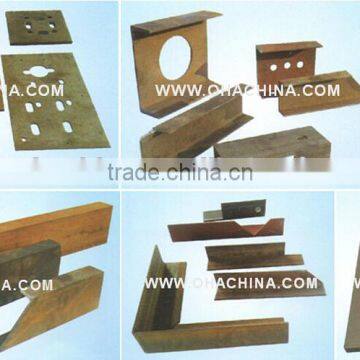

Samples for Manufacturer Q35Y-16 Universal Iron Workers, Universal Ironworker, Ironworker Punches
Color |
Any color is available |
Logo |
Customized Logo for Manufacturer Q35Y-16 Universal Iron Workers, Universal Ironworker, Ironworker Punches |
MOQ |
Small MOQ,1 SET for Manufacturer Q35Y-16 Universal Iron Workers, Universal Ironworker, Ironworker Punches |
Delivery Time |
(1) 30-60 days –If you want to customize your request (2) 25 days – For our Standard |
OEM Accepted |
Yes |
Certification available |
Yes |
CNC System |
Delem, ESTON …… |
Packing Details |
20GP, 40GP, 20 OT or LCL |
Production Capacity |
500/sets Manufacturer Q35Y-16 Universal Iron Workers, Universal Ironworker, Ironworker Punches Per Month |
Payment Term |
L/C, T/T, D/A, WESTERN UNION, MONEY GRAM |
