Specifications
100T hydraulic jack;light weight and small volumn;
time and labour saving;
CE Certificate

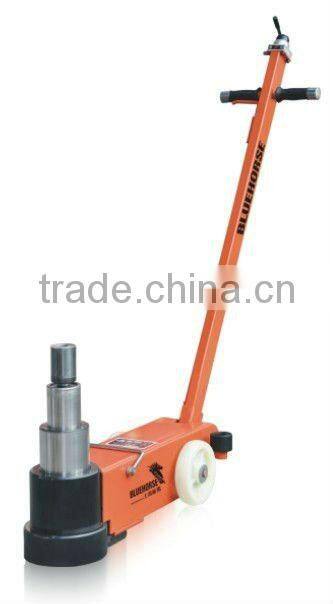

Pneumatic Hydraulic Jack
-----QD100-B
Automobile Vehicle Maintenance Equipment
-----TOJUST(HEBEI)Machinery and Electrical Equipment Co.,Ltd.
-----SHANGHAI BLUE HORSE AUTO IMLEMENTS FACTORY
Pneumatic hydraulic jack,
Pneumatic hydraulic jack, is a new type of LIFTING EQUIPMENT of liquid pressure and telescope hydraulic cylinder assembly, by the use of compressed gas as power.
PRODUCT FEATURES:
Compact design, Small volume, Light weight, Easy operation, Time saving, Labor saving, Large lifting tonnage.
USAGE SCOPES:
Widely used in mobile crane, especially suitable for automible, tractor, the repair of transportation industry.
PRODUCT SPECIFICATIONS
| Model | QD100-B |
| Lifting ability | 100T/50T |
| Rating air Pressure | 0.8-1.2Mpa |
| Minimum Height | 196mm |
| Lifting Height | 86mm,78mm |
| Lengthen Height | 45mm,75mm |
| Working Pressure | 60Mpa |
| Net Weight | 85kg |
| Layer | 2 |

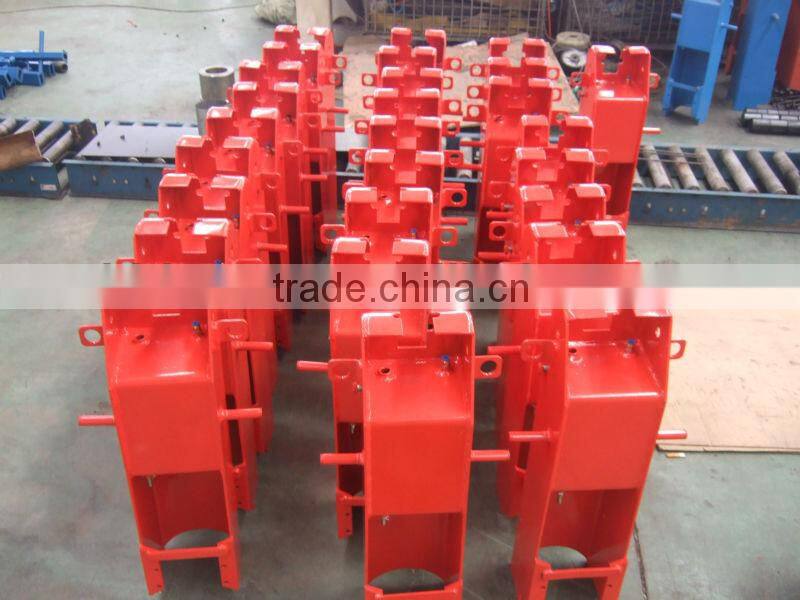

Products Exhibition
Main Operation Methods
| When not in use and save the area, adjust the holding rod to 90° |
When moving, adjust the holding rod to 45°, pull and push it. |
| Whem aim at the working position and the holding rod to the horizontal direction, adjust the position of the jack. |
| Connect the gas in hoisting, air pump in 0.6 cubic meters, diameter more than 8mm. |
| Holding the knife rod, adjust the grip angle. |
| As needs to adjust gears on switch |
| Each time the lengthen top used, to avoid cylinder damage by direct contact of body and cylinder. |
| The oil inlet, with aviation hydraulic oil. Gas amount goes by the height of the oil inlet when jack lays flat. |
Tojust (HEBEI) Machinery And Electrical Equipment Co.,Ltd, is a research and development,production,sales of auto maintenance equipment.which locates in Hebei Xianxian East Economic Development Zone, and covers an area of 63333.65 square meters.
We specializes in producing lift jacks,Post Lift,Gantry Lift, Scissor Lift and Tyre Changer, product sales network throught the country 30 provinces, municipalities, autonomous regions, Europe, the United States and Southeast Asia and other countries.
The Enterprise purpose is With Integrity, Attention to Quality.
Businesss Philosophy: The Pursuit of Excellence, Continuous Improvement, People-Oriented, and Common Development.
More informaitons, please contact us.
