Welcome to visit our website, the specification data of gantry type automatic engraving machinery DX5050 is as followed, if you need other information of our machine, please contact me freely or visit our factory by feild trip.

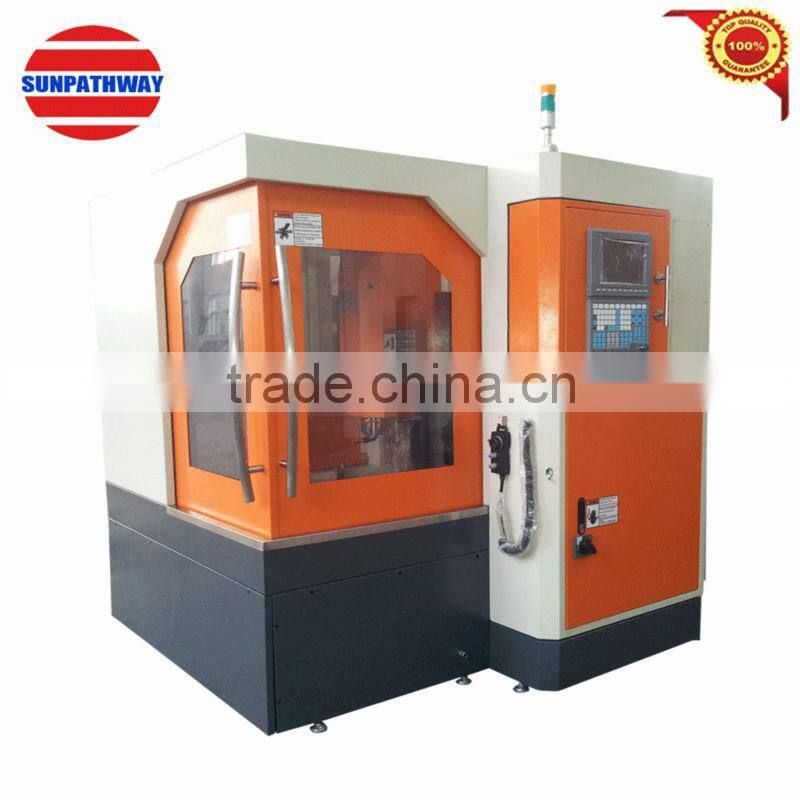

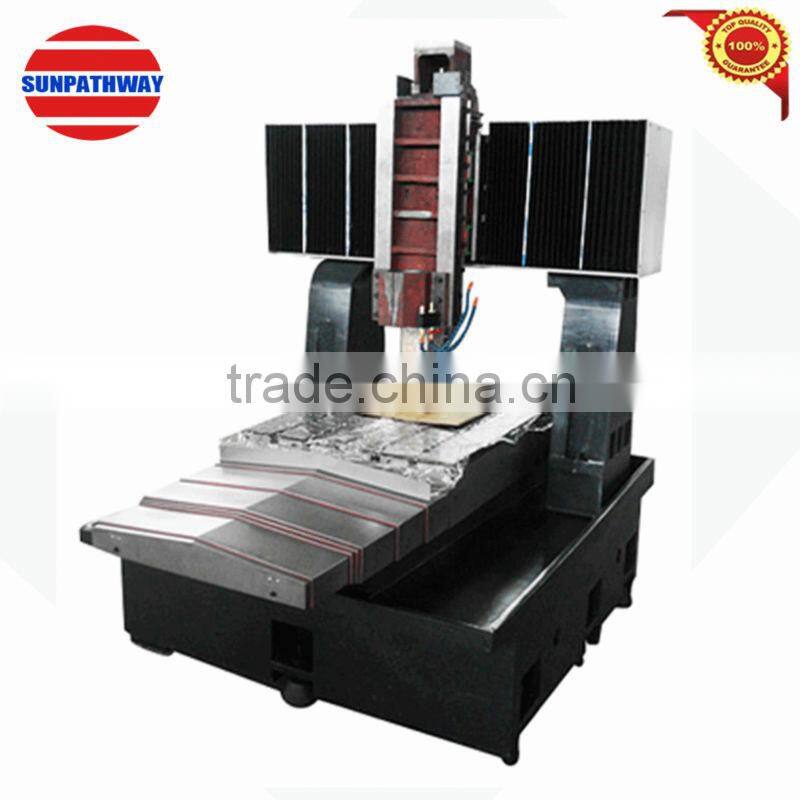

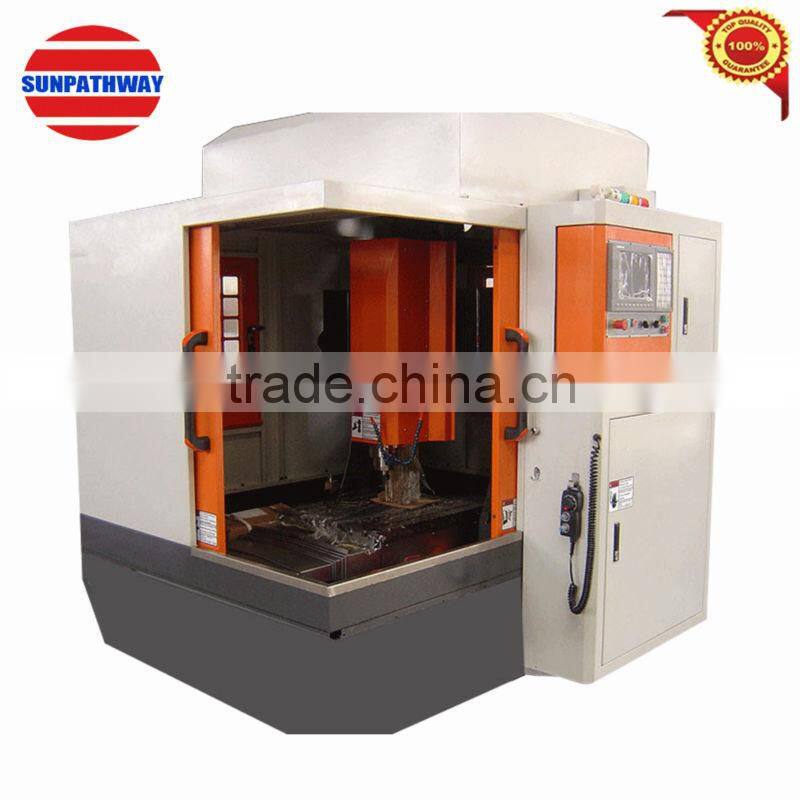

gantry type automatic engraving machinery DX5050
1. Reansonable price gantry type automatic engraving machinery DX5050 Features:
1.The machine tools adopt the resin sand of high-standard stress relieving cast iron.
2.The whole body is gantry frame structure.
3.The linear lead rail of 3-axles may match x-axle.
4.The velocity of movement is fast and the reaction is sensitive.
5.Equipping with the delicated system of high speed engrave milling machine and high speed electric spindle.This makes high precision of processing and good smoothness.
6.Geometric precision and motion precision all proceeded strict laser detect and ball sensing instrument of searching circle detect to guarantee the quality of machine tools.
7.The machine adopts high precision ball screws of Taiwan,straight line rolling lead rail,locking screw nuts,importation twin axletrees and coupler.The retentivity is good.
8.The reaction is sensitive with big torque force of drive motor.
9.It is fit for processing rough,refined and high speed machining.
2. Reansonable price gantry type automatic engraving machinery DX5050 Functions:
1.It is suitable for engraving,milling and drilling compactly all sorts of materials such as steel,copper,aluminum and plastics.
2.It can widely apply to automotive,injection mould,ironware mould and engrave mould industries.
3.Especially designed for engraving and milling molds,eyeglasses,watch,panel,badge,brand,graphics and words of three-dimensional and outside surface's sleeking of large size.
3. Reansonable price gantry type automatic engraving machinery DX5050 Specifications:
Item |
Unit |
DX5050 |
Working table |
mm |
550×500 |
T-slot |
mm |
5-14 |
Spindle speed |
r/min |
3000-24000 |
Spindle power output |
KW |
3.2 |
Spindle(tool diameter range) |
|
Φ3-Φ12 |
X axis |
mm |
500 |
Y axis |
mm |
500 |
Z axis |
mm |
250 |
The minimum distance spindle to table |
|
60 |
Gantry height allowed |
mm |
310 |
Gantry width |
mm |
600 |
Model of screw |
|
3205 |
Model of line rail |
|
X,Y,Z:H25 |
Maximum speed |
mm/min |
8000 |
Positioning precision |
mm |
0.01/300 |
Repeat positioning precision |
mm |
0.003 |
The working table maximum load weight |
kg |
200 |
Machine weight |
kg |
2300 |
4. Reansonable price gantry type automatic engraving machinery DX5050 Mainly configuration:
|
Type NO. |
Name |
Brand Habitat |
Remarks |
1 |
CNC System |
SYNTEC/LNC (Taiwan) |
|
2 |
High-speed electrical spindle |
XINGCHEN |
4KW/3.2KW/Constant Power |
3 |
Drive motor of three axles |
YASKAWA Or Delta |
0.75KW |
4 |
Coupling Shaft |
GUANGDA |
|
5 |
Ball screw of three axles |
C3 level double nuts ball screw of 3 axis |
|
6 |
Beeline rail of three axles |
High Precision beeline guide of HIWIN (Taiwan) |
|
7 |
Lubrication way |
Nanjing (Jiangsu) |
Centralized Oiling |
8 |
Axletree |
Japan of NSK or NACHI |
P4 level of high accurate match axletrees |
9 |
Whole Machine Painting |
Plastic Spraying |
|
10 |
Accurate Round Nuts |
Taiwan |
|
11 |
Shield Of Y-axis |
Domestic |
Stainless Steel |
12 |
Bolts of whole machine |
High Intensity 12.9 Grade |
5.Photos of gantry type automatic engraving machinery DX5050:
6. Production capacity
|
Company Brief Nantong Sunway Technology company is established in 2000year.We are the professional manufacturer of vertical machining center,cnc gantry milling machine,cnc engraving and milling machine,electrical discharge machine and so on.Our machine have been exported to Europe,America,Southeast Asia,Korea and many foreign countries,we also supply OEM service. |
|
Assembly shop of cnc engraving and milling machine |
|
|
Graphite engraving and milling machine(complete) which exported to Brazil DX7070
Angle to open the door, in order to hoist workpiece directly by customer
High speed processing of graphite electrodes or electrode parts |
|
|
Light-weight gantry type engraving and milling machine We can provide OEM service for customers, also can meet the requirements of customers’ custom machine by themselves. LM-1090, X,Y,Z travel: 1000×900×430 mm LM-1311, X,Y,Z travel: 1300×1100×430 mm LM-1613, X,Y,Z travel: 1600×1300×550 mm The spindle installed motorized spindle to became large engraving and milling machine,to repair the light of large molds, carved, save a lot of artificial polishing time. |
|
|
Small CNC gantry type engraving and milling machine LM-1090, X,Y,Z travel:1000×900×430 mm LM-1212, X,Y,Z travel:1200×1200×700 mm LM-1612, X,Y,Z travel:1600×1200×700 mm Spindle BT50,15KW, instead of the Y axis direction to small disadvantage of VMC,especially suitable for square, large width mould, product processing, low prices, high precision, long service life.
|
LM-1612 with tool changer, with oil cooling for spindle |
|
Electrical discharge machine which will be exported to SAMSUNG,Korea Our electrical discharge machine have exported to SAMSUNG (Korea), Brazil, Argentina, Mexico,Turkey and other countries .All machines runs well,they have not broken till now, we always trust”no maintenance service is the best service”. |
|
|
Gantry machining center Using famous brand gantry machining center,is the key point to guarantee the precision and surface finishment of machining face. |
|
|
Metal plate Our metal plate use laser cutting and international advanced welding technique,while supply elegant appearance for surface of machine. |
|
|
Casting Our casting are made for resin sand,grade HT250,we are the sole casting factory which exported to DMG(German) in our domestic and meanwhile we are the supplier of Foxconn(supplier of Apple Inc) and supply 6000 sets casting to Foxconn. |
|
|
Detection of assembling In strict accordance with German standard to do precision detection on our linear rail,ball screw,table surface, to guarantee the integral precision of machine. |
|
Precision detection |
|
|
Laser inspection equipment Owning the advanced laser inspection equipment,which is made in USA,are stable guarantees of improving the quality and precision of machines. |
|
