Help CenterCNC Erosion Machine CNC-OX-860
Related Products
One.Specifications of CNC erosion machine CNC-OX-860:
Machine Type |
Measure |
CNC-OX-860 |
Working table's size(length×width) |
mm |
1100×700 |
Left-to-right travel(X axle) |
mm |
850 |
Front-to-back travel(Y axle) |
mm |
500 |
Spindle travel(Z axle) |
mm |
450 |
The distance from the spindle's under-face to working table |
mm |
500-950 |
Oil tank chamber(length×width×height) |
mm |
1900×1100×600 |
Oil box appearance size(length×width×height) |
mm |
2-2000×1250×550 |
Maximum electrode weight |
kg |
200 |
Working table's bearing capability |
kg |
3500 |
Machine's net weight |
kg |
5000 |
Two.Power Supply Unit:
Current/Type |
Max machining rate |
Min electrode wear rate |
Optimal surface accuracy |
Max input power |
50A/75A/100A |
800 |
0.3% |
0.3um |
8KVA |

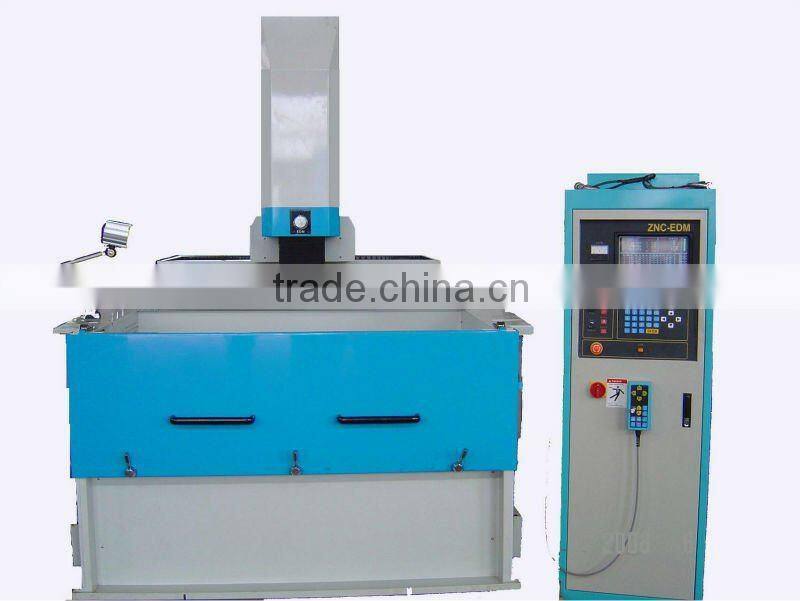

Three.Picture of CNC Electric Discharge Machine CNC-OX-860
Four.Production capacity
|
Company Brief Nantong sunway technology company is established in 2000year.We are the professional manufacturer of vertical machining center,cnc gantry milling machine,cnc engraving and milling machine,electrical discharge machine and so on.Our machine have been exported to Europe,America,Southeast Asia,Korea and many foreign countries,we also supply OEM service. |
|
|
Assembly shop of vertical machining center We follow strict assembly technique after we check each parts are eligible.
|
|
|
Assembly shop of cnc engraving and milling machine
|
|
|
Complete engraving and milling machine After finishing leave factory testing,we will use waterproof and anti extrusion to protect the machine’s safety during transportation. |
|
|
Gantry milling machine We could supply OEM service and custom design service. |
|
|
Electrical discharge machine which will be exported to SAMSUNG,Korea Our electrical discharge machine have exported to SAMSUNG(Korea), MAKINO(Japan),Brazil,Argentina,Mexico,Turkey.All machines runs well,they have not broken till now,we always trust”no maintenance service is the best service”. |
|
|
Metal plate Our metal plate use laser cutting and international advanced welding technique,while supply elegant appearance for surface of machine. |
|
|
Casting Our casting are made for resin sand,grade HT250,we are the sole casting factory which exported to DMG(German) in our domestic and meanwhile we are the supplier of Foxconn(supplier of Apple Inc) and supply 6000 sets casting to Foxconn. |
|
|
Gantry machining center Using famouse brand gantry machining center,is the key point to guarantee the precisio and surface finishment of machining face. |
|
|
Detection of assembling In strict accordance with German standard to do precision detection onour linear rail,ball screw,table surface, to guarantee the integral precision of machine. |
|
|
Precision detection
|
|
|
Laser inspection equipment Owning the advanced laser inspection equipment,which was made in USA,are stable guarantees of improving the quality and precision of machines..
|
|
