Chocolate coating line in Shanghai confectionery machinery
1. Application:
The enrobing line is to coat chocolate on various food such as biscuit, wafers, eggrolls, cake pie and snacks, etc.
There are following special devices for option also:
Automatic feeder: to simplify the feeding of biscuits or wafers etc to the enrobing wiremesh, inprove production effciency of 1/3;
Granular sprinkler: to sprinkle sesame or peanut granulars on the enrobing products;
Decorator: to decorate zigzags or stripes of different color on the surface of enrobing products.
2.Coating machine flowchart:
3. Parameters:
Model |
QKT-600 |
QKT-900 |
QKT-1200 |
|
Wiremesh and belt width (mm) |
600 |
900 |
1200 |
|
Wiremesh and belt speed (m/min) |
1-6 |
1-6 |
1-6 |
Refrigeration unit |
3 |
4 |
5 |
Cooling tunnel length (m) |
14 |
17 |
20 |
Cooling tunnel temperature |
2-10 |
2-10 |
2-10 |
Total power (Kw) |
16.5 |
22.87 |
28.5 |
Gross weight(Kg) |
2300 |
3200 |
4050 |
Overall dimension(mm) |
17500*950*1800 |
21500*1200*1800 |
25500*1450*1800 |

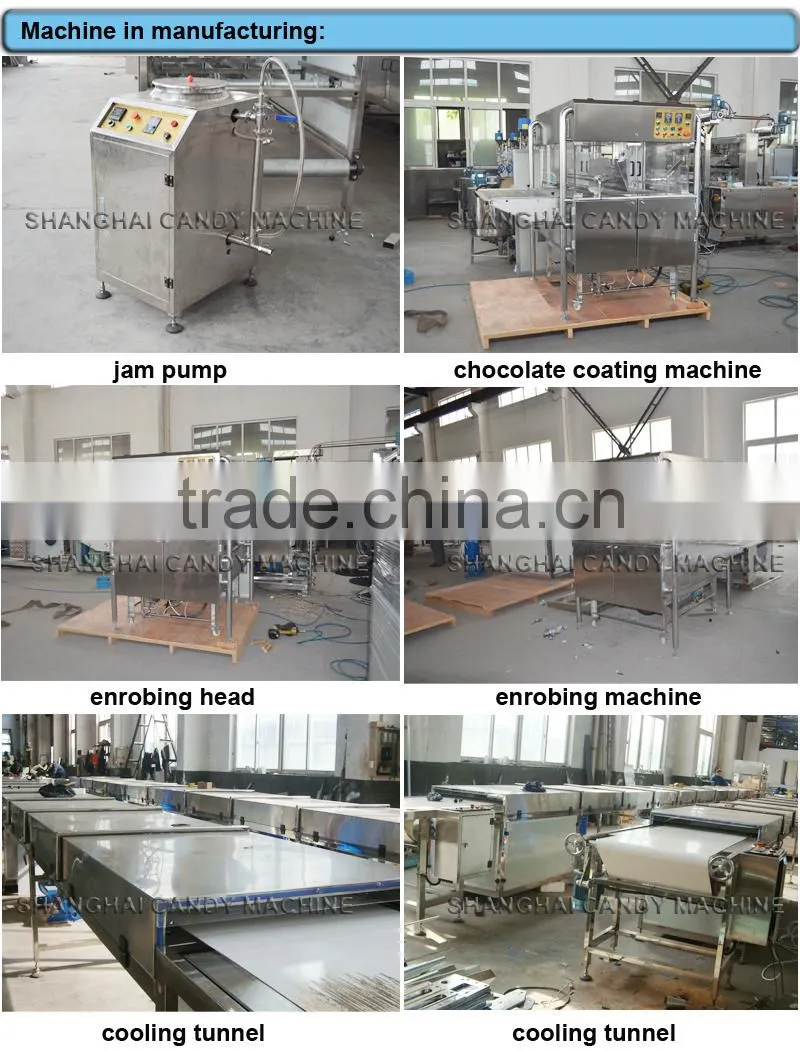

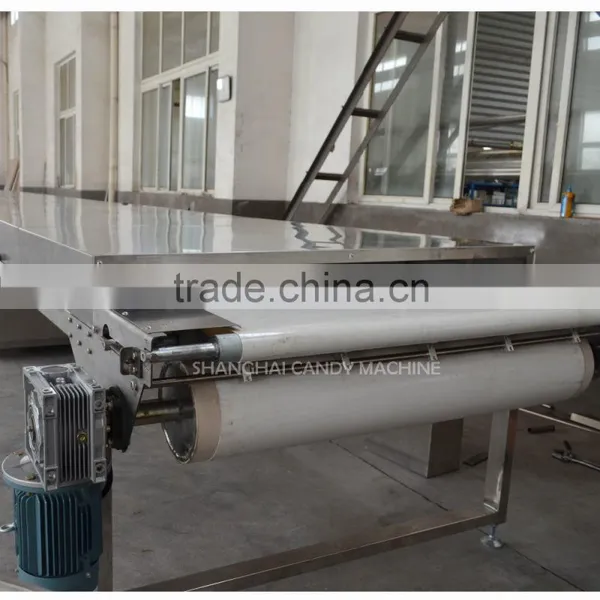

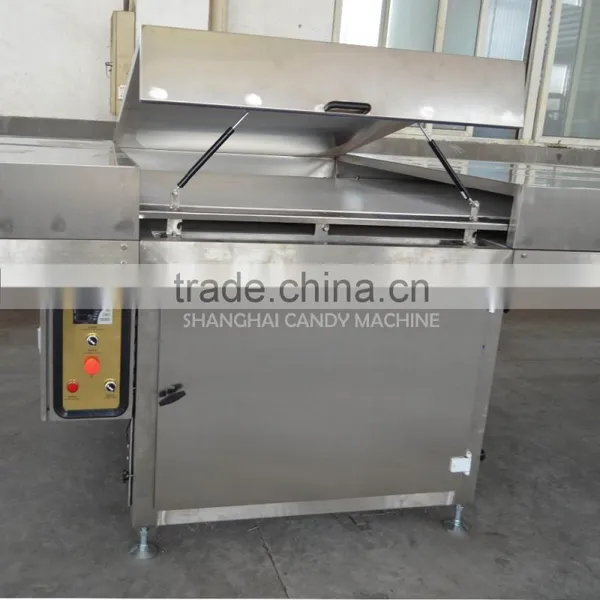

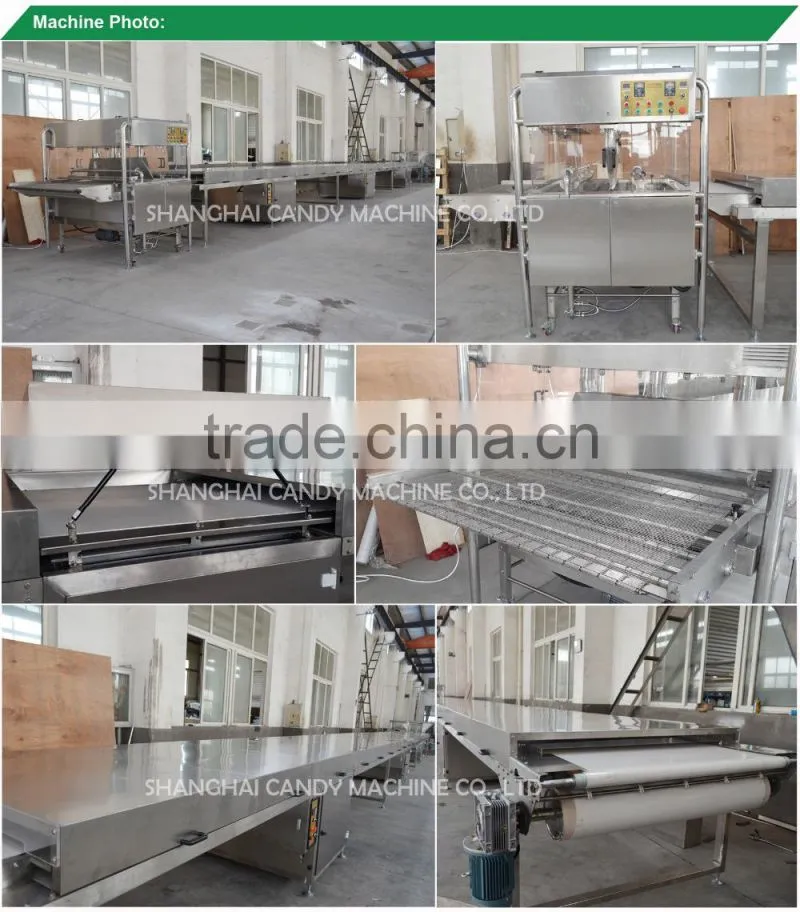

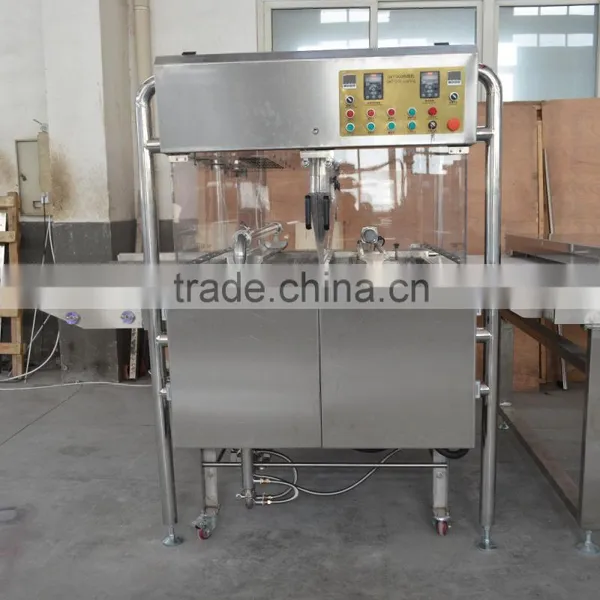

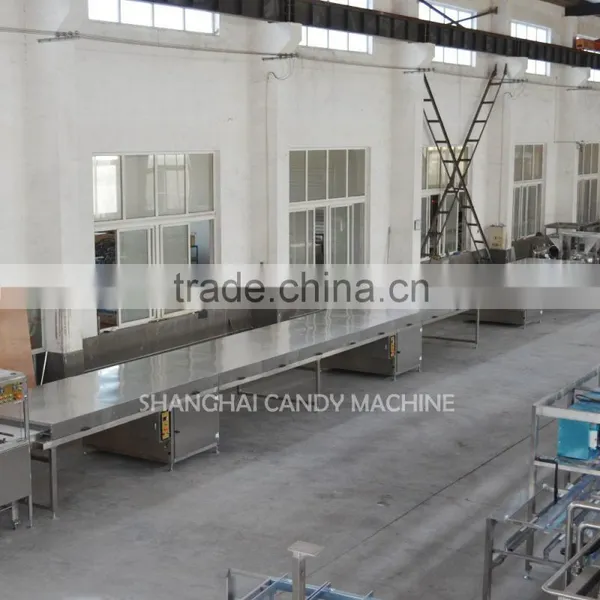

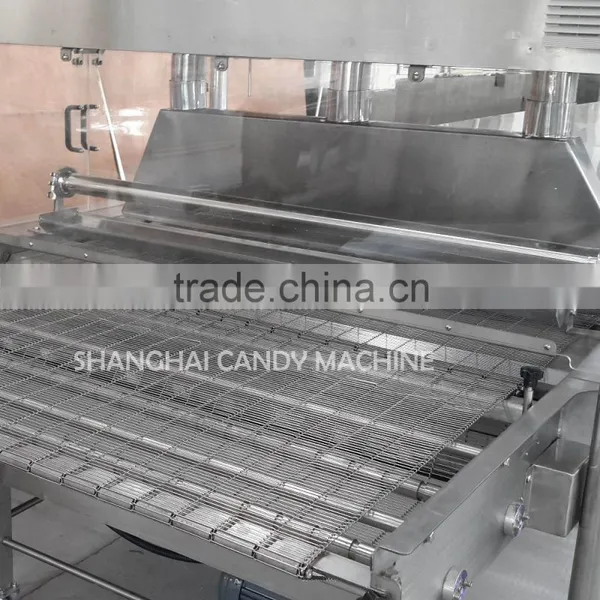

4. Photos of this line:
Why choose us:
* 13 years focus on confectionery /candy machines research;
* Advanced CNC production equipments;
* Main material use stainless steel 304;
* International brand for machine parts;
* Exported to more than 20 countries;
* Experienced technician for installation;
* Experienced sales person for consulation before and after sales.
Chocolate coating line in Shanghai confectionery machinery

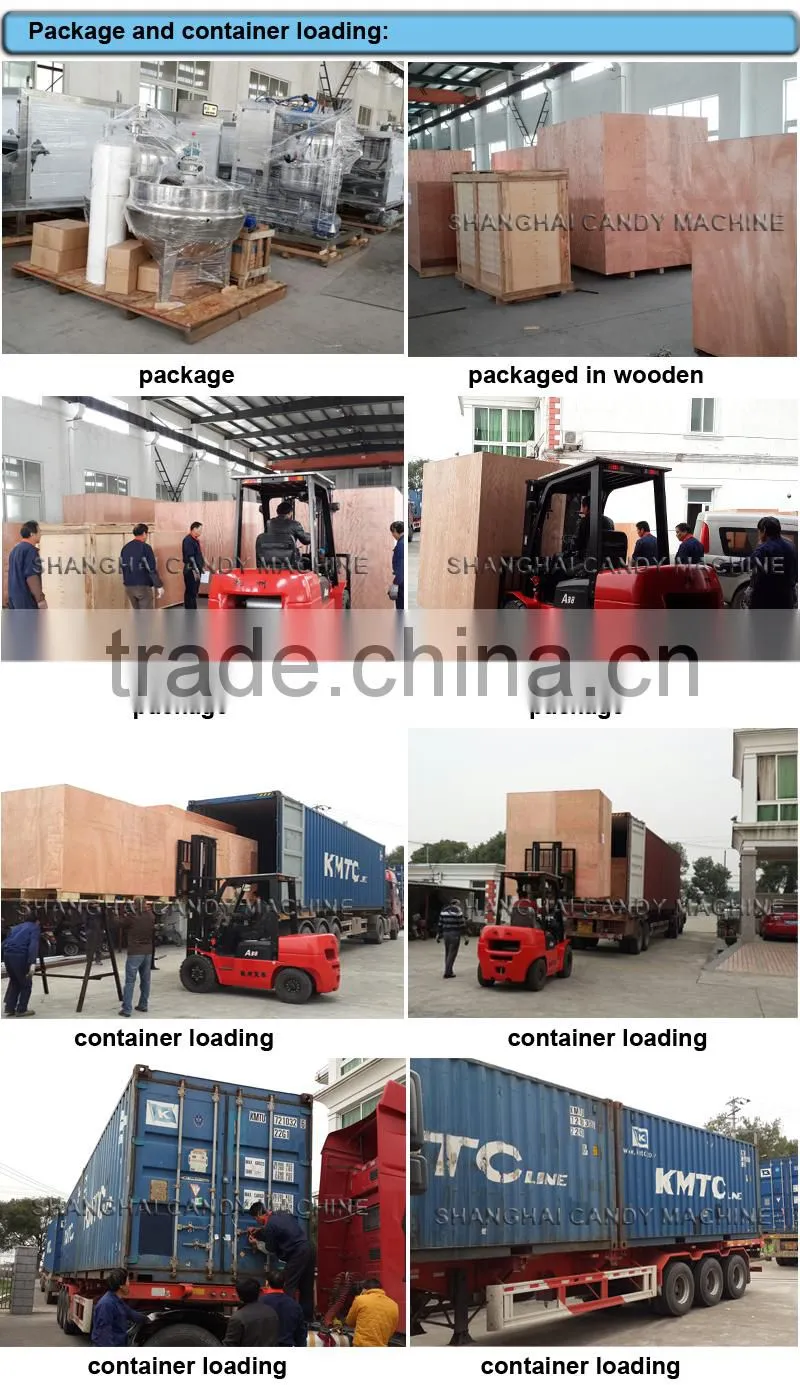

1. Package: exporting wooden box
2. Delivery time: 60-90 days after order
3. Shipment: by sea or air
Installation service:
We will send one or two technical staffs to process the supervising of installation and debugging, training the operator for a period of about 15 days.
Purchaser has to bear the cost of return tickets by air, accommodation, besides, purchaser needs to pay a daily allowance per day per technical staff during the stay in purchaser area.
Warranty:
We will provide 12 months quality warranty from the delivery date.
