Home > Manufacturing & Processing Machinery > Machine Tools > Punching Machine > "OHA" Brand DMT-200 High Quality Cnc Hole Punch Press Machine,Precision Servo Control Turret Punch Press , Turret Punch Press

"OHA" Brand DMT-200 High Quality Cnc Hole Punch Press Machine,Precision Servo Control Turret Punch Press , Turret Punch Press

US$ 2,500 - 15,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

CNC or Not:

CNC

Power Source:

Mechanical

Contact Supplier Request Quote Chat Now

OHA Machinery Industry & Trade (Shanghai ) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

CNC or Not CNC

Power Source Mechanical

Place of Origin Shanghai, China

Brand Name OHA

Model Number DMT-200

Voltage Customized

Power(W) 11kw

Weight 4500kg

Dimension(L*W*H) 1000mmx1000mmx1900mm

Certification CE ISO

Warranty One Year

After-sales Service Provided Engineers available to service machinery overseas

"OHA" Brand DMT-200 High Quality Cnc Hole Punch Press Machine,

Precision servo control turret punch press , Turret Punch Press

Product Description

Manufacturing: OHA MACHINERY GROUP

TRADE: OHA INDUSTRY & TRADE (SHANG HAI )CO.,LTD

Address: Room 513, No. 333 Jingang Road, Pudong District, Shanghai, 201206, China

Tel: 0086-21-58760289 Fax: 0086-21-58760089

Skype: ohasales2*

Web:

Facebook: /ohachina

Youtube: /channel/UCRAhjJk_hAUEUjfqKrC_CFg

E-mail: sales2*

Mobile/WhatsApp/Viber:+86-156 1774 7835 ( 7x24h Hot Line)

Technical Data of CNC Turret Puch Machine with high accuracy, amada turret punching machine

Specification			Unit	DMT-200	DMT-300	DMT-300B
Punch Force			Kn	200	300	300
Max. Processing Sheet Size(with one reposition)			mm	1250x5000	1250x5000	1250x5000
Max. Processing Sheet Thickness			mm	3.2 brush worktable	3.2 brush worktable	6.35 steel ball worktable
Max. Punch dia. Per once			mm	φ88.9	φ88.9	φ88.9
No. of station			No.	32	32	32
Hole Accuracy			mm	±0.10	±0.10	±0.10
Max. sheet moving speed (sheet with 1mm thickness)	X axes		m/min	100	100	100
Max. sheet moving speed (sheet with 1mm thickness)	Y axes		m/min	80	80	80
Max. Punch Hit at 25mm pace & 4mm stroke			hpm	1000	1000	1000
Max. Punch Hit at 25mm pace & 4mm stroke		X axes	hpm	500	500	500
Max. Punch Hit at 25mm pace & 4mm stroke		Y axes	hpm	400	400	400
Turret Rotating Speed			rpm	30	30	30
CNC System				BECKHOFF	BECKHOFF	BECKHOFF
Controlling Axis			No.	7	7	7
Both of the models mentioned above can be designed into the stroke of 1500mm

—Features
1. DMT-200/300 Series Dual- Motor Driven CNC Turret Punch Machine, featuring with superior performance and remarkable characteristics, becomes the new trend and orientation of the global development of CNC turret punch machine.

2. Energy saving.

3. High punching efficiency.

4. Low maintenance cost.

5. Low noise pollution.

6. Higher reliability.

—Performance Comparision

Using 4 sets of tooling φ 16mm, φ 18mm, φ 20mm, and φ 23mm with ram stroke of 6mm to punch the sheet with thickness of 2mm and punch holes of 400 times respectively.

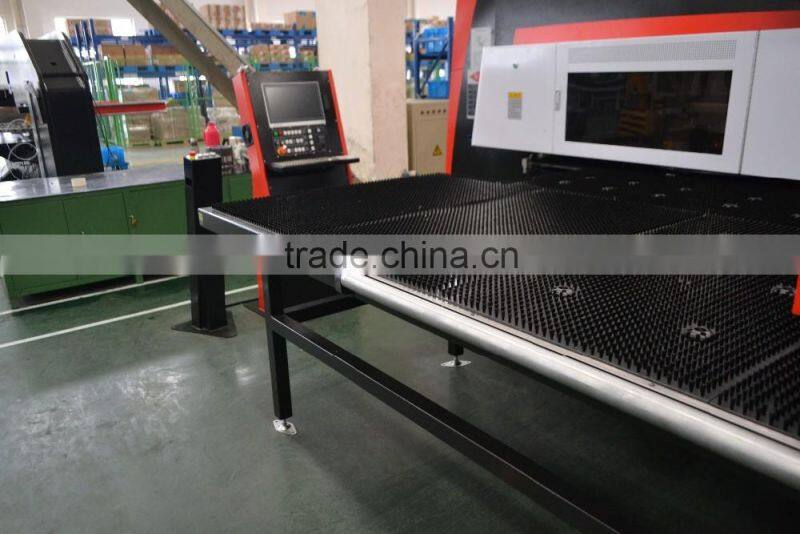

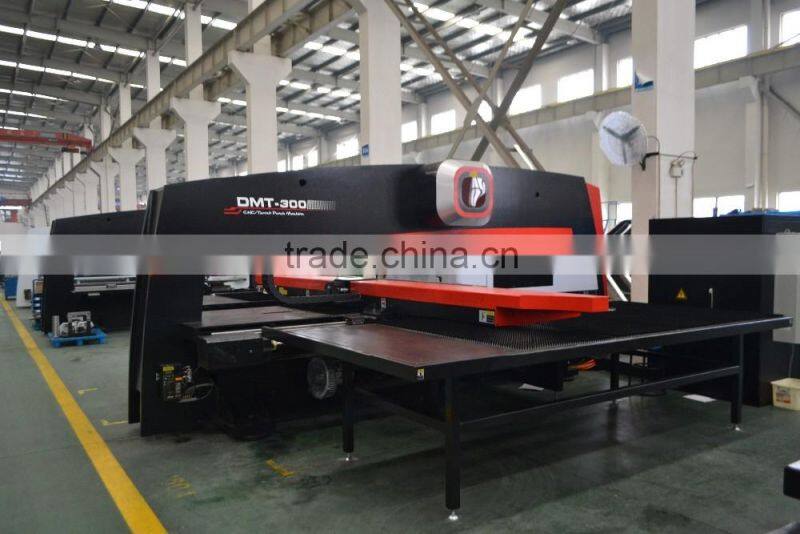

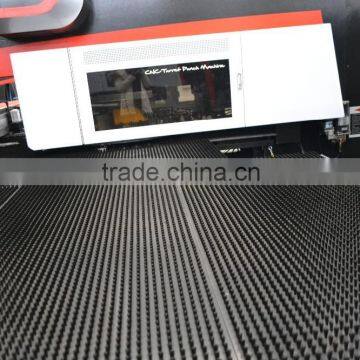

I. Front view of CNC Turret Puch Machine with high accuracy, amada turret punching machine

II. Rear view of CNC Turret Puch Machine with high accuracy, amada turret punching machine

III. CNC System of CNC Turret Puch Machine with high accuracy, amada turret punching machine

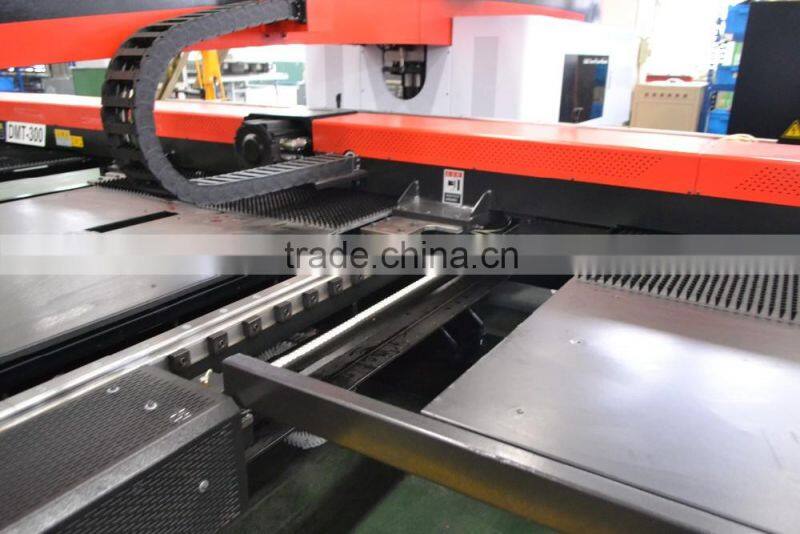

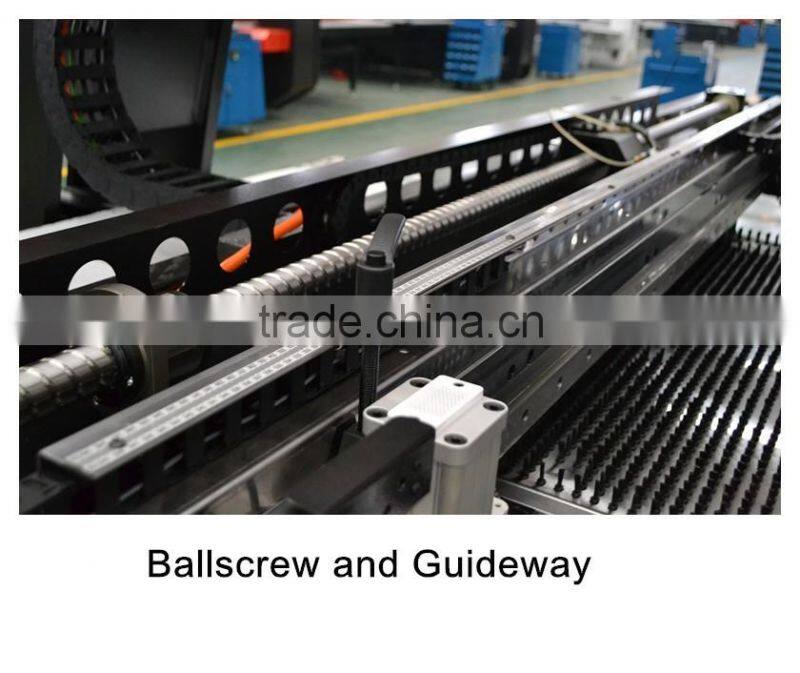

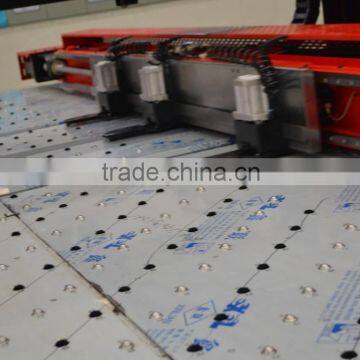

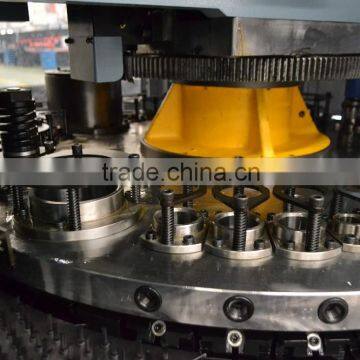

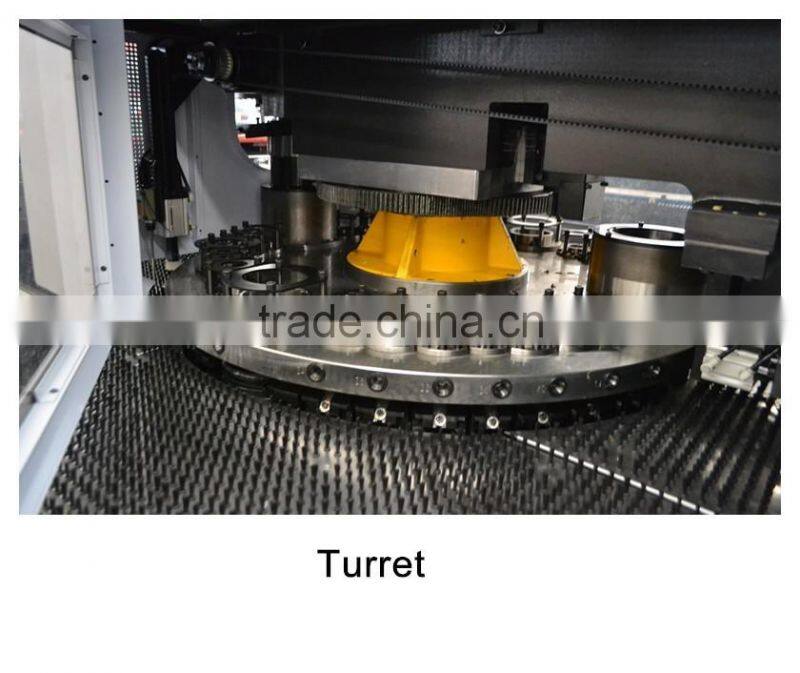

IV. The details of CNC Turret Puch Machine with high accuracy, amada turret punching machine

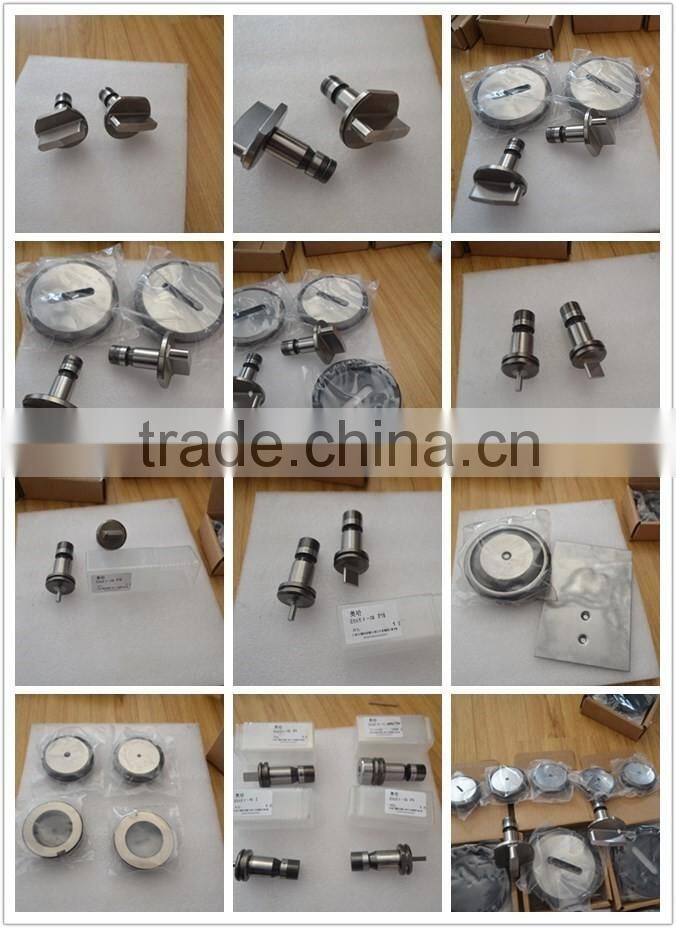

V. Customized Mould of CNC Turret Puch Machine with high accuracy, amada turret punching machine

Color	Any color is available
Logo	Customized Logo for CNC Turret Puch Machine with high accuracy, amada turret punching machine
MOQ	Small MOQ,1 SET for CNC Turret Puch Machine with high accuracy, amada turret punching machine
Delivery Time	(1) 30-60 days –If you want to customize your request (2) 25 days – For our Standard
OEM Accepted	Yes
Certification available	Yes
CNC System	Delem, ESTON ……
Packing Details	20GP, 40GP, 20 OT or LCL
Production Capacity	500/sets CNC Turret Puch Machine with high accuracy, amada turret punching machine Per Month
Payment Term	L/C, T/T, D/A, WESTERN UNION, MONEY GRAM

Packaging & Shipping

Our Services

You can contact me at anytime,we will provide you fast and professional service

Advantage

1. Competitive price: It is can meet your budget and best-selling business very well.

2. OEM Accepted: We can produce any your request design.

3. Good Service: We treat clients as friends.

4. Good Quality: We have strict quality control system. Good reputation in the market.

5. Fast & Delivery: We have big discount from forwarder (Long Contract).

Our Innovation

Quality & Service: At OHA, our #1 priority has always been providing our clients with great quality products and superior customer service.

Quick lead Time: We’re dedicated to providing the quickest turn-around times and work very hard to ensure that all of your deadlines are met

Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the saving over to you!

Brand Awareness: The goal of any strong brand is achieve a level of awareness that instills the idea of quality and value into all of your potential customers.

Special Offers:In order to maintain our competitive edge, we are constantly running special offers on our Best –selling press brake, forging equipment goods and design services. Contact our sales term to see how we can help you save a lot of money.

General Order Information

We take great pride in our work and in the wide variety of products that we offer. We are experienced in servicing the Southeast Asia market, South America, European market and Africa market. Please be aware that our production lead times depend on specific items and item quantities.
