Folding Electric Bicycle

US$ 350 - 390 MOQ: 1 Piece

Key Specifications

Wattage:

200 - 250w

Voltage:

36V

Power Supply:

Lithium Battery

Yongkang Mars Vehicle Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo

Delivery Detail:

Delivery time depends on order quantity.

Wattage 200 - 250w

Voltage 36V

Power Supply Lithium Battery

Wheel Size Other, 20“

Motor Brushless

Certification CE

Frame Material Aluminum Alloy

Foldable Yes

Max Speed Other, <30km/h

Range per Power 10 - 30 km

Place of Origin Zhejiang, China

Brand Name HXR

Model Number TDN01Z

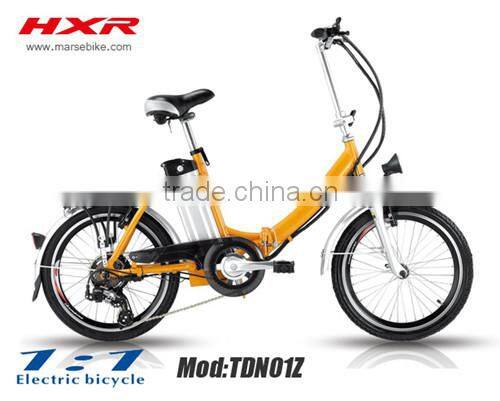

20inch folding electric bicycle

Products detai as follow :

Electric system
Motor	250W Brushless
Battery	Lithium 24v/36v 10ah
Charger	220 / 110V, 50 - 60Hz
PAS	1:1 intelligent pedal assistant system
Throttle	Twist intelligent speed throttle
Controller	Intelligent controller(lishui)
Main Components
Frame	6061 Aluminum alloy
Tyres	20x1.75(Kenda/CST)
Rim	Al alloy double wall , CNC side wall
Front fork	Al alloy fork
F/R brake	V-brake
Speed gears:	6-class Shimano
Spokes	Stainless spokes
Mudguard	fender(bikeman)
Handlebar	Al alloy (zoom)
Stem	Al alloy (zoom)
Brake lever	Al alloy with power off switch.
Chain	Rust resistant chain KMC
Saddle	city style saddle
Seat post	Al alloy with suspension
Pedal	foldable
lights	F/R LED lights Spanniga
Display	LED-display (kingmeter 790)
Performance
Max speed	25km/h
Driving distance	45-70KM
Charging time and life	6-8 hours,>500 times
Max loading	125kg
G.W./N.W.	28/23Kg
Product size	1545×600×990mm
Packing size	1300×270×640mm
