High Quality 28' City 700c Electric Bike With EN15194 (TDB19Z)

High Quality 28' City 700c Electric Bike With EN15194 (TDB19Z) photo-1
US$ 450 - 490 MOQ: 72 Pieces
Key Specifications
Get Latest Price
Wattage:
200 - 250w
Voltage:
36V
Power Supply:
Lithium Battery
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai ningbo
Delivery Detail:
Delivery time depends on order quantity.
Wattage 200 - 250w
Voltage 36V
Power Supply Lithium Battery
Wheel Size Other, 28”
Motor Brushless
Certification CE
Frame Material Aluminum Alloy
Foldable No
Max Speed Other, <30km/h
Range per Power 31 - 60 km
Place of Origin Zhejiang, China
Brand Name HXR
Model Number TDB19Z

high quality 28' City 700c electric bike with EN15194 (TDB19Z)

Electric system
Motor 250W Brushless(8fun)
Battery Lithium 24v/36v 10ah (king-co)
Charger 220 / 110V, 50 - 60Hz
PAS 1:1 intelligent pedal assistant system
Controller   Intelligent controller(lishui)
Main Components
Frame  6061 Aluminum alloy
Tyres 40-622(700×38C)(Kenda/CST)
Rim Al alloy double wall , CNC side wall
Front fork al alloy  fork(ZOOM)
F/R brake F:V-brake ,R:Roller brake
Speed gears: SHIMANO NEXUS inner 3 speed
Spokes Stainless spokes
Mudguard  fender(bikeman)
Handlebar Al alloy  (zoom)
Stem Al alloy  (zoom)
Brake lever Al alloy with power off switch.
Chain Rust resistant chain KMC
Saddle city style saddle
Seat post Al alloy with suspension
Pedal foldable
lights F/R LED lights Spanniga
Display LED-display(king meter790)
Performance
Max speed 25km/h
Driving distance 45-70KM
Charging time and life 6-8 hours,>500 times
Max loading 125kg
G.W./N.W. 31/25Kg
Product size 1940×635×1195mm
Packing size 1550×270×820mm

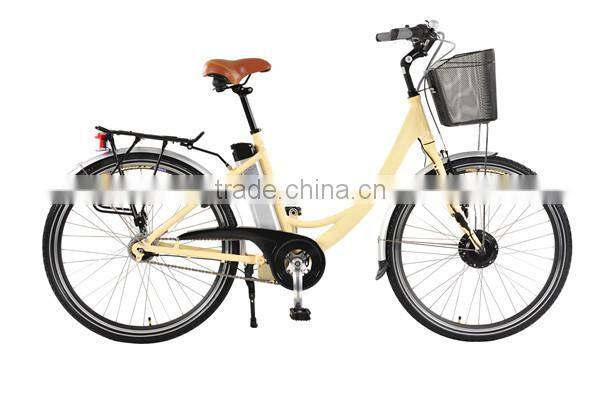

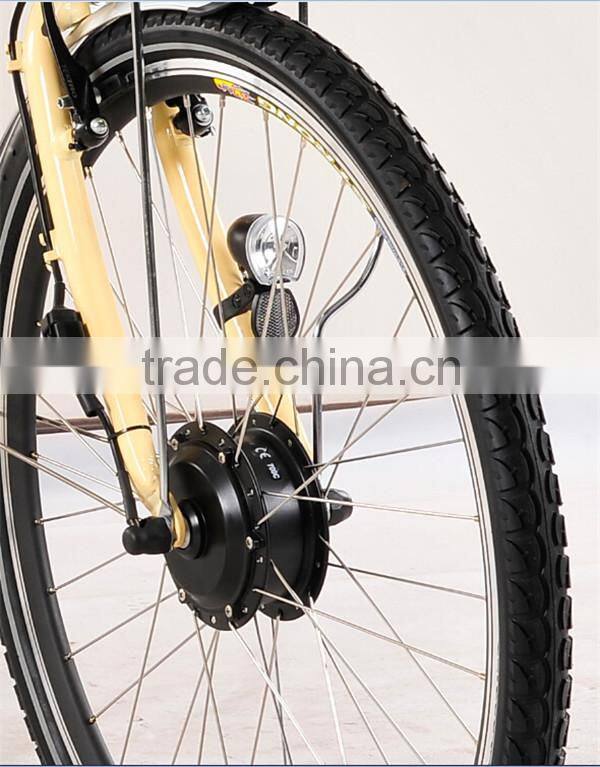

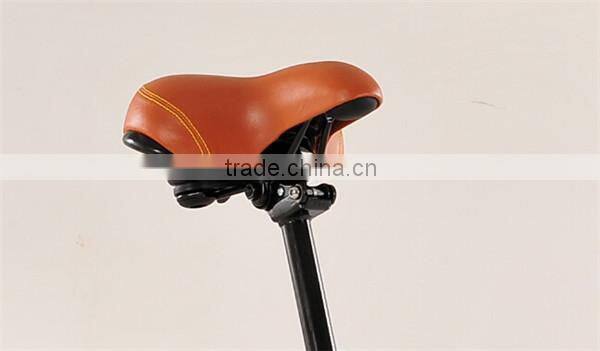

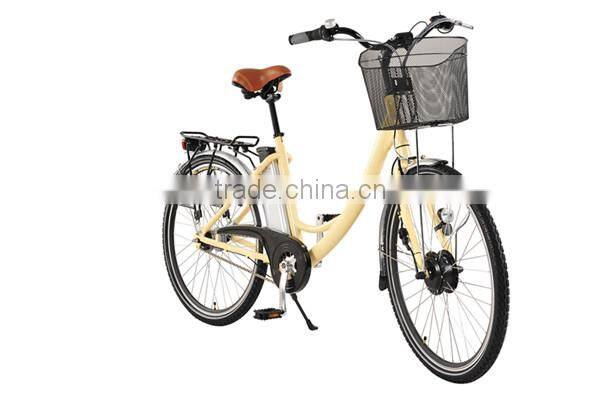

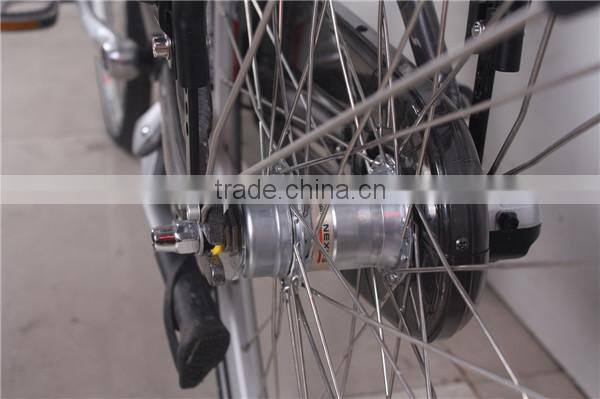

                         Photoes show

high quality 28' City 700c electric bike with EN15194 (TDB19Z)



high quality 28' City 700c electric bike with EN15194 (TDB19Z)



high quality 28' City 700c electric bike with EN15194 (TDB19Z)



high quality 28' City 700c electric bike with EN15194 (TDB19Z)



high quality 28' City 700c electric bike with EN15194 (TDB19Z)



high quality 28' City 700c electric bike with EN15194 (TDB19Z)





high quality 28' City 700c electric bike with EN15194 (TDB19Z)





high quality 28' City 700c electric bike with EN15194 (TDB19Z)
