Professional manufacturing factory for all kinds of candy equipment
Advanced servo driven jelly depositing machine
1. Product introduction:
This processing line is an advanced and continuous plant for making different sizes of gelatin (pectin or Carrageen) type soft candies in different shapes ( popular gummy bears, coloa bears, fruit shapes, alphabet shape etc). It can also produce hard candies by replacing molds.
It designed for making one or two colors jelly candy, and high-degree automation to the purpose of saving time ,labor and space to reduce the production cost. It is an ideal equipment for producing the good quality candies.
2.Specification:
| Moldel | SGDQ150 | SGDQ300 | SGDQ450 |
| Production capacity (Kg/h) | 150 | 300 | 450 |
| Stroke speed (n/min) | 60 | 60 | 60 |
| Power (kw) | 8 | 12 | 16 |
| Voltage (v) | 380 | 380 | 380 |
| Compressed air consumption (m3/min) | 0.2 | 0.25 | 0.3 |
| Compressed air pressure (Mpa) | 0.4~0.6 | 0.4~0.6 | 0.4~0.6 |
| Weight of each candy(two colors) (g) | 1~6 | 1~6 | 1~6 |
| Weight of each candy(center filling) (g) | 1~6 | 1~6 | 1~6 |
| Total weight (kg) | 4000 | 5000 | 5000 |

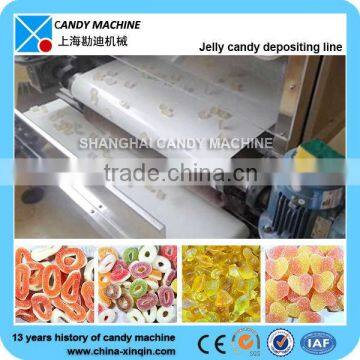

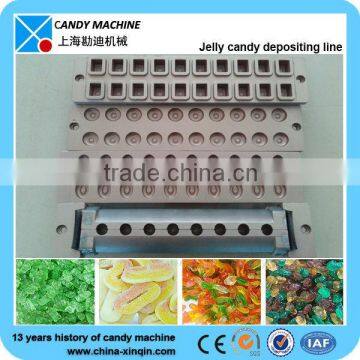

3. Machine Photos:
Why choose us:
* 13 years focus on confectionery /candy equipment research;
* Advanced CNC production equipments;
* Main material use stainless steel 304;
* International brand for machine parts;
* Exported to more than 20 countries;
* Experienced technician for installation;
* Experienced sales person for consulation before and after sales.
Installation service:
We will send one or two technical staffs to process the supervising of installation and debugging, training the operator for a period of about 15 days.
Purchaser has to bear the cost of return tickets by air, accommodation, besides, purchaser needs to pay a daily allowance per day per technical staff during the stay in purchaser area.
Warranty:
We will provide 12 months quality warranty from the delivery date.
