Home > Manufacturing & Processing Machinery > Cutting & Fold-bend Machine > Bending Machine > "OHA" Section Bender THW24/45

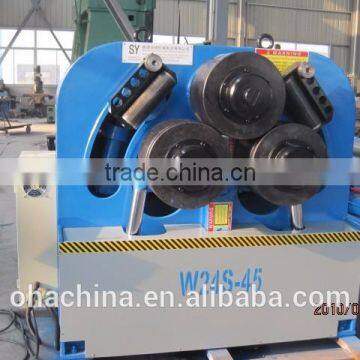

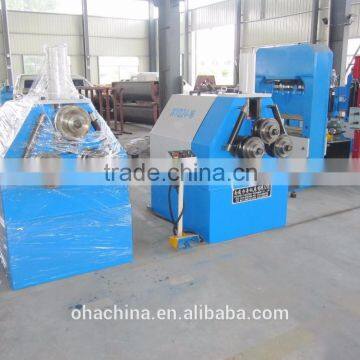

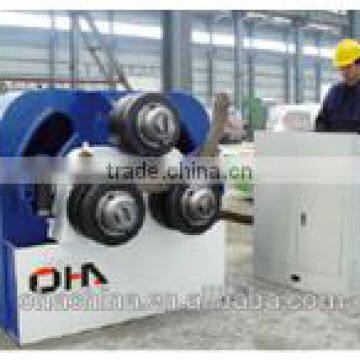

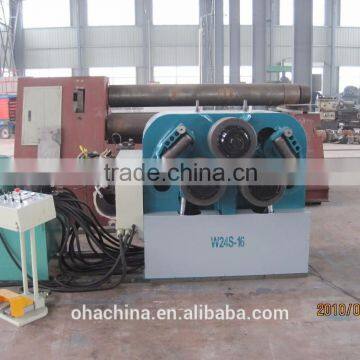

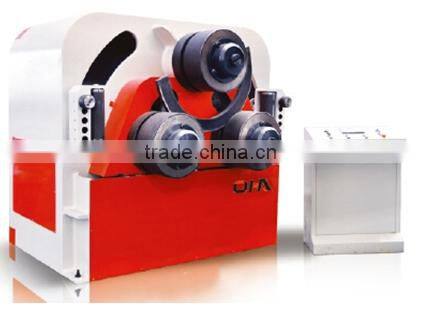

"OHA" Section Bender THW24/45

"OHA" Section Bender THW24/45 thumbnail-3

"OHA" Section Bender THW24/45 thumbnail-4

"OHA" Section Bender THW24/45 thumbnail-5

"OHA" Section Bender THW24/45 thumbnail-6

US$ 17,175 - 30,345 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

China

Brand Name:

OHA

Contact Supplier Request Quote Chat Now

OHA Machinery Industry & Trade (Shanghai ) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin China

Brand Name OHA

Model Number THW24/45

Machine Type Beading Machine

Raw Material Sheet / Plate Rolling

Material / Metal Processed Stainless Steel

Power Hydraulic

Automation Automatic

Extra Services Machining

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

"OHA" Section bender THW24/45

Product Description

Section bender W24-45 is special used in the volume curved angle steel, channel steel, I-steel, flat steel, round steel, side steel and so on, each kind of profiled bar highly effective processing equipment, and may onetime winding circle, corrective round working procedure, widely used in the petroleum, chemical industry, water and electricity, shipbuilding and machine manufacturer and so on.

Two lower rollers of the machine are primarily transmission roller, also the three work rollers primarily are transmission roller. Two side rollers revolve the fixed center of rotation to make the vibratory movement. Two sides are equipped with roller equipment. It is advantageous in guaranteeing the asymmetrical section molding volume system quality of winding. The structure of the machine is advanced, reliable, small volume, complete function. It’s the present equipment in domestic and abroad. The machine may be equipped with advanced general or special purpose molds and easy operation, high efficiency, warmly welcome by the customer.

II. Specification

Main technical data	W24-45
Max anti-winding cross-section moulds		45cm3
Winding speed		5m/min
Yield strength		<=245Mpa
Angle steel Internal winding	Max cross-section	10010016mm
	Min winding dia	1500mm
	Min cross-section	36365mm
	Min winding dia	600mm
Angle steel External winding	Max cross-section	909010mm
	Min winding dia	1200mm
	Min cross-section	35353mm
	Min winding dia	500mm
Channel steel Internal winding	Model	20
Channel steel Internal winding	Min winding dia	900mm
Channel steel External winding	Model	18
Channel steel External winding	Min winding dia	1000mm
Flat steel Internal winding	Max cross-section	180*25mm
Flat steel Internal winding	Min winding dia	800mm
Flat steel External winding	Max cross-section	90*25mm
	Min winding dia	900mm
	Outline dimension	2.11.191.3mm
Round steel	Max dia	55mm
Round steel	Min winding dia	800mm
Round tube	Max dia	80mm
	Max thickness	6mm
	Min winding dia	900mm
Square tube	Max cross-section	70*4mm
Square tube	Min winding dia	1000mm

III. Payment & Delivery time

30% down payment by T/T, the rest by T/T before delivery. 25 days after receiving the down payment.

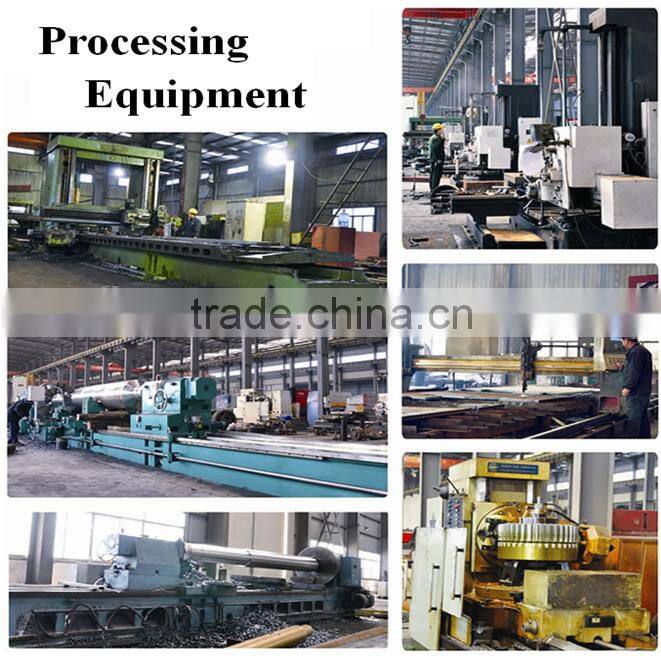

IV. Factory

V. After-sales Service
1. Our product is life-time warranty from B/L Date. If any component is damaged during 12months from B/L date, we can send the component to the customer By DHL, TNT freely.
2. Our factory can send engineers to the customer’s factory for installation, commission and training freely .The customer provide the round trip tickets, visa fee and local fare for our engineer. The customer also can send engineers to our factory to learn the operation and maintains freely.
3. Our factory provides the service for the customer forever. If the customer need operation help, can contact us by Skype, Email and Telephone at any time, we provide 24h on-line service.

Certifications

After-sales Service
1. Our product is life-time warranty from B/L Date. If any component is damaged during 12months from B/L date, we can send the component to the customer By DHL, TNT freely.
2. Our factory can send engineers to the customer’s factory for installation, commission and training freely .The customer provide the round trip tickets, visa fee and local fare for our engineer. The customer also can send engineers to our factory to learn the operation and maintains freely.
3. Our factory provides the service for the customer forever. If the customer need operation help, can contact us by Skype, Email and Telephone at any time, we provide 24h on-line service.
