Help Center"OHA" CNC&NC Bending Machine, Tube Bending Machine
Related Products
-
"OHA" CNC&NC Bending Machine, Bend Art Bending MachinesUS$ 5,129 - 19,675MOQ: 1 Set -
"OHA" Section Bender THW24/6US$ 17,175 - 30,345MOQ: 1 Set
-
"OHA" CNC&NC Bending Machine, Manual Hydraulic Pipe Bending MachineUS$ 5,129 - 19,675MOQ: 1 Set
-
"OHA" THW24/180, Profile BenderUS$ 17,175 - 30,345MOQ: 1 Set
-
"OHA" CNC&NC Bending Machine, Manual Pipe Tube Bending Pipe BendingUS$ 5,129 - 19,675MOQ: 1 Set
Reference Specification
1. High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service.
2.The machine by the European Union CE certification and ISO quality system certification.
—Price
—Technical Details
SN |

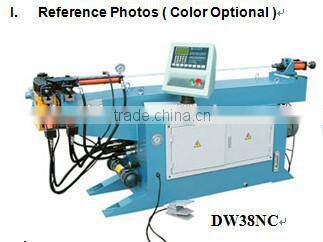

DW38NC |
Specification |
|
1 |
Carbon Steel (Min bending radius: 1.5Dmm) |
Bending capacity |
Φ38.1-2.0mm |
Bending radius |
25-180mm |
||
2 |
Effective through distance |
1800mm |
|
3 |
Max bending angle |
0-195° |
|
4 |
Rotation angle |
360° |
|
5 |
Bending precision |
±0.15° |
|
6 |
Motor power |
4kW |
|
7 |
Rated working pressure |
12MPa |
|
8 |
Dimension |
2700*900*1250mm |
|
SN |

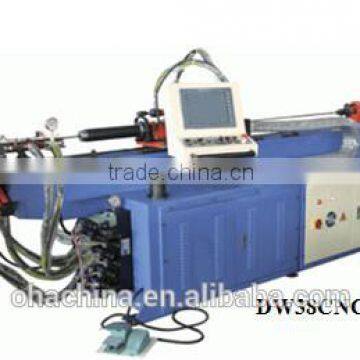

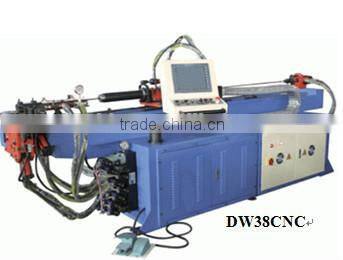

DW38CNC |
Specification |
|
1 |
Carbon Steel (Min bending radius: 1.5Dmm) |
Bending capacity |
Φ38.1-2.0mm |
Max bending radius |
175mm |
||
2 |
Stainless Steel (Min bending radius: 1.5Dmm) |
Bending capacity |
Φ31.75-2.2mm |
Max bending radius |
175mm |
||
3 |
Effective through distance |
2100mm |
|
4 |
Max bending angle |
0-190° |
|
5 |
Working speed |
Rotation |
270°/sec |
Bending |
45°/sec |
||
Feeding |
900mm/sec |
||
6 |
Rotation angle |
360° |
|
7 |
Mechanical Precision |
Feeding |
±0.1 mm |
Rotation |
±0.05° |
||
Bending |
±0.1° |
||
8 |
Motor power |
Rotation |
0.4kW |
Feeding |
1kW |
||
Hydraulic |
5HP |
||
9 |
Dimension |
3600*1600*1300mm |
|
Remarks: FOB Shanghai
Price Validity: 30 days from the date we quote.
Payment Terms: 30% TT as down payment, 70% balanceTT before delivery.
Delivery Time: Within 25 days after receiving the deposit of buy
- After-sales Service
- 1. Our product is life-time warranty from B/L Date. If any component is damaged during 12months from B/L date, we can send the component to the customer By DHL, TNT freely.
- 2. Our factory can send engineers to the customer’s factory for installation, commission and training freely .The customer provide the round trip tickets, visa fee and local fare for our engineer. The customer also can send engineers to our factory to learn the operation and maintains freely.
- 3. Our factory provides the service for the customer forever. If the customer need operation help, can contact us by Skype, Email and Telephone at any time, we provide 24h on-line service.
