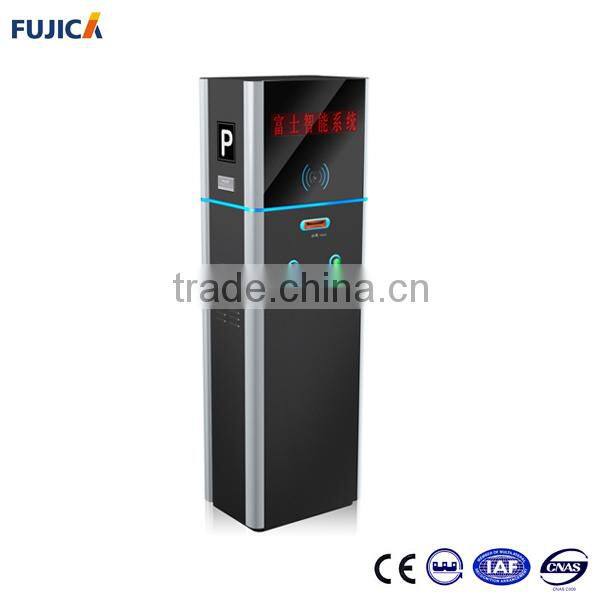

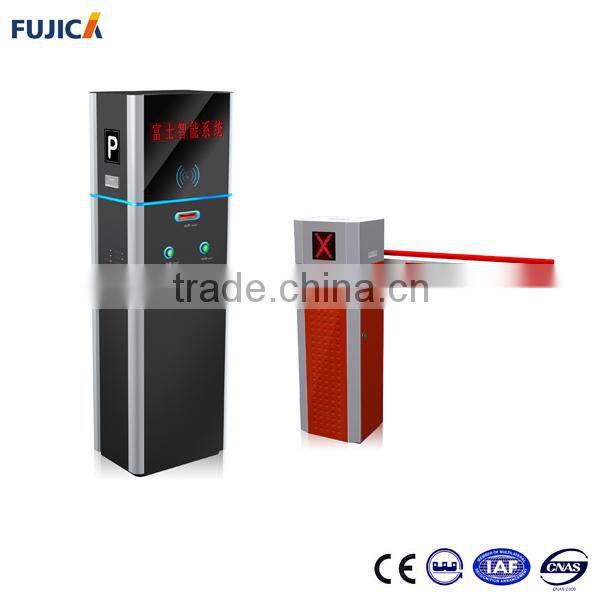

Automated T5 RFID Card Parking Management System

Specifications

automated T5 RFID card parking management system

vehicle parking system Data Sheet:

Parking Topology

Features and functions:

Parking System Work Flow (TCP/IP Communication)

For transient visitor: proximity IC card
For season parker: proximity IC card

Transient Visitor Working Process

1 How to Entry
The vehicle covers detector loop 1, visitor will press the push button on the front panel of entry
terminal. The card dispenser will spit card, information like date, entry time will be written into the
card. Meantime, the barrier gate will open automatically, the visitor enters the parking. After the
vehicle passes by the detector loop 2,barrier will close automatically.

2 How to Pay
Visitor goes to the central payment station, which is usually the lobby of the building. He gives the
card to the operator. Operator will put the card on the card reader for transaction, which will
Calculate how much the visitor needs to pay, and software will show the amount. After payment,
the operator will give back the card to the visitor.

3 How to Exit
Transient visitor drives to the exit terminal with card. He will insert the card into the card collector
installed in the exit terminal, which will detect the validity of the card. If it is valid, the barrier
gate will open automatically. If the card expires or is unpaid, voice prompt will remind the visitor to
go to central payment station for payment. After the vehicle passes by the detector loop 4, the
barrier will close automatically.
