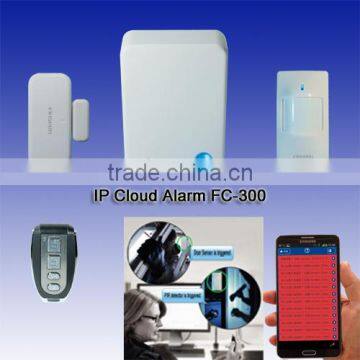

Not GSM Alarm!Finseen Cloud Base IP Alarm System FC-300

Specifications

1.home security alarm system
ntrol with your smartphone APP
3.Simple & Smart design

Finseen Cloud Technology IP Alarm System



 Home DIY Cloud based IP Alarm security TCP/IP connection Home Alarm system with APP control









Operation introduction:

1) Arm/Disarm:

There are 2 way to Arm/Disarm: set by wireless remote control and Internet control



Away arm/Home arm: When alarm panel receive “Away Arm” or “Home arm” command, the buzzer and loudspeaker will sound “di” to show arm successfully.



If enable arm delay, go into arm delaying status, the buzzer will sound “di” one time each second.

When arm delay finished, there is long “di---” to show arm successfully, and the blue light flash slowly at rate of  flash one time each 3seconds.



Disarm: When alarm panel received command for “Disarm”, then the buzzer and loudspeaker will “di” for 2times.

        Blue light keep on when with external power.

        Blue light off when without external power



2) Set the system parameter (Please reference Communication protocol )

Set though Internet: Arm delay, Alarm delay, upload Status of Intelligent door sensor open or closed, siren start or closed.

Scope for Arm delay: 0-59seconds

Scope for Alarm delay: 0-59seconds



3) Wireless learning or deleting

  Learning method: Internet control

When alarm panel received learning command, Red light will keep on, and active wireless detector or remote control.

The wireless learning time is 30seconds:

If learned successfully, the Red light will flash quickly for 5seconds, and buzzer will sound “di” for 5times at same rate as Red light flashing.

If learned unsuccessfully, the Red light off, and buzzer will sound “di-” as long as 1.5seconds.





4) Alarm



When active alarm by Remote control or wireless detector trigger, if alarm delay is 0second,then alarm delay is more than 0second, and alarm panel will go into alarm delay status, and the buzzer will sound “di” one time each second.



When alarm delay finished, it will go into alarm status, and blue light will flash quickly.



And alarm time is 2seconds.



And the alarm panel can be active emergency alarm through Internet.











5) Intelligent zone function:



If there is one zone of wireless zone1-99 is set as intelligent door sensor, and enable function of Intelligent door sensor for status of open and close uploading, then the status of intelligent door sensor will be uploaded to Internet separately.











6) Power on and Low voltage



A.Power on



When external power is cut off for 8seconds, blue light off under status of disarm, and upload power cutting off status to Internet.



When the alarm panel recover external power on, blue light on under status of disarm, and upload power recovery status to Internet.











B. Battery



   When low voltage of battery keep for 8seconds, blue light keep on, and upload status of battery low voltage to Internet.



       When low voltage of battery recovery more than 8seconds,blue light off, and upload status of low voltage recovery status to Internet.











7) Upload status of low voltage of accessories, and tamper-proof



   When alarm panel received command for detector low voltage or Tamper-proof triggered, the alarm panel will upload detector low voltage or Tamper-triggered information to Internet.











8) Function of Periodic upload



Alarm panel will upload signal of system working normal to Internet.

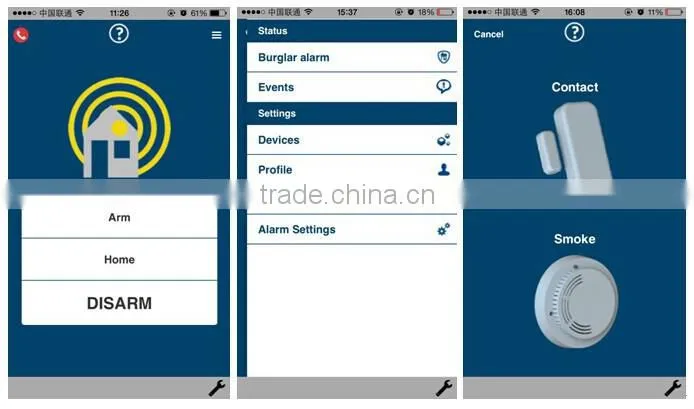

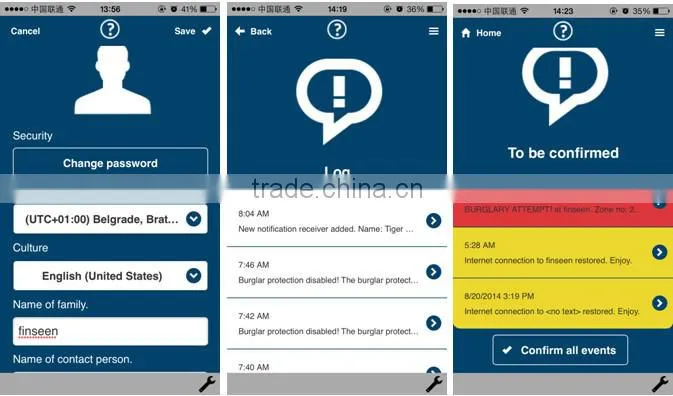

9) IP Alarm APP interface:
