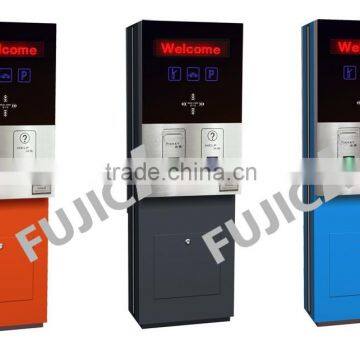

Airport RFID Card parking management systems with automatic paying station
Model |
FJC-T6 |
Item |
Parking Management System |

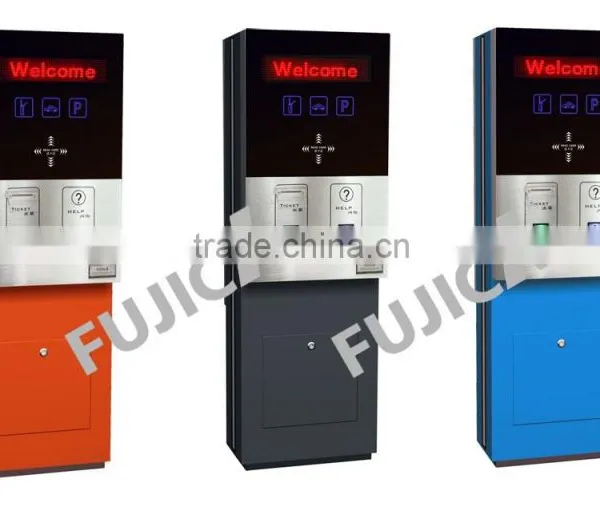

Color |
Orange, Gray, Blue |
Power Consumption |
30W |
Housing Size |
460x320x1380 mm |
Housing Material |
Steel, Tempered Glass |
Card Type |
Mifare-1K, EM, Barcode Paper Ticket, RFID Long Range |
Card Dispenser / Collector |
Optional |
Power Supply |
220VAC 50Hz or 110VAC 60Hz |
Communication Interface |
RS485 or TCP/IP |
Card NO. Capacity |
50,000 pcs |
Record Capacity |
30,000 pcs |
Database Type |
SQL Server |
Operation System |
Windows 7 |
Working Temperature |
-30°C~+70°C |
Working Environments |
Indoor, Outdoor |
Relative Humidity |
≤95% coagulation free |
Warranty |
1 year |
Outside Packing |
Plywood box, 560 x 430 x 1550mm |
Pieces Per Box |
1 pcs / box |
Gross Weight |
80KG |

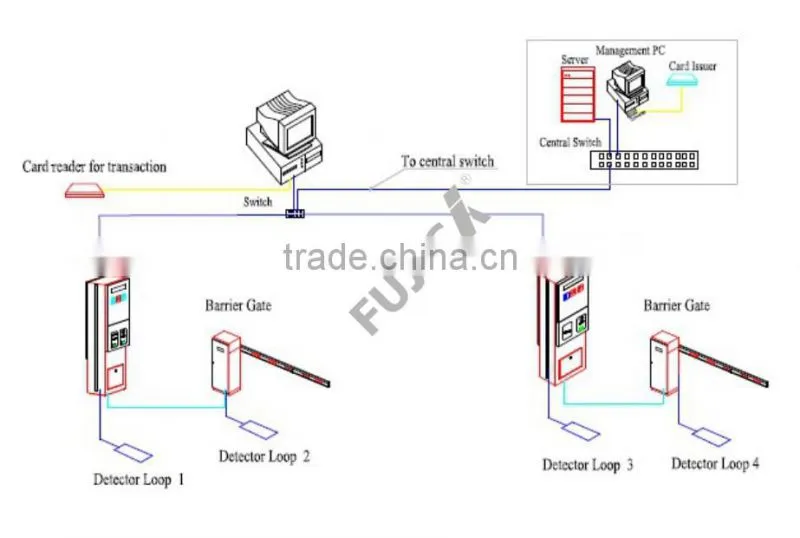

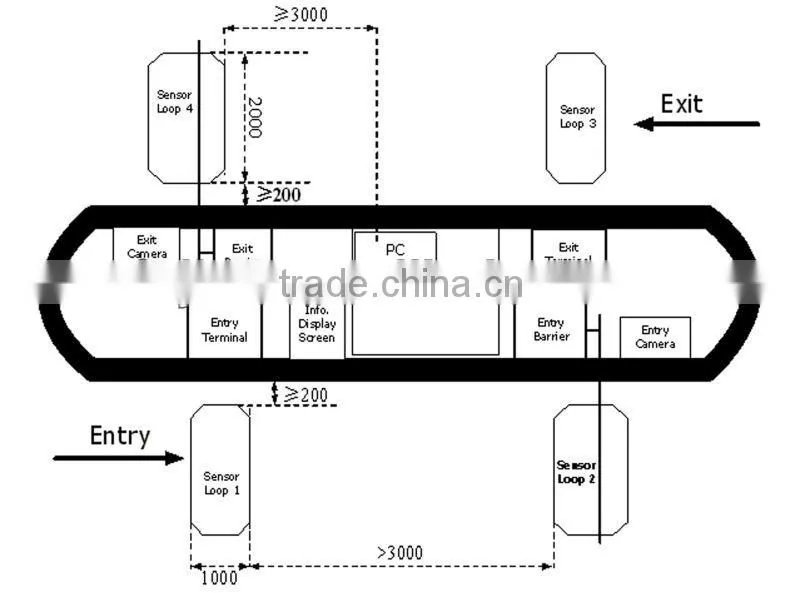

A. Visitors Working Flow:
1 How to Entry
The vehicle covers detector loop 1, visitor will press the push button on the front panel of entry
Terminal. The card dispenser will spit card, information like date, entry time will be written into
the card. Meantime, the barrier gate will open automatically, the visitor enters the parking lot.
After the vehicle passes by the detector loop 2, barrier will close automatically.
2 How to Pay
Visitor drives to the cashier booth, which is located close to the exit terminal and barrier gate.
He gives his card to the operator. The operator will read the card by card reader for transaction,the software will show how much the visitor will have to pay. Receipt printer is optional here.
3 How to Exit
After the visitor pays, the operator will open the exit barrier gate by software. After the vehicle
passes by the detector loop 4, the barrier will close automatically.
B. Monthly User Working Flow:
1 How to Entry
The vehicle covers detector loop 1, monthly user will swipe the proximity card on the card reader panel of the entry terminal. Barrier gate will open automatically. After the vehicle passes by the detector loop 2,the barrier will close automatically.
2 How to Pay
Monthly user does not be requested to pay every time. Usually he goes to central management station to pay the parking fee every month or several months.
Proximity cards are authorized both by card issuer.
3 How to Exit
The vehicle covers detector loop 3, monthly user will swipe the proximity card on the card reader panel of the exit terminal. Exit terminal will detect the validity of the card. If the card is valid, it will send a signal to the barrier gate. Barrier gate will openautomatically. After the vehicle passes by the detector loop 4, the barrier will close automatically. If the card expires, LED display will remind the monthly user to go to central management station for payment.
The transient visitor and monthly user can push the “HELP” button to talk with operator in the central management station for any assistance.
Hardware requirement:
Server:
2. Pentium 4 CPU or better
3. 40GB hard disc or better
4. 256MB memory or better
5. 1024*768 monitor or better
Work station:
1. Windows 7 32-bit
2. Pentium 4 CPU or better
3. 40GB hard disc or better
4. 256MB memory or better
5. 1024*768 monitor or better

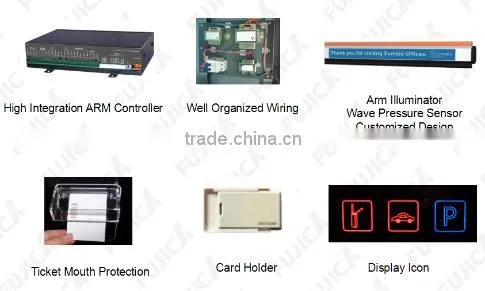

| Features | |
|
Ticket (with Barcode) Printer in parking entrance control terminal |
Card Dispenser in parking entrance control terminal |
|
|
|
Display Icon on parking control terminal |
Barcode Scanner in parking exit control terminal |
|
|
| Fujica Barrier Gate Applications | |
| |
1 Benefit Your Management
1) Reduce management cost.
2) All cash transactions are recorded.
3) Avoids illegal deal, save revenue lost.
4) All operations are recorded.
5) Easy charge report and simple operation log.
2 Benefit Your Customer
1) Make your customers feel more secured.
2) Avoids line up, no wait.
3 Products are Simple and User-Friendly
Application Areas
l Government Facilities
l Hotels
l Business Centers
l Office Buildings
l Residential Areas
l Factories
