Date Code Time Printer Solvent Ink Type Ink Jet Printer

Date Code Time Printer Solvent Ink Type Ink Jet Printer thumbnail-1
Date Code Time Printer Solvent Ink Type Ink Jet Printer thumbnail-2
Date Code Time Printer Solvent Ink Type Ink Jet Printer thumbnail-3
Date Code Time Printer Solvent Ink Type Ink Jet Printer thumbnail-4
Date Code Time Printer Solvent Ink Type Ink Jet Printer thumbnail-5
Date Code Time Printer Solvent Ink Type Ink Jet Printer thumbnail-6
Date Code Time Printer Solvent Ink Type Ink Jet Printer photo-1
Date Code Time Printer Solvent Ink Type Ink Jet Printer photo-2
Date Code Time Printer Solvent Ink Type Ink Jet Printer photo-3
Date Code Time Printer Solvent Ink Type Ink Jet Printer photo-4
Date Code Time Printer Solvent Ink Type Ink Jet Printer photo-5
Date Code Time Printer Solvent Ink Type Ink Jet Printer photo-6
US$ 1,000 - 4,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Flatbed Printer
Place of Origin:
Hubei, China
Contact Supplier Request Quote Chat Now
Wuhan Willita Marking & Packing Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai or any port in China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Plate Type Flatbed Printer
Place of Origin Hubei, China
Brand Name Willita
Model Number WLD-180P expiring date printer
Usage Bill Printer, Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer, Other, Bill Printer, Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer, Plastic bag,PET /HDPE/Glass bottle,PVC pipe,Plastic bag etc
Automatic Grade Automatic
Voltage 220V/110V, 220V/110V
Gross Power 100W
Dimensions(L*W*H) 58*29*41CM
Weight 35KGS
Certification ISO9001, ISO9001.2008
After-sales Service Provided Engineers available to service machinery overseas
Product Description

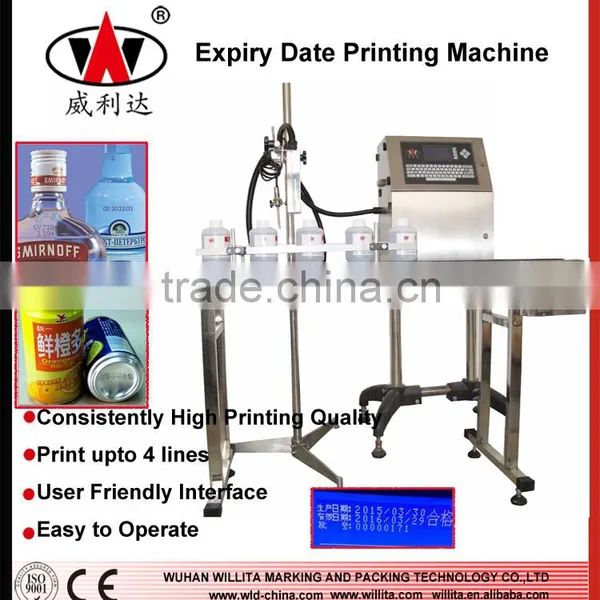

Date Code Time Printer solvent ink type ink jet printer

This Date Code Time Printer solvent ink type ink jet printer is widely used in the industries of cooking oil, lubricants, foods etc. It can print Chinese, numbers, dates, lot numbers and other information, four lines of information are jet-printed in four lines. Be with stable performance and high-definition. It has the functions of automatic sprinkler washing and single-button switch, which are convenient and fast. The large-screen menu has the real-time fault reminding and maintenance warning functions.

Detailed Images

Print head system

Constant Temperature System Design, greatly improve the accuracy of the ink droplets, improve the accuracy of the ink droplets, improve the quality of jet printing.

Protects the Ink Head Avoid Dust and Powder Get Into It.

360 degrees all directional spray printing suitable for any angle of the jet printing.

Filters systerm


Filter The Precipitant in the Ink

Pevents Ink Blocking the Printing Head

Sensor Quick Response

When the printing Material Arrived into the sonsor,the print get orders and print on products with fast Speed, High Accuracy.


Adjustable Height Holder


Easy adjust the height between the print head and products.

Feature and Date

1.  Imported USA GEAR MICROPUMP,It can Provide a stable power for perfect printing.


2. Intelligent circuit design,One Key start up and shutdown make the operations easy.


3. Alarm to inform if the Ink and solvent is luck.Guarantee continuous production without stopping the machine.


4. Nozzle can be individually removed and washed in an ultrasonic vessel, easy to solve the block problem.


5. Ink temperature heating system in Print head,Making the printing is more stable.Ensure the Stable working in cold environment.


6. Advanced ink system designed to make the minimum solvent consumption. Saving the consumption costs.


7. Print head solenoid valve can be completely controlled ink and solvent,ensure that even during sudden power switch,print head unblocked.


8. 360 degree rotating print head can meet different requirement.


9. Machine body use the steel stainless steel,IP55 Protection standards.

Type
Date Code Time Printer solvent ink type ink jet printer
Printing line
1-4 lines
Print lattice
5*5/8*8/8*16/12*12/16*16/24*24
Printing height
Between 1.2mm-22mm, the maximum could widening nine times
Printing speed
164m/min
Printing content
Date, time, batch number, serial number
Printing material
Metal, plastic, glass, wood, pipe line and surface of building materials
Ink color
black, blue, red, yellow and white
Ink consumption
70,000,000 (5*7) characters per liter
solvent consumption
5ml/h
Drying time
1s
Voltage
220V, 50HZ
Operation interface
Chinese/English changed by one-key. Russian available. Graphic editing function included.
Storage
100pcs text memories and 100pcs images containable
Throat- pipe length
standard 2.5m, 2.5~6m is customized
Working environmental
temperature: -5--45℃,humidity: below 95%
Dimension
58*29*41cm
Weight
30KG
Free Parts
Photoelectric, tool box, nozzle frame
Optional Parts
Base frame, paging machine, conveyor belt, meter counter
Application

WLD-180 Date Code Time Printer solvent ink type ink jet printer expiring date printer can print date,time,batch number,SN serial number.It was widely used for plastic bottle, glass bottles,PVC pipes,tubes,cables,wires,metal,medicine box,plastic bags,cartons,paper bags,electronic products,ABS/PVC/PC plastic,rubber,resin,ceramic etc.

Related Products

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

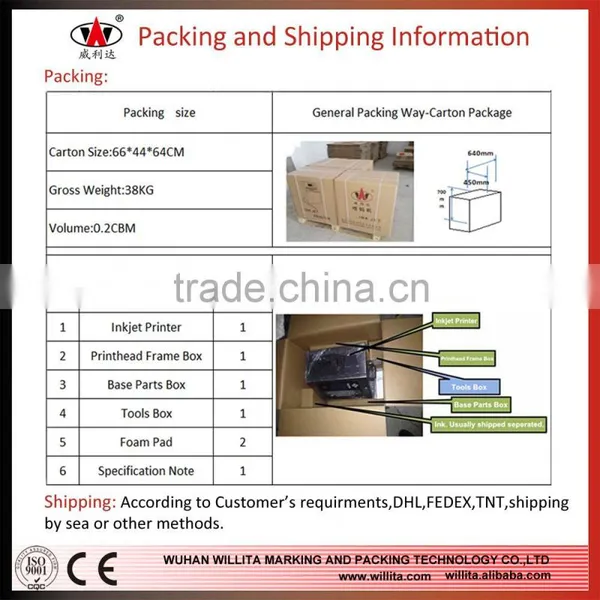

Packing & Delivery
Packaging
Size
66CM (L) * 44CM (W) * 64CM(D)
Weight
38KG



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Our Company

Wuhan Willita marking & packing Technology Co.,ltd is an Enterprise which established at 2008,specialized in developing, producing and selling in the end-line coding and packaging technologies.We are committed to supply ink jet printers as CIJ, DOD, High Resolution, Hand held type,CO2/Yag laser marking machines and its consumable supplies,as ink,thinner,washer.

Willita is a famous brand in domestic and overseas markets because of the quickly-response system from every branches. Our excellent R & D teams are accomplished in perfect OEM and ODM. We are obtained the best reputation from our dealers and End-Users in worldwide.
