Specifications
Car Park Management System FJC-T61. 32-bit ARM processor used
2. Automatic statistics report
3. Offline processing availab

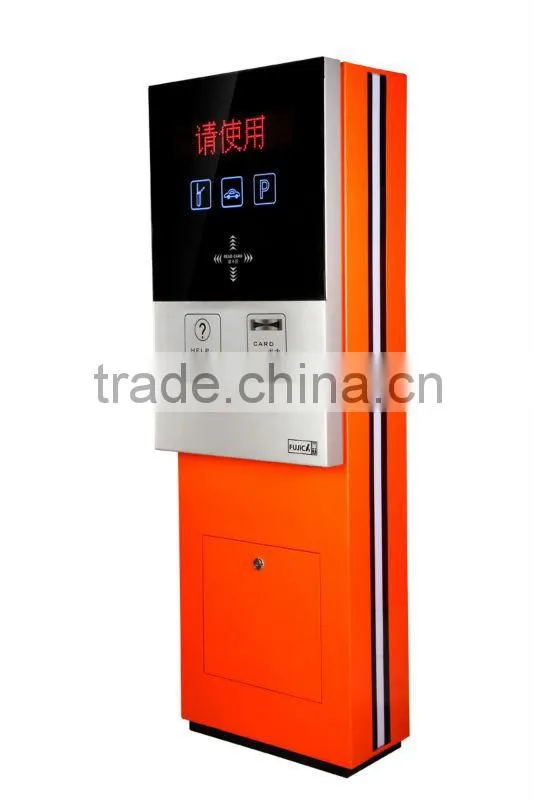

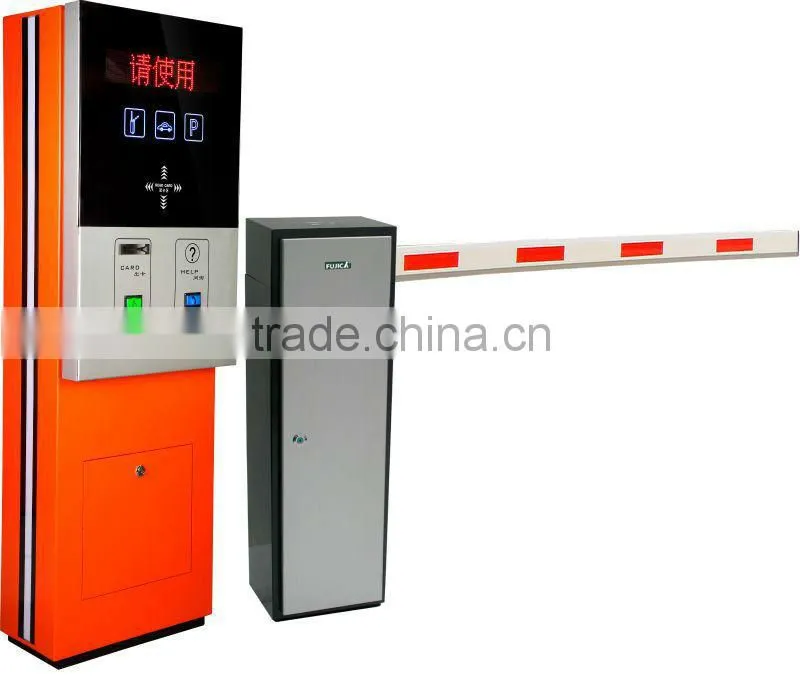

Car Park Management System FJC-T6
Description:

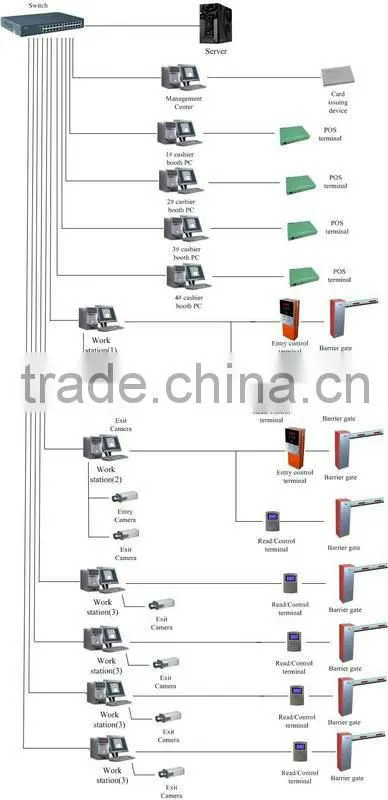

Fujica-T Series Parking management system adopt stable and mature data platform, apply to Windows2000Win XP OS and SQL Server 2000 database etc., parking management system is used to control and monitor the information like the vehicle status of Entry and Exit,status of barrier gate and so on. System designs of three-layer CS architecture,the module of each layer can be updated and replaced separately, which will effectively reduce the cost and simplify the managment. At the same time, data processing can be transferred from client to application server and database server, accommodate large-scale and complicated application requirement. Parking management system has powerful data processing function.Various control parameters for parking management can be set, such as IC card detecting,IC card extend,Picture contrast etc. User can inquiry the vehicle in the parking lot, different reports can be generated and printed from the system, so as to manage the parking lot effectively.
Specification:
Housing Size |
1380H×460W×320D(mm) |
Housing material |
Steel,Tempered glass |

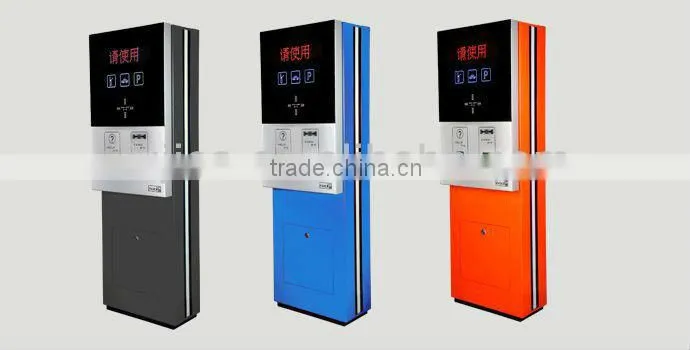

Color |
orange / black / blue |
IC card read/write time |
≤0.2S |
IC card read/write distance |
≤10cm |
Radio-frequency card read/write time |
≤0.2S |
Radio-frequency card read/write distance |
≤10cm |
Paper outing speed |
≤2S |
Mode of communication |
Base RS-485, Rear TCP/IP |
Comunication transmission distance |
1200m(RS-485) |
Offline storage capacity |
30000 pcs (extendible) |
Card capacity |
50000 pcs (extendible) |
Blacklist capacity |
10000 pcs (extendible) |
Data transmission speed |
4800bps/100M |
Working Temperature |
minors 30°C to 70 °C |
Working environments |
indoor,outdoor |
Relative humidity |
≤95% coagulation free |
Multiple network mode, can realize remote data and image transmission;
- 32-bit ARM dual-core processing technology;
- Easy to install, debug and maintain;
- IC, ID, bar code, RFID available in one control board
- Nesting function available;
- Extendible long distance read function;
- Off-line working available;
- Extendible plate-number identification and auto-printing;
- Multiple charging mode, charging standards can be defined by the user;
- Automatic card dispenser;
-voice prompt available
- Flexible system configuration, can be extended to multi-level parking lot management system;
- waterproof, dustproof and rustproof case
- Modular structure, high integration
- Wide-screen panel;
- LED mode icon
- Background light;
