Home > Instruments & Meters > Optical Lens & Instrument > Optical Lens > LSSS-60JS Manual Vertical Translation Stage
LSSS-60JS Manual Vertical Translation Stage
US$ 1 - 200
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangxi, China
Brand Name:
LS
Model Number:
LSSS-60JS
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
13mm XY Translation StagesNegotiableMOQ: 1 Piece -
LSDS-50JS Motorized Precision Positioning Vertical StageNegotiableMOQ: 1 Piece
-
LSDS-30JS Motorized Lab JackNegotiableMOQ: 1 Piece
-
25mm XY Travel With Rotation Manual Positioning StagesNegotiableMOQ: 1 Piece
-
LSDS-20QV Motorized Lab JackNegotiableMOQ: 1 Piece
Place of Origin
Jiangxi, China
Brand Name
LS
Model Number
LSSS-60JS

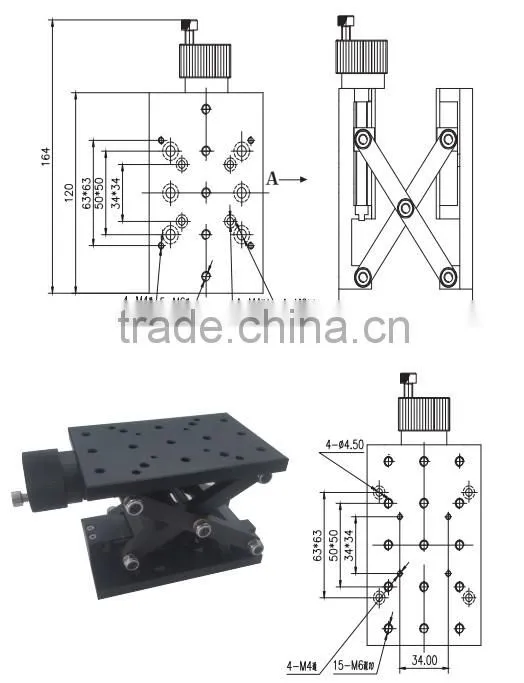

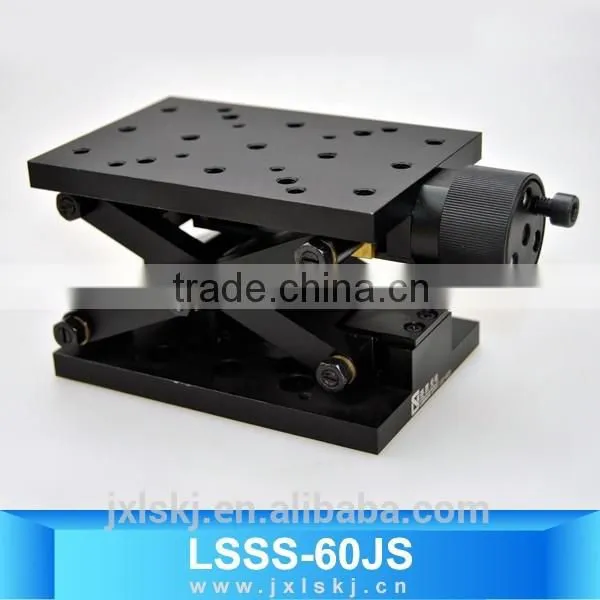

Manual vertical translation stage LSSS-60JS
1.Used for the lift adjustment of long stroke, not quantitative, and large load capacity.
2.With Scissor-shaped lift support, driven by precision abrasive screw, Double-guide rail and 5-axis over positioning mechanism to guarantee absolutely stable , comfortable movement, and high precision, big load capacity.
3.Multiple hole sites design on both up and low sides,high adaptability , all can be mounted surface
4.Equipped with hand wheel to ensure safe and reliable.
Travel range |
60 mm |
Table top size |
80x120 mm |
Resolution |
0.01mm |
Load capacity |
20 kg |
Weight |
1.2 kg |
