Block magnet manufacturer, ferrite magnets,magnet factory Quality Choice
- 800 Ton / Tons per Month
- Shanghai Port Lianyungang Port Guangzhou Port
- Credit Card
- POTF08-48 Powerful Magnetic Hook
- Magnets for consumer electronics, medical devices, industry, and technology
- Circular magnet, square magnet, irregular magnet, perforated magnet
- Jewelry magnet gift magnet motor magnet health magnet non-standard customization
- Earphone magnets, luggage magnets, stationery magnets, toy magnets, customized magnets
- Wireless charging magnet, receiving end magnet, transmitting end magnet
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | HTMAGC | Model Number: | customized |
Type: | Permanent | Composite: | Ferrite Magnet | Shape: | Ball |
Application: | Moto Magnet |
Product Description
Product Description
Hard ferrite (ceramic) magnets were developed in the 1960's as a low cost alternative to metallic magnets. Even though they exhibit low energy (compared with other permanent magnet materials) and are relatively brittle and hard, ferrite magnets have won wide acceptance due to their good resistance to demagnetization, excellent corrosion resistance and low price per pound. In fact, measured by weight, ferrite represents more than 75 percent of the world magnet consumption. It is the first choice for most types of DC motors, magnetic separators, magnetic resonance imaging and automotive sensors.
Grade | Value(min/typical in our factory) | |||||||
Br | Hcb(BHC) | Hcj(IHC) | (BH)max | |||||
MT | KG | KA/m | Koe | KA/m | KOe | Kj/m^3 | MGOe | |
Y10T(=C1) | 200/218 | 2.00/2.18 | 125/145 | 1.57/1.82 | 210/250 | 2.64/3.14 | 6.5/8.0 | 0.8/1.0 |
Y25 | 360/370 | 3.60/3.70 | 135/150 | 1.70/1.88 | 140/170 | 1.76/2.14 | 22.5/25.3 | 2.8/3.2 |
Y30(=C5) | 380/385 | 3.80/3.85 | 191/210 | 2.40/2.64 | 199/220 | 2.50/2.51 | 26.0/28 | 3.4/3.7 |
Y30BH | 380/390 | 3.80/3.90 | 223/235 | 2.80/2.95 | 231/245 | 2.90/3.08 | 27.0/30.0 | 3.4/3.7 |
Y33 | 410/420 | 4.10/4.20 | 220/235 | 2.77/2.95 | 225/240 | 2.83/3.01 | 31.5/33.0 | 4.0/4.2 |
Y35 | 400/410 | 4.00/4.10 | 175/195 | 2.20/2.45 | 180/200 | 2.26/2.51 | 30.0/32.0 | 3.8/4.0 |
C8(=C8A) | 385/390 | 3.85/3.90 | 235/255 | 2.95/3.20 | 242/265 | 3.05/3.33 | 27.8/30.0 | 3.5/3.7 |
C10 | 400/410 | 4.00/4.10 | 288/300 | 3.62/3.77 | 280/287 | 3.51/3.60 | 30.4/31.9 | 3.8/4.0 |

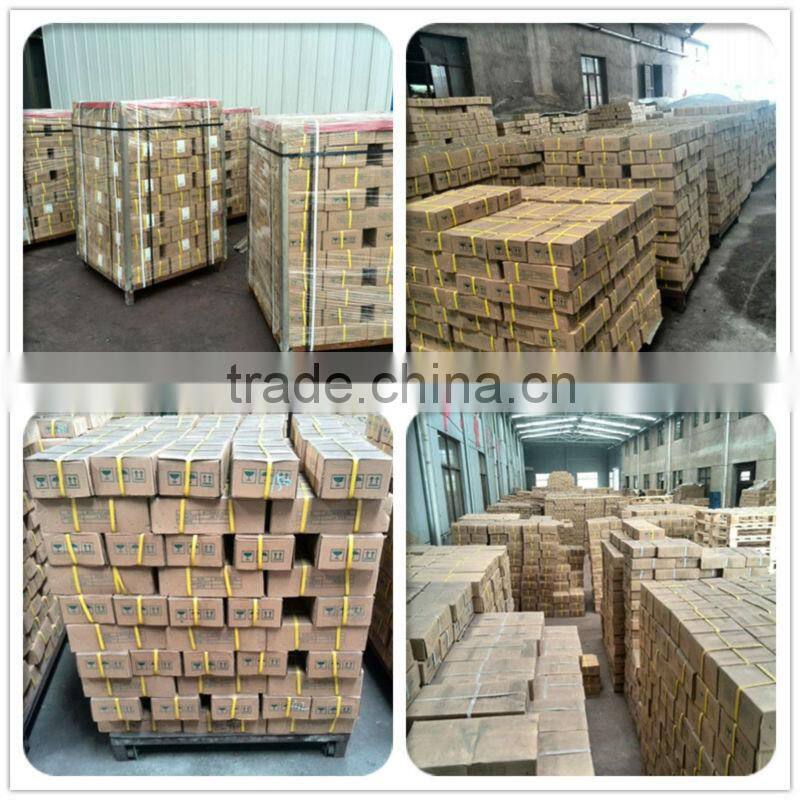

Packaging & Shipping
Packing
- Hard Ferrite Magnet : Carton& Pallet, or according to customers’s requirement.
- Pallet Size and Weight: 100*100*150cm/pallet, 1~1.5 ton/pallet.
- Carton weight: 15kg/carton.
Shipping
All available shipping ways could be applied, by courier, air or sea, better to choose by sea.
1. By Sea: If the GW is over 50kg, we advise ship by sea when you are not urgent for the goods as the charge of ocean way is cheaper than by air.
2. By Air: If the good below 20kg, we advise ship by air as we HAWELL MAG signed a long-term agreement with Express (DHL, TNT, FedEx) and the best discount we can provide to you.
3. Full-way tracking the cargos for you before the goods arrive.
Company Information:

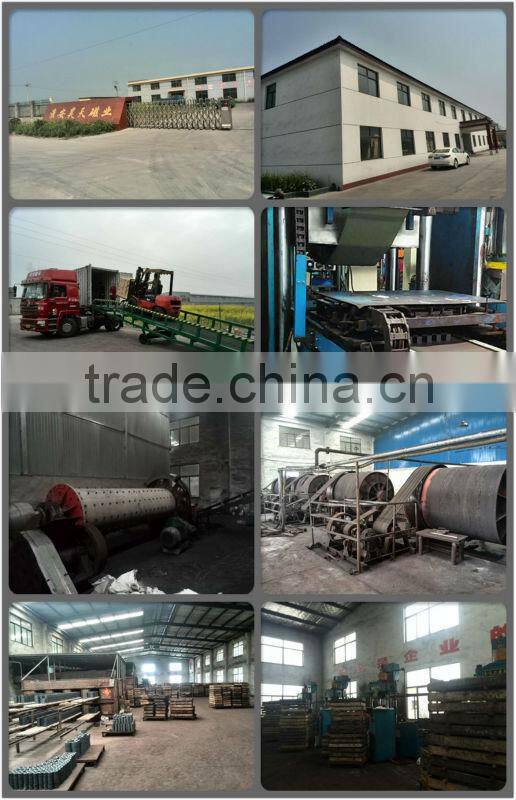

As a permanent ferrite magnet factory and magnetic assembly factory in Jiangsu and based on more than 15 years of production experience, we have good connection with some reputable other magnet factories. With our abundant experience and industrious and hardworking staff members, our production capacity amounts to 7000 ton/year.So we will guarantee the sufficient supplies and on-time delivery. We can supply a wide range of products to meet ever-changing market demands. Customize orders are welcomed.
We are increasingly expanding our international market share based on quality products, excellent service, reasonable price and timely delivery. Please contact us at any time for more information.
Contact Us
- Huaian Haotian Magnetic Industry Co., Ltd.
- Contact nameLucy cheng
- Phone86-0517-85651188
- AddressIndustrial Concentration District,Jingkou Town,Huaian District Huaian,Jiangsu
