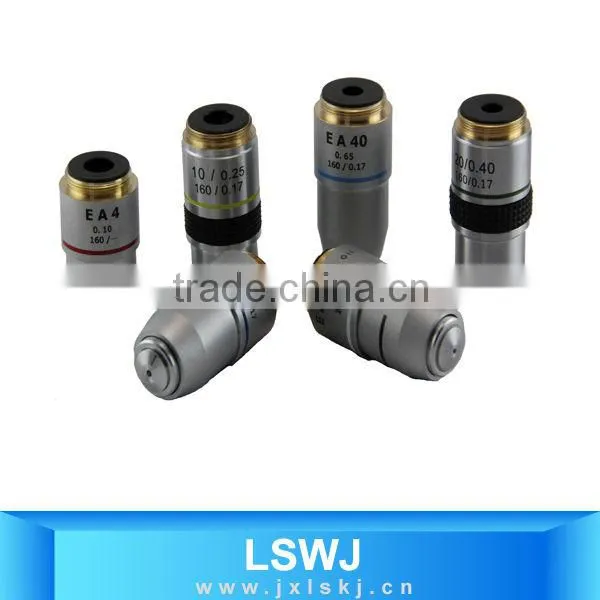

100X 60X 40X 10X Biological Microscope Objectives

Name: 100X 60X 40X 10X Biological Microscope Objectives
Brand: Liansheng Optics
SKU: 117111875

Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jiangxi, China

Brand Name:

Liansheng Optics

Model Number:

LSWJ

Jiangxi Liansheng Experiment Technic Assembly Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangxi, China

Brand Name Liansheng Optics

Model Number LSWJ

Theory Other, Biological Microscope, Biological Microscope

Drawtube Other, Monocular, Monocular

Microscope Achromatic Objective 100x 60x 40x 20x 10x 4x

Features: Standard microscope objective thread of 4/5 inch

Application: Used in education, lab, hospital

Matching products: LSOH2 LSOH3 LSLB1 LSLB2

Item	unit	achromatic micro objective
Magnification	mm	4X	10X	20X(S)	40X(S)	60X(S)	100X(S)
Numerical aperture	mm	0.1	0.25	0.4	0.65	0.85	1.25
Effective working distance	mm	37.5	6.544	1	0.65	0.185	0.198
Conjugate distance	mm	195	195	195	195	195	195
Parfocal Distance	mm	45	45	45	45	45	45
cover-glass thickness	mm	0.17	0.17	0.17	0.17	0.17	0.17
Note:Effective working distance is to point to the forefront end top of lens to cover-glass surface along the axial distance

For bulk package, We select shockproof packaging to provide multi-protection.

Every objective will be threaded on and put into a plastic bottle which could keep objective from swinging.
Put plastic bottle into a special foam box which could provide the repeat protection.
Every carton contains 2 foam boxes, fragile labels and shipping mark will be sticked on the carton side.

For the samples, we choose simple but protective packaging.

Every objectives will be threaded on and put into a plastic bottle which could keep objective from swinging.
Plastic bottles will be individually wrapped by bubble paper to avoid the striking.
Samples will be put into the small carton which was previously equipped the foam protection.
