XY Manual Linear Stage HTIMS302-XYR
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangxi, China
Brand Name:
HT
Model Number:
HTIMS302-XYR
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2-Axis Precision Optical Mount HTMM50NegotiableMOQ: 1 Piece -
Multi-Axis Integrated Linear Stage HTIMS501NegotiableMOQ: 1 Piece
-
HTVS60 Precision Vertical Translation StageNegotiableMOQ: 1 Piece
-
Six-Axis Manual Positioning Stage HTIMS601NegotiableMOQ: 1 Piece
-
HTDL100-X 100mm Translation StageNegotiableMOQ: 1 Piece
Place of Origin
Jiangxi, China
Brand Name
HT
Model Number
HTIMS302-XYR

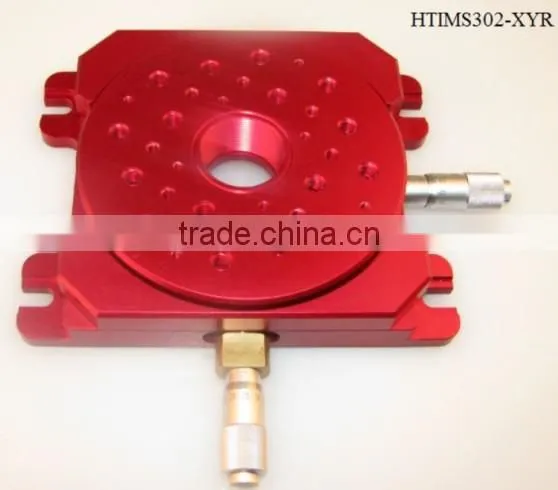

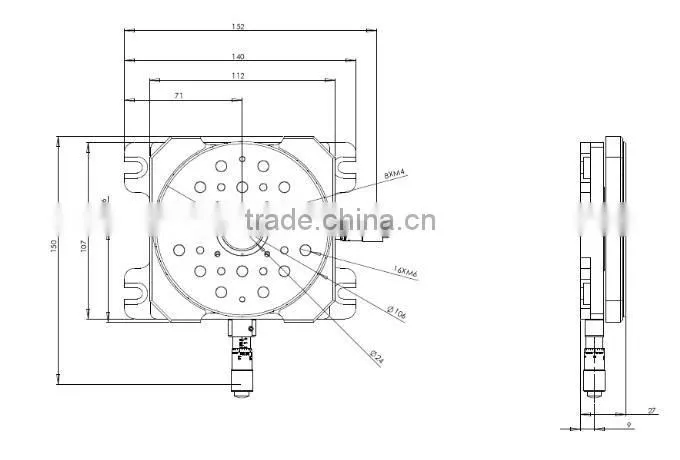

XY Manual linear stage HTIMS302-XYR
HTIMS302-XYR
1.Compact structure, High precision, precision linear ball with fine grinding steel bar as rail.
2.Micrometer adjust, Quantitative readings.
3.High Load Capacity,right and left hand pair design.
4.There are mounting holes on the top and bottom plate.
Item No. |
HTIMS302-XYR |
Travel ( X/Y ) |
13mm |
Rotation ( Z) |
360° |
Mini Scale ( Z) |
1° |
Mini Reading (X/Y) |
0.005mm |
Sensitivity( X/Y) |
0.002mm |
Platform Diameter |
106mm |
Load Capacity |
4kg |
Vertical load Capacity |
0.8kg |
weight |
0.75kg |
Finish/ Color |
Anodized/ Chinese Red |
