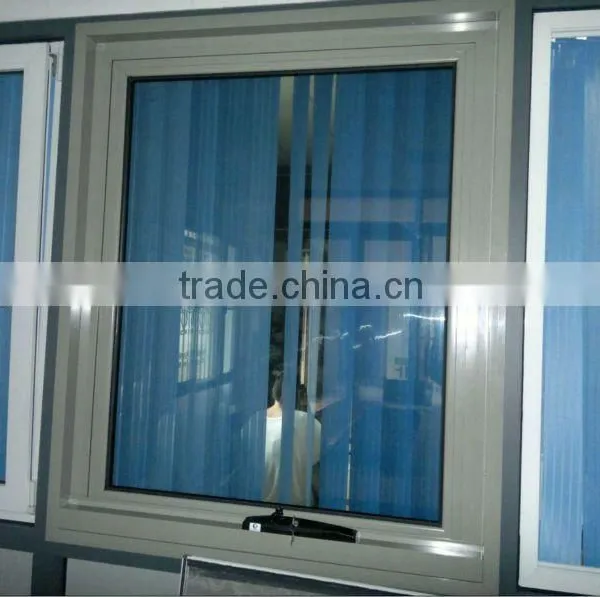

Aluminum Awning Window with Chain Winder (W11)

Specifications

Aluminum Awning Window
1.Thermal break aluminum profile
2.Superior window
3.Resonable price
4.ISO 9001,SGS Certificate

Aluminum Awning Window with Chain Winder



1. Profile in common use, aluminum profile adopted 14.8 mm and 16.8mm heat insulated strip; 50 series, 77 series, 80 series, 90 series.

2. Can achieving different open styles. Such as: Fix window, awning window, Tilt window and tilt and turn window, sliding window, casement window.

3. European standard C-slot hardware.

4. Use sponge foam composite EPDM to achieve dual sealing and ensure the sealing performance, reducing the force for opening and closing.

5. Side frame, window sash follow the procedure of glue injection after corner crimping; Leading the flow of sealant through the guide plate, increasing the intensity and sealing performance for the corner of window.

6. Using different series of aluminum profiles and different configurations of glass.



Thermal Break Aluminum Awning Window
Material
Profile	Thermal Break
Profile Depth	55mm
Profile Thickness	1.4 mm
Profile Surface Treatment	Powder coated, Electrophoresis, Anodize and PVDF
Color	RAL Series, and Wood Grain
Glass	Single glass, Tempered glass, Low-e glass, floated glass, refective glass, frosted glass, laminated glass and so on
Glass Thickness	5mm/6mm/8mm/12mm for single glass and 5mm+9A+5mm, 6mm+12A+6mm. etc for double/triple glazing
Sealant	EPDM, PVC, Silicone Sealant
Hardware	Roto, Kin Long
Dimension	According to client' s size or drawings
Fly Screen	Available
Performance Parameter
Sound Isolation	28-45db
Air Pressure	3 th -5 th   Grade
Wind Resistance	3 th -5 th   Grade
Water Resistance	3 th -5 th   Grade
U-Value	2.2-3.5
