GMF27 Series CNC Mill

Name: GMF27 Series CNC Mill
Brand: Guosheng
Price: USD $150,000 - 250,000 / Set

FOB Price

USD $150,000 - $250,000 / Set

1 Set(Min.Order)

Supply Ability 20 Set / Sets per Month
Port Shanghai
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Place of Origin:	Jiangsu, China	Brand Name:	Guosheng
Model Number:	27 Series	Type:	Other, Horizontal, Gantry Type CNC Milling Machine	CNC or Not:	CNC
Voltage:	380V/50Hz	Power(W):	Spindle power: 22/26 kw	Dimension(LWH):	According to the models
Weight:	41000 - 54000 kg	Certification:	ISO CE	Warranty:	1 Year
After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

Detailed Images

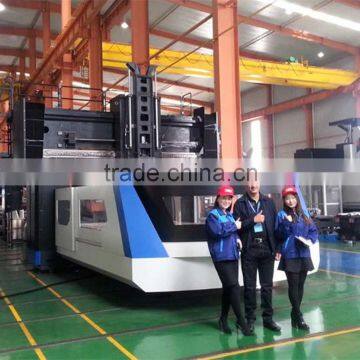

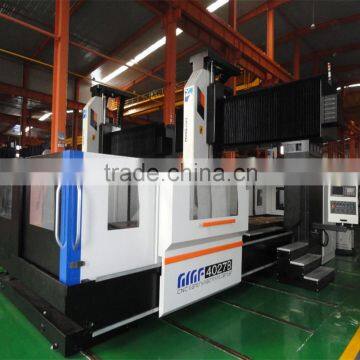

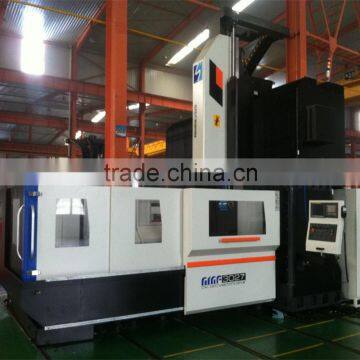

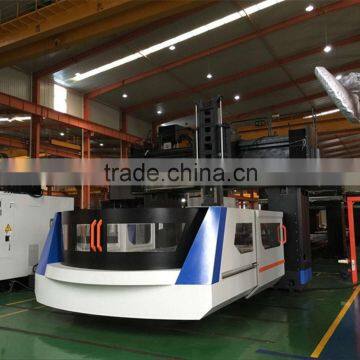

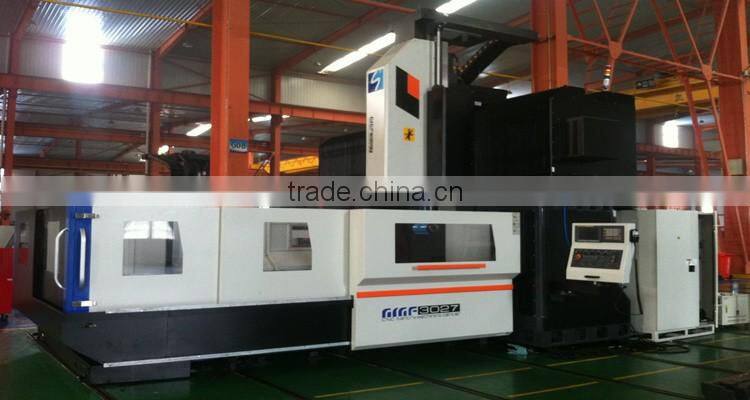

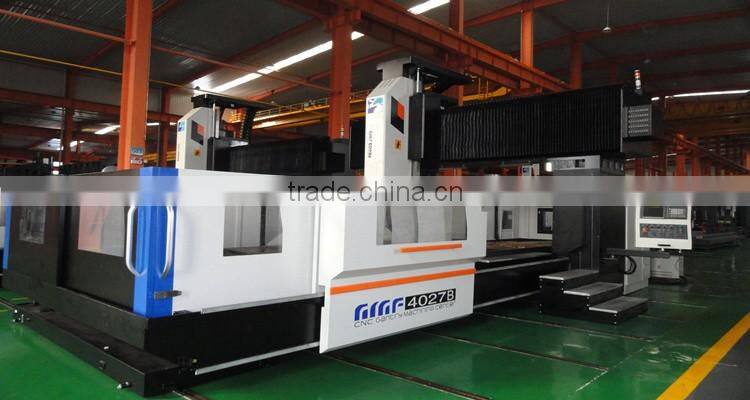

GMF27 Series CNC Mill

Widely used in the aviation, auto, precision molding industries. GMF series can provide a high-performance mechanical system and a software interface which can be operated easily. This provides multiple choices of multiple choices that will allow you to fully realize the high precision dream.

Product Description

Specifications		27A And 27B Series
Machine Type	Unit	GMF3027 A/B	GMF4027 A/B	GMF5027 A/B	GMF6027 A/B
Worktable
Worktable (length×width)	mm	3000×2300	4000×2300	5000×2300	6000×2300
Maximun Load of table	kg	12000 (A) 15000 (B)	16000 (A) 18000 (B)	18000 (A) 22000 (B)	20000 (A) 24000 (B)
T-slot	mm	11-22×200
Triaxial itinerary
Gantry width	mm	2730	2730	2730	2730
Travel for X/Y/Z axis	mm	3200/2700/1000	4200/2700/1000	5200/2700/1000	6200/2700/1000
Distance from spindle nose to table surface	mm	310-1310
Feed system
CNC system		FANUC Oi MD
Rapid shift of axis of X/Y/Z	m/min	12/12/10	10/12/10	10/12/10	8/12/10
Maximun cutting feed speed	m/min	7
Automatic tool transform system
Standard tool quantity	Piece	BT50/32
The larges diameter cutter knife/length	mm	Φ125/300
Tool exchanging manner		Pneumatic
Maximum tool weight	kg	18
Precision
Positioning accuracy	mm	0.021
Accuracy of repeated positioning	mm	0.02
Guide form and specifications
X/Y/Z-axis guide specifications		2-55（X)/2-55(Y)/Z axis hard rail (27A Series) 3-55（X)/2-55(Y)/Z axis hard rail (27B Series)
Spindle system
Spindle specifications		BT50/Φ200
Speed with belt drive milling head	r.p.m	4000
Motor power of spindle	kw	22/26
Air pressure
Requirements for air compressing	kg/cm²	≥6
Air pressure flux	m³/min	≥0.5
Machine specifications
Integrated weight	kg	41000 (A) 43000 (B)	46000 (A) 47000 (B)	51000 (A) 52000 (B)	53000 (A) 54000 (B)
Overall dimension (length×width×height)	mm	7840×5150 ×5167 （Travel peak）	9840×5150 ×5167 （Travel peak）	11840×5150 ×5167 （Travel peak）	13840×5150 ×5167 （Travel peak）

Standard Fittings
FANUC control system	Water tank cooling device	Working lamp	Outer protective cover
Three-color warm lamp	LCD	Tool box	Operating manual
Spindle blowing device	Handheld air gun	Electric control cabinet	Transformer
Pneumatic part	Sprial+Chain chip cleaner	Spindle	Screw
Heat exchanger for electrical cabinet	RS-232 standard output interface	Automatic lubricating device	Manual pulse generator

Optional Fittings
CNC system Siemens/ Mitsubishi	Automatic tool changer Disc type / Chain type	Water outlet from spindle center	Disc type oil-water Separator
Air conditioner for electrical cabinet	Full-enclosed optical scale detecting system	Automatic tool length measuring system	Manual/Semi-automatic right-angle head
X/Y/Z axis optical scale	Toolholder in oilway	Oil mist	ZF gearbox

Design For Quality

Structure

The structure of machine tool is analyzed with ANSYS at all stages from foundation design to guarantee of high-speed and high-precision continuous machining. A simulation test for deformation produced when the center of machine tool bears load is conducted to guarantee excellent bending rigidity of machine tool.

Product Description

A1. Optional external encoder realizes closed loop control

A2. Screw supporting structure is designed for above more than 5 meters (including 5 meters) gantries.

B. All gear form main transmission is optional.

C. The optional Z axis rails, rail pre tensioning structure Guosheng patent technology.

D. Optional 90° milling head realizes five-face machining. Optional universal milling head realizes multi-angle machining

E. Optional German ZF gearbox widens machining range.

F. As standard each Guosheng gantry machining center is equipped with two spiral chip cleaners and one chain chip cleaner.

Detection & Packing

The company possesses advanced precise machining equipments and high-accuracy detecting equipments, providing powerful guarantee for quick realization of advanced technical schemes. The company owns perfect quality management system and has passed the certification of ISO9001-2008 Quality Management System and has been effective operating its quality management system. The company emphasizes on process control, strengthens technological management, optimizes production flow continuously and improves production efficiency to fulfill lean production and enhance enterprise competitiveness.
