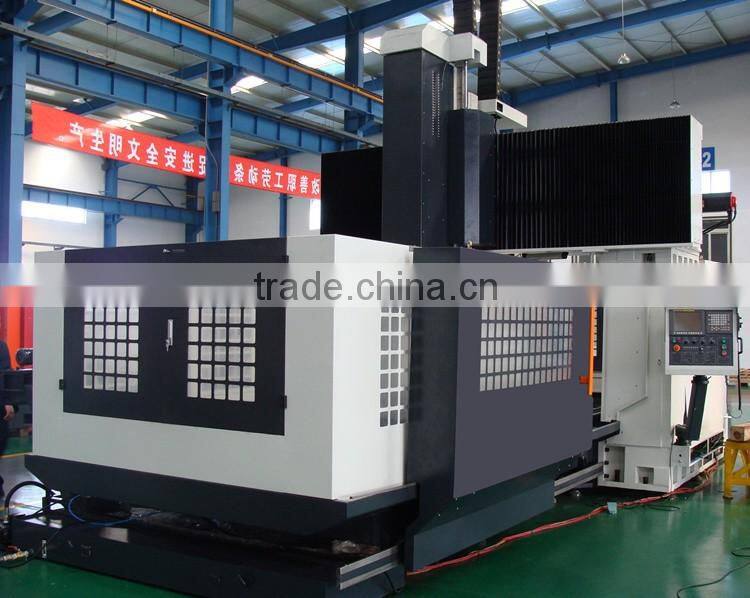

GMF32B Series Double Column Machining Center

GMF32B Series Double Column Machining Center thumbnail-1
GMF32B Series Double Column Machining Center thumbnail-2
GMF32B Series Double Column Machining Center thumbnail-3
GMF32B Series Double Column Machining Center thumbnail-4
GMF32B Series Double Column Machining Center thumbnail-5
GMF32B Series Double Column Machining Center thumbnail-6
GMF32B Series Double Column Machining Center photo-1

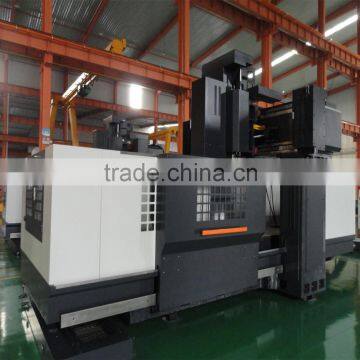

GMF32B Series Double Column Machining Center photo-2
GMF32B Series Double Column Machining Center photo-3

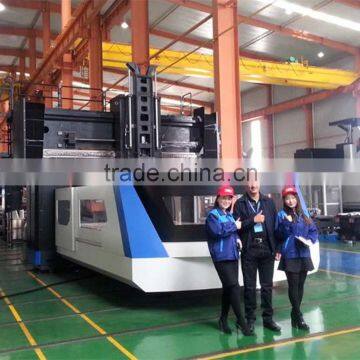

GMF32B Series Double Column Machining Center photo-4

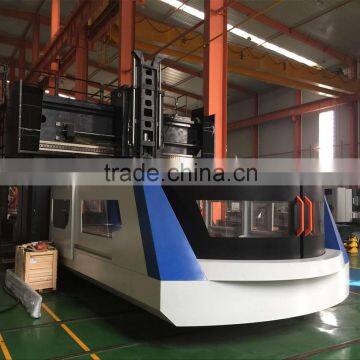

GMF32B Series Double Column Machining Center photo-5

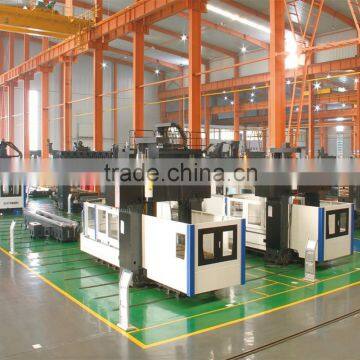

GMF32B Series Double Column Machining Center photo-6
US$ 200,000 - 300,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
Guosheng
Contact Supplier Request Quote Chat Now
Nantong Guosheng Machinery & Power-Generating Group Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name Guosheng
Model Number 32B Series
Type Other, Gantry Type Milling Machine
CNC or Not CNC
Voltage 380V/50Hz
Power(W) Spindle power: 22/26 kw
Dimension(L*W*H) According to the models
Weight 45000-56000 kg
Certification CE ISO
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Detailed Images

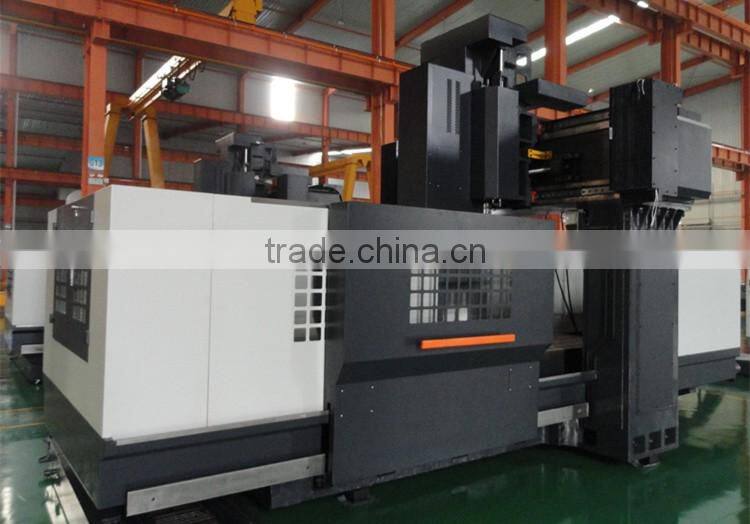

GMF32B Series Double Column Machining Center


Widely used in the aviation, auto, precision molding industries. GMF series can provide a high-performance mechanical system and a software interface which can be operated easily. This provides multiple choices of multiple choices that will allow you to fully realize the high precision dream.
Product Description
Specifications
32B Series
Machine Type
Unit
GMF3032B
GMF4032 B
GMF5032 B
GMF6032 B
Worktable
Worktable (length×width)
mm
3000×2300
4000×2300
5000×2300
6000×2300
Maximun Load of table
kg
15000
18000
22000
25000
T-slot
mm
11-22×200
Triaxial itinerary
Gantry width
mm
3230
3230
3230
3230
Travel for X/Y/Z axis
mm
3200/3200/1000
4200/3200/1000
5200/3200/1000
6200/3200/1000
Distance from spindle nose to table surface
mm
310-1310
Feed system
CNC system
FANUC Oi MD
Rapid shift of axis of X/Y/Z
m/min
12/12/10
10/12/10
10/12/10
8/12/10
Maximun cutting feed speed
m/min
7
Automatic tool transform system
Standard tool quantity
Piece
BT50/32
The larges diameter cutter knife/length
mm
Φ125/300
Tool exchanging manner

Pneumatic
Maximum tool weight
kg
18
Precision
Positioning accuracy
mm
0.021
Accuracy of repeated positioning
mm
0.02
Guide form and specifications
X/Y/Z-axis guide specifications
3-55（X)/2-55(Y)/Z axis hard rail
Spindle system
Spindle specifications
BT50/Φ200
Speed with belt drive milling head
r.p.m
4000
Motor power of spindle
kw
22/26
Air pressure
Requirements for air compressing
kg/cm²
≥6
Air pressure flux
m³/min
≥0.5
Machine specifications
Integrated weight
kg
45000
50000
54000
56000
Overall dimension (length×width×height)
mm
7840×5750
×5167
（Travel peak）
9840×5750
×5167
（Travel peak）
11840×5750
×5167
（Travel peak）
13840×575
×5167
（Travel peak）
Standard Fittings
FANUC control system
Water tank cooling device
Working lamp
Outer protective cover
Three-color warm lamp
LCD
Tool box
Operating manual
Spindle blowing device
Handheld air gun
Electric control cabinet
Transformer
Pneumatic part
Sprial+Chain chip cleaner
Spindle
Screw
Heat exchanger
for electrical cabinet
RS-232  standard
output interface
Automatic
lubricating device
Manual pulse
generator
Optional Fittings
CNC system
Siemens/ Mitsubishi
Automatic tool changer
Disc type / Chain type
Water outlet
from spindle center
Disc type oil-water
Separator
Air conditioner
for electrical cabinet
Full-enclosed optical
scale detecting system
Automatic tool length
measuring system
Manual/Semi-automatic
right-angle head
X/Y/Z axis optical scale
Toolholder in oilway
Oil mist
ZF gearbox
Design For Quality

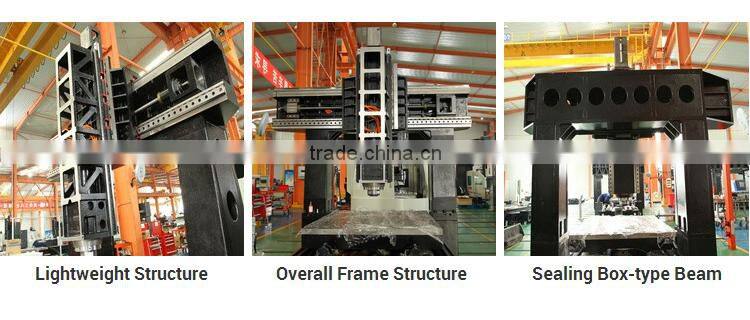

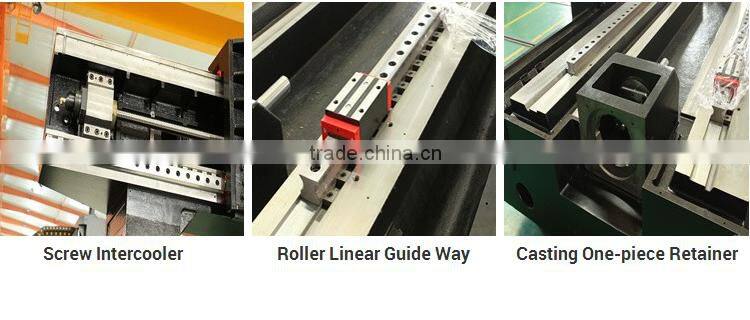

Structure

The structure of machine tool is analyzed with ANSYS at all stages from foundation design to guarantee of high-speed and high-precision continuous machining. A simulation test for deformation produced when the center of machine tool bears load is conducted to guarantee excellent bending rigidity of machine tool.

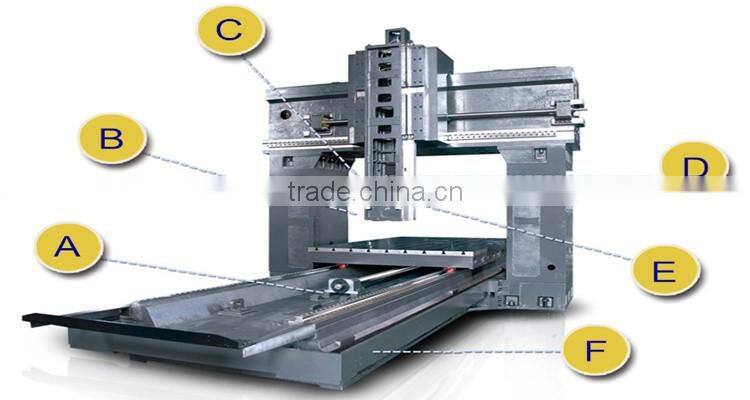

Product Description

A1. Optional external encoder realizes closed loop control

A2. Screw supporting structure is designed for above more than 5 meters (including 5 meters) gantries.

B. All gear form main transmission is optional.

C. The optional Z axis rails, rail pre tensioning structure Guosheng patent technology.

D. Optional 90° milling head realizes five-face machining. Optional universal milling head realizes multi-angle machining

E. Optional German ZF gearbox widens machining range.

F. As standard each Guosheng gantry machining center is equipped with two spiral chip cleaners and one chain chip cleaner.

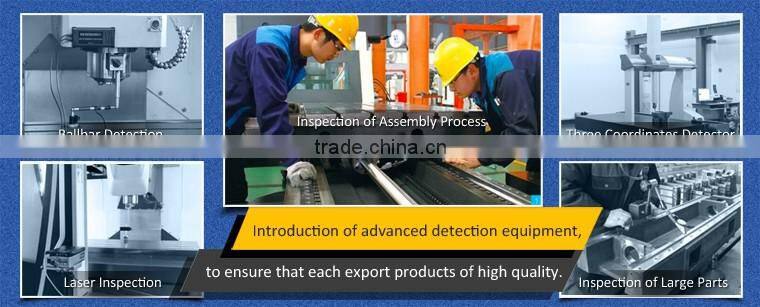

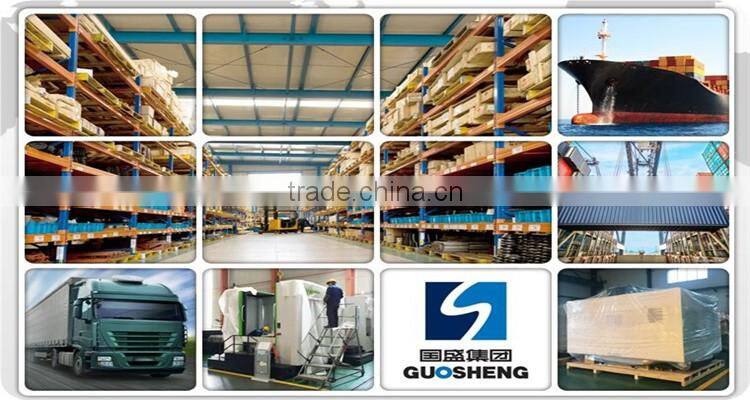

Detection & Packing

The company possesses advanced precise machining equipments and high-accuracy detecting equipments, providing powerful guarantee for quick realization of advanced technical schemes. The company owns perfect quality management system and has passed the certification of ISO9001-2008 Quality Management System and has been effective operating its quality management system. The company emphasizes on process control, strengthens technological management, optimizes production flow continuously and improves production efficiency to fulfill lean production and enhance enterprise competitiveness.

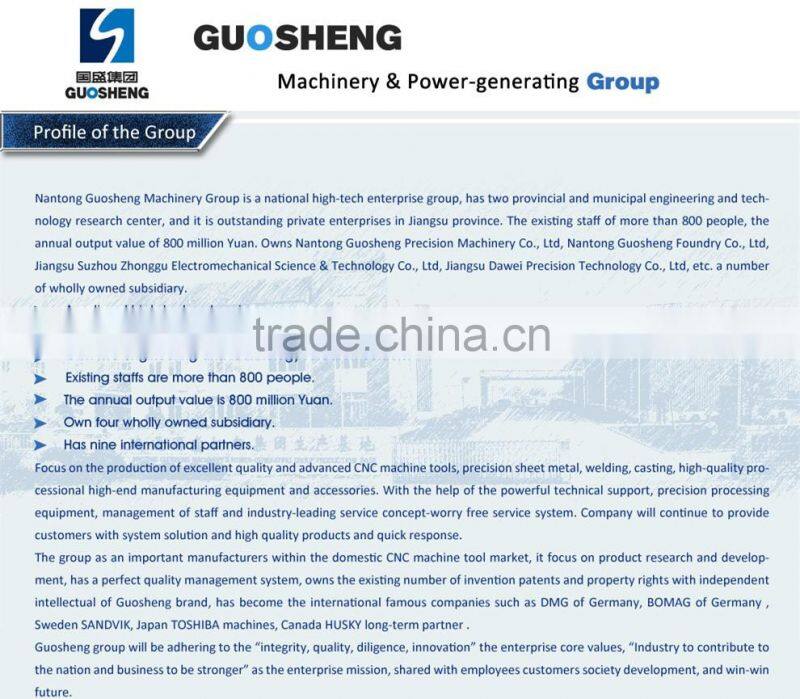

Company Introduction
