ZGW32C EDM CNC Wire Cutter

FOB Price

US$ 5,000 - 50,000 / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	CNC or Not	CNC
Place of Origin	Jiangsu, China	Brand Name	Guosheng
Model Number	ZGW32C	Voltage	380V/50Hz
Dimension(LWH)	1600x1330x1800 mm	Weight	1600kg
Certification	CE/ISO9000	Warranty	1 Year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Detailed Images

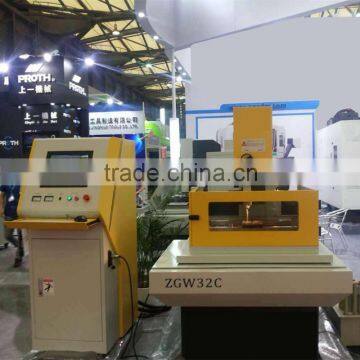

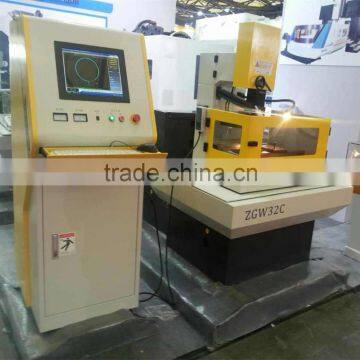

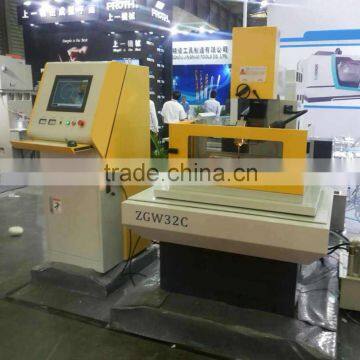

ZGW32C EDM CNC Wire Cutter

·Advanced professional system

·Full support ISO codes

·Excellent NC programming Orbit moving from CAD, CAXA drawing directly

·AC servo motor for moving contort

·Position feedback control

·Digital pulse generator with finish cutting

Product Paremeters

Specification	ZGW32C	ZGW40C	Unit
Worktable dimension	883 x 575	890 x 760	mm
Worktable travel	320 x 400	400 x 500	mm
Max cutting thickness	260		mm
Max load weight	300	400	mm
Machine weight	1600	1700	kg
External dimension	1600 x 1330 x 1800	1680 x 1470 x 1800	mm
Max cutting taper	± 3		°
Max cutting speed	≥ 180		mm² / min
Best surface roughness	Rα ≤ 0.8		um
Electrode wire dimension	0.10-0.25		mm
Worktable minimum feed	0.001		mm
Machining precision	0.006 （Φ15，thickness 25)		mm

Structural Features

Machine Bed

Rugged design, the first consideration is the stability of the bed. It can ensure that each part of the bed can stressed uniformly, and get the best precision under the allowed load. The structure of machine bed will help machine keep away from the influence of the workpiece in motion.

Worktable

High-precision linear rail guideway, precise ballscrew. Quick responsed servo and high driving accuracy. Ensure good machining accuracy and good stability.

The high-precision moving parts of machine bed and worktable using fully enclosed structure of environmental protection.

Mobile double slats table bracket and fixture, easier to use, improve machining efficiency.

Movement Wire Struture

Wire cylinder use variable-frequency regulating speed technology. According to the different wire and workpiece thickness, using different wire speed. The roller bearing use grease system without maintenance to expanded three times the service life.

Lubrication System

The machine use oil lubrication system to keep the mechanical movement parts adequate lubrication and the precision of machine.

Certifications

Packing

Company Introduction

Other Products

MV1060 Vertical Machine Center

Workbench size: 1300 x 600 mm

XYZ travel: 1000x600x650mm

Workbench load: 1000 kg

DHM63 Horizontal Machine Center

Table size: 630 x 630 mm

Axis travel: 1050x1000x1000 mm

Spindle speed: 6000 r.p.m

GMF Gantry Machining Center

Gantry Width: 1350-3430 mm

Position accuracy: 0.021 mm

Repositioning accuracy 0.02 mm
