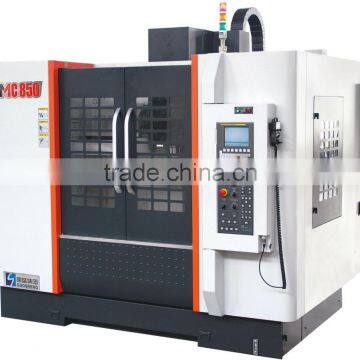

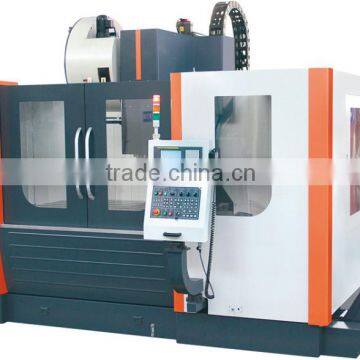

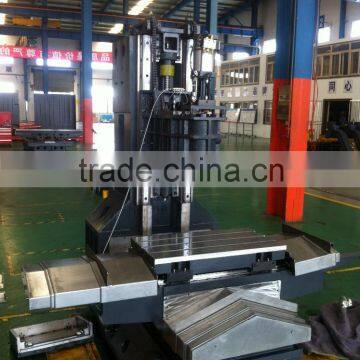

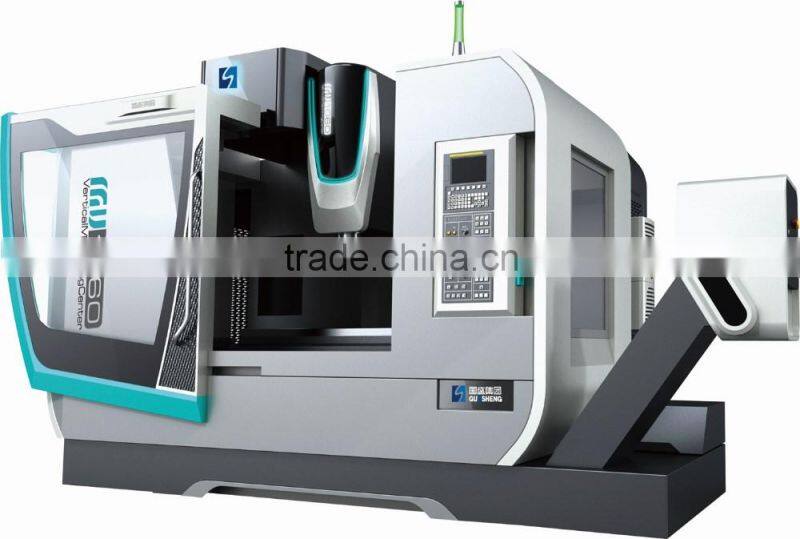

| VMC1060 CNC MACHINE/Vertical Machining Center/VMC |

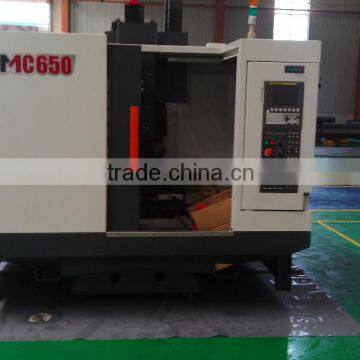

Machine Type | Unit | VMC 650 | VMC 850 | VMC 1060 |
Worktable |
|
|
|
|
worktable(length×width ) | mm | 800×420 | 1050×500 | 1300×600 |
Maximum load of table | kg | 500 | 650 | 1000 |
T-slot | mm | 3-18×110 | 3-18×80 | 3-18×120 |
Travel |
|
|
|
|
X/Y/Z axis travel | mm | 600/420/500 | 800/500/600 | 1000/600/650 |
Distance from spindle nose to table surface | mm | 80-580 | 150-750 | 150-800 |
Distance from spindle center to column guide surface | mm | 550 | 620 | 700 |
Feed system |
|
|
|
|
CNC system |
| FANUC-Oi MD | FANUC-Oi MD | FANUC-Oi MD |
Rapid shift of axes of X/Y/Z |
| 30/30/20 | 30/30/20 | 24/24/20 |
Maximum cutting feed speed |
| 12 | 12 | 8 |
Automatic tool transform system |
| |||
The larges diameter cutter | mm | Φ80/300 | Φ80/300 | Φ80/300 |
Precision |
|
|
|
|
Positioning accuracy | mm | 0.008 | 0.008 | 0.008 |
Accuracy of repeated positioning | mm | 0.005 | 0.005 | 0.005 |

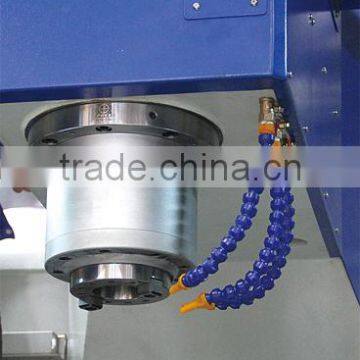

Spindle system |
|
|
|
|
Spindle speed | r.p.m | 8000 | 8000 | 8000 |
Spindle specifications |
| BT40/120 | BT40/150 | BT40/150 |
Machine specifications |
|
|
|
|
Machine weight | kg | 4000 | 5000 | 7000 |
Overall dimension (length×width×height) | mm | 2330×2200×2490 | 2700×2300×2600 | 3500×2700×2650 |

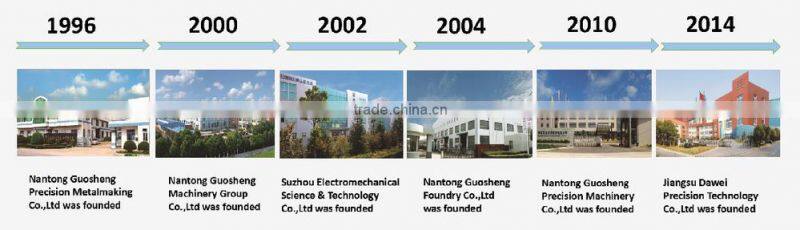

Nantong Guosheng Machinery & Power-generating Group owns Guosheng Machinery,
Guosheng Precision Machinery, Guosheng Foudry and Suzhou Zhonggu Electromechanical,
Dawei Precision Company.
We are specialized in producing the advanced CNC Horizontal Machining Center,
CNC Vertical Machining Center, Gantry Machining Center, Horizontal boring-milling
machine and Precision sheet metal parts, professional welding parts, high quality
casting, CNC EDM Machine tool.
Our products can meet the demand from mould industry, energy industry,
shipbuilding industry, construction machinery industry, aerospace industry,
military project and so on.
Guosheng group acted in obedience to the enterprise sprit: “honest, quality, diligence,
innovation.” Our enterprise pursuit is “Contribute to the country, Enterprise Strong”.
We will keep on provide the all-around solution and high quality products and fast-action
to our clients.
| Grace Xue (Mobile: 8618004027778) |
| International Trade Specialist |
Add:No.2 Yongtong Road, Gangzha Economical and Technological Development Zone, Nantong City, Jiangsu Province,P.R. China . |
| Tel:+86-513-85605630 |
| Fax:+86-513-85302638 |
| Whatsapp;+8618004027778 |
| Website: http://ntgsjt.en.china.cn/ |
| Skype: rc_machinery014 |
| Building Business and Friendship Worldwide! |
