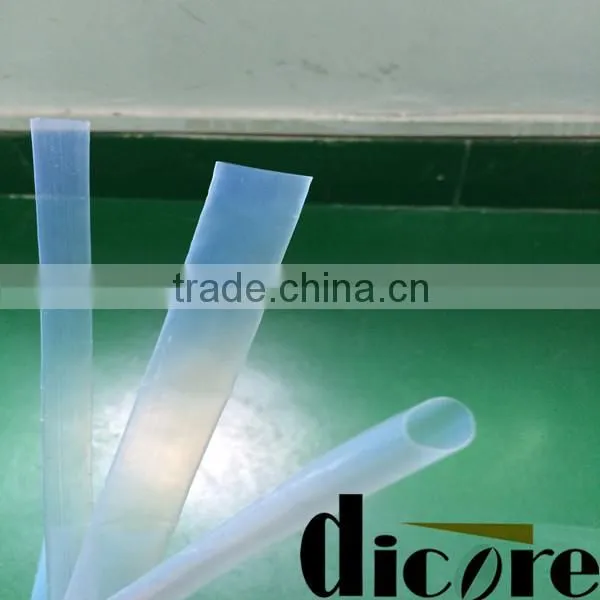

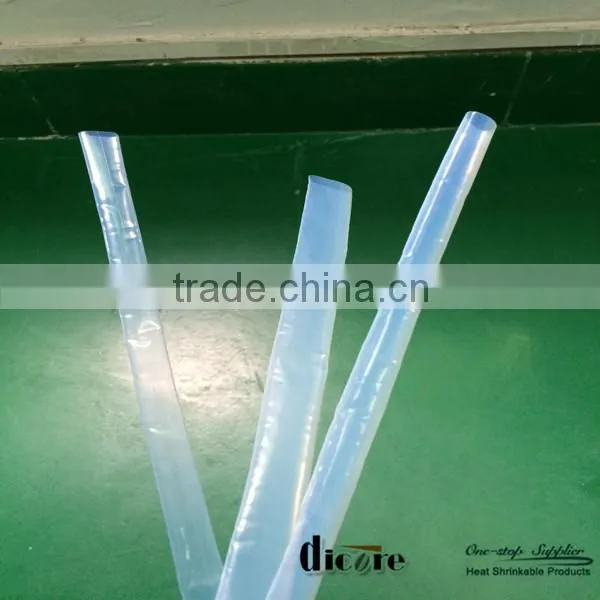

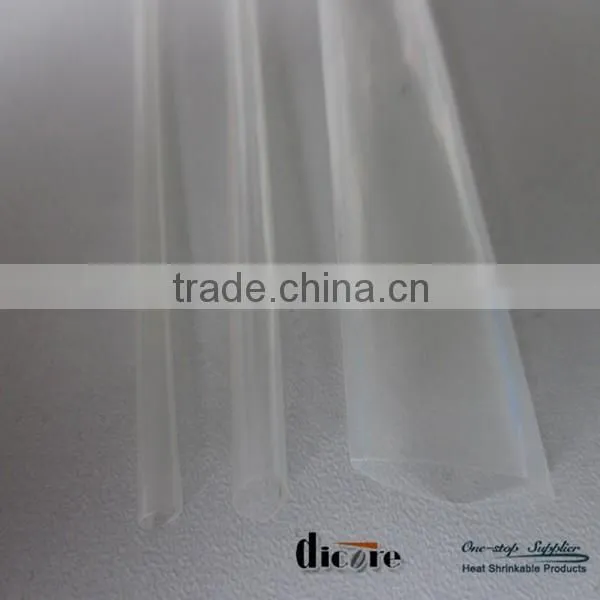

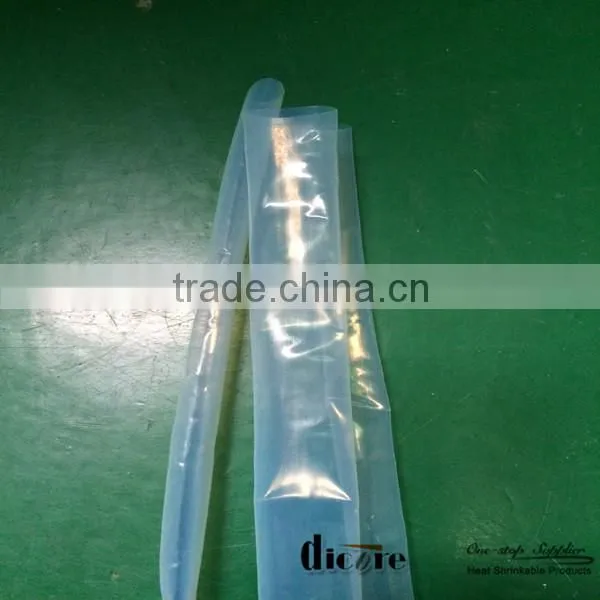

Help CenterHigh Temperature Tube/heat Shrink Transparent Sleeve
Related Products
-
Flexible Straight Transparent Heat Shrinkable Ptfe Teflon TubingUS$ 0.01 - 10MOQ: 1 Meter -
Heat Shrink Tube/high Temperature/medical Rubber TubingUS$ 0.01 - 10MOQ: 50 Meters
-
Diesel Resistant Elastomeric Shrink TubingUS$ 0.1 - 10MOQ: 100 Meters
-
High Temperature Resistant PTFE Teflon Heat Shrinkable TubeUS$ 0.1 - 10MOQ: 100 Meters
-
Silicone Rubber Heat Shrinkable Insulated Sleeving HoseUS$ 0.1 - 10MOQ: 100 Meters
HHST-175 is semi-rigid, excellent flame retardant heat-shrinkable Polyvinylidene fluoride (PVDF) tube for applications requiring high temperature performance, outstanding abrasion and cut through resistance or superior chemical and solvent resistant properties.
Features
>Approvals: UL, VW -1
>Meet: RoHS, SAE-AMS-DTL-23053/18
>Operating temperature: -55℃ to +175℃
>Minimum shrink temperature: 175℃
>Standard color: Clear
Property |
Test Method |
Typical Data |
Operating temperature |
IEC 216 |
-55℃ to +175℃ |
Tensile strength |
ASTM D 2671 |
34.5MPa |
Elongation at break |
ASTM D 2671 |
150% |
Elongation at break after aging |
250℃/168hrs. |
100% |
Heat shock |
300℃/1hr. |
No cracking |
Cold bend |
-55℃/1hr. |
No cracking |
Flammability |
VW -1 |
Pass |
Volume resistance |
IEC 93 |
1013Ω.cm |
Dielectric strength |
ASTM D 2671 |
30kV/mm |
Specifiction
Normal size |
As supplied(mm) |
After recovered (mm) |
Tube shape |
Standard length (m/roll) |
||
(inch) |
(mm) |
Inside diameter (Min.) |
Inside diameter (Max.) |
Wall thickness (Nom.) |
||
3/ 64 |
1.2 |
1.2 |
0.6 |
0.25±0.05 |
O |
200 |
1/16 |
1.6 |
1.6 |
0.8 |
0.25±0.05 |
O |
200 |
3/ 32 |
2.4 |
2.4 |
1.2 |
0.25±0.05 |
O |
200 |
1/ 8 |
3.2 |
3.2 |
1.6 |
0.25±0.05 |
O |
100 |
3/16 |
4.8 |
4.8 |
2.4 |
0.25±0.05 |
O |
100 |
1/ 4 |
6.4 |
6.4 |
3.2 |
0.30±0.05 |
O |
100 |
3/ 8 |
9.5 |
9.5 |
4.8 |
0.30±0.05 |
- |
50 |
1/ 2 |
12.7 |
12.7 |
6.4 |
0.30±0.05 |
- |
50 |
3/ 4 |
19.1 |
19.1 |
9.5 |
0.42±0.05 |
- |
50 |
1 |
25.4 |
25.4 |
12.7 |
0.50±0.05 |
- |
50 |
1-1/2 |
38.1 |
38.1 |
19.1 |
0.50±0.05 |
- |
50 |
Tube shape: “O” : Round or Oval, “—”: Flat
Packaging: 200m/roll 50m/roll, other packaging is available on request
Shipping: Smaple by Express Large volume by Sea
Dicore is a professional supplier of various heat shrinkable products, including Different kinds of Heat Shrinkable Tubing/Sleevings, Heat Shrinkable Moulded Shapes products from kinds of material like Polyolefin, Silicone Rubber, PTFE, Polyvinylidene Fluoride(PVDF), Fluoroelastomer(Viton),etc. They are widely used in the field of Energy, Electronic, Automotive, Communications, Military, and Building & ship building to provide effective insulation and protection the functional parts, components and systems.
Dicore has been dedicated to this field since 2003 as an exporter and distributor, and set up our own factory and technical engineering team in the year of 2007. All products presented to our clients have already passed our interior strict quality control examination, which enable our clients to easily choose suitable products with exceptional quality.
- One-Stop Supply of Heat Shrinkable Products and Wiring Harness.
- Competitive price and flexible payment terms.
- Abundant stocks and short delivery time.
- Professional exporting experience and best service quality.
