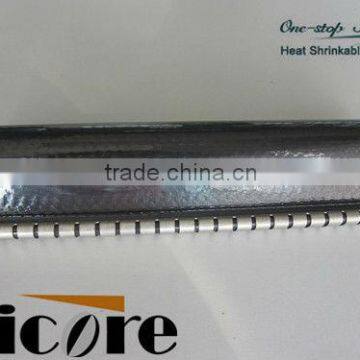

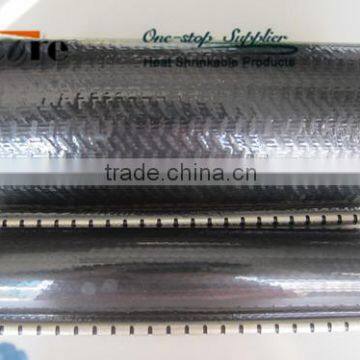

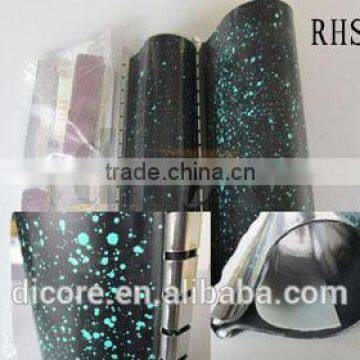

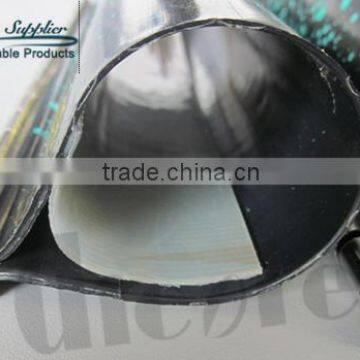

Heat Shrink Repair Splits Sleeve /heat shrinkable repair sleeve
Description
Heat Shrinkable Cable Repair Sleeve (HSRS-N) is made of a cross-linked, heat-shrinkable, thermally stabilized polyolefin, which is coated with a hot-melt adhesive, it will bond at the temperatures attained during the shrinking operation. The HSRS-N has an aluminum canister providing mechanical protection of joint. Flexible crowns at the ends provide a smooth transition from the joint to the cable.
Features
>Quick and easy installation
>Covered with thermo paint
>Protection against mechanical stress
>Sleeve and channel can be cut to suit shorter applications
>For insulation on low voltage cable up to 1000V
>Hot melt adhesive forms a durable, moisture resistant seal
>Fit a wide range of cable sizes
Technical Data
Property |
Test Method |
Standard Value |
Tensile strength |
ASTM-D-638 |
≥13MPa |
Elongation at break |
ASTM -D- 638 |
≥300% |
Tensile strength after aging |
ASTM-D-2671/120°C,168hrs |
≥11MPa |
Elongation at break after aging |
ASTM-D-2671/120°C,168hrs |
≥210% |
Volume resistance |
ASTM-D-2303 |
≥1×1014Ω·cm |
Dielectric strength |
IEC 243 |
≥20kV/mm |
Longitudinal shrinkage |
- |
≤ 10% |
Eccentricity |
ASTM-D-267 |
≤30% |
Water absorption |
ISO 62 |
≤0.1% |
Specification
Description |
Usage Range of Cable outer diameter(O.D.) |
Composition |
HSRS-N-28/6- |
7~12 |
Heat-shrinkable sleeve Metal canister (2 half shells) Flexible stainless steel channels Note:
|
HSRS-N-36/10- |
12~20 |
|
HSRS-N-50/15- |
20~40 |
|
HSRS-N-60/18- |
30~50 |
|
HSRS-N-70/22- |
40~60 |
|
HSRS-N-80/25- |
50~70 |
|
HSRS-N-100/30- |
60~90 |
|
HSRS-N-135/38- |
70~120 |
|
HSRS-N-164/42- |
80~150 |
|
HSRS-N-185/55- |
90~160 |
|
HSRS-N-200/60- |
100~180 |
|
HSRS-N-220/65- |
120~200 |
*Alternative for Raychem CRSM,3M HDCW, CANUSA CRDW

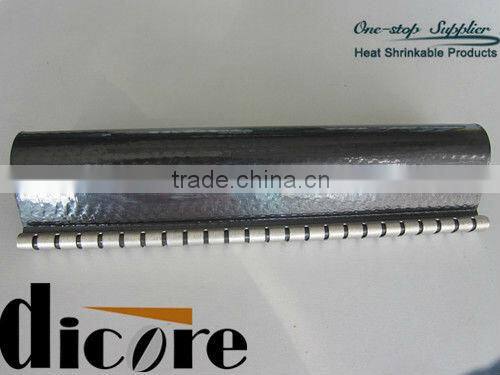

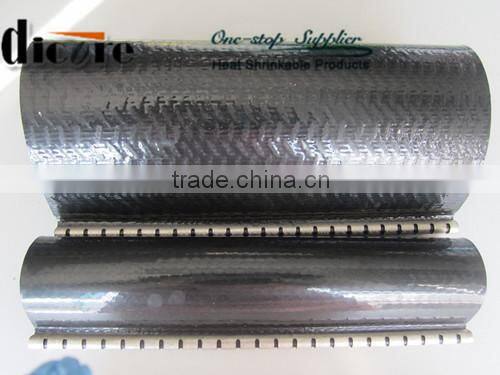

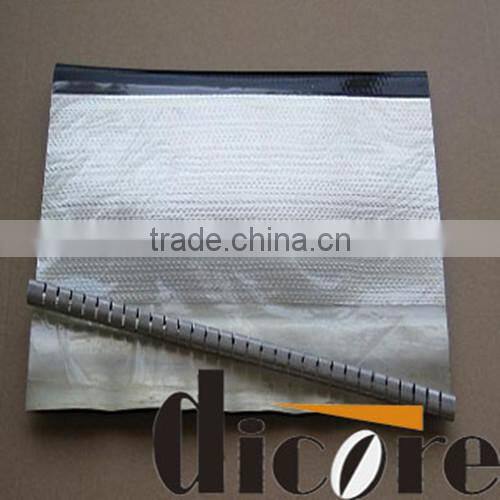

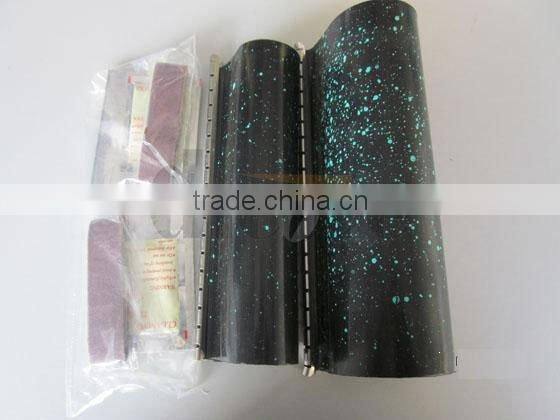

Heat Shrink Repair Splits Sleeve /heat shrinkable repair sleeve
Heat Shrink Repair Splits Sleeve /heat shrinkable repair sleeve
Other products:
Company Profile
Dicore is a professional supplier of various heat shrinkable products, including Different kinds of Heat Shrinkable Tubing/Sleevings, Heat Shrinkable Moulded Shapes products from kinds of material like Polyolefin, Silicone Rubber, PTFE, Polyvinylidene Fluoride(PVDF), Fluoroelastomer(Viton),etc. They are widely used in the field of Energy, Electronic, Automotive, Communications, Military, and Building&shipbuilding to provide effective insulation and protection the functional parts, components and systems.
Dicore has been dedicated to this field since 2003 as an exporter and distributor, and set up our own factory and technical engineering team in the year of 2007. All products presented to our clients have already passed our interior strict quality control examination, which enable our clients to easily choose suitable products with exceptional quality.
Dicore draws upon its powerful Technology team, big producing capacity, well-known purchasing ability and close relationship with manufactures to offer full line products with exceptional quality, and bring productivity improvements to our clients. As an One-Stop supplier, we have our special advantages in this field as following:
- One-Stop Supply of Heat Shrinkable Products and Wiring Harness.
- Competitive price and flexible payment terms.
- Abundant stocks and short delivery time.
- Professional exporting experience and best service quality.
Thank you very much for browsing our page ! Your feedback is highly appreciate .
We are looking forward to hear from you soon.
