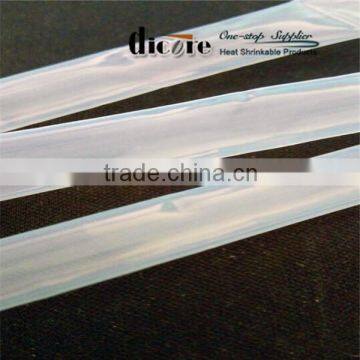

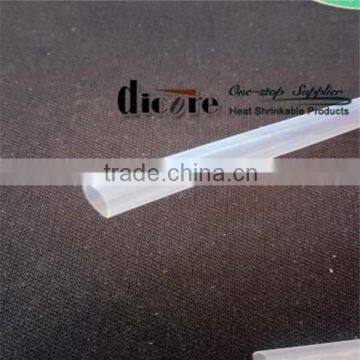

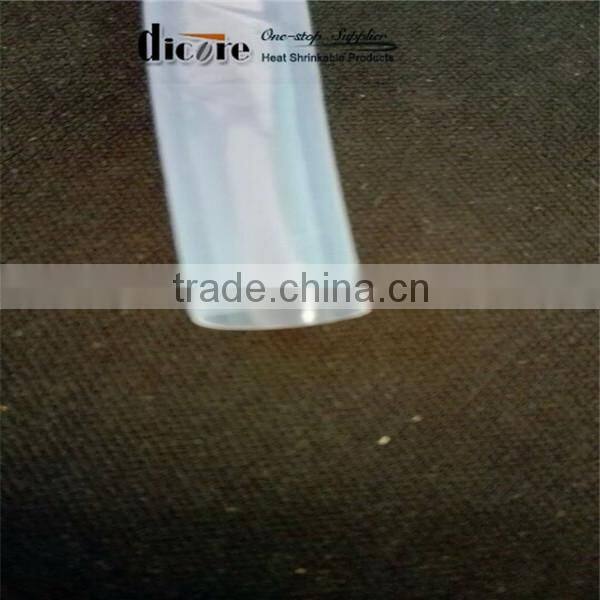

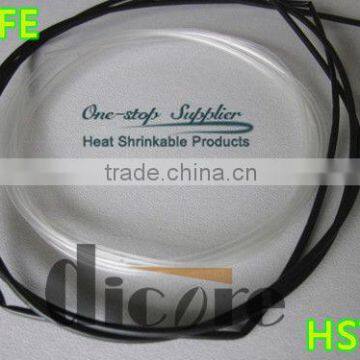

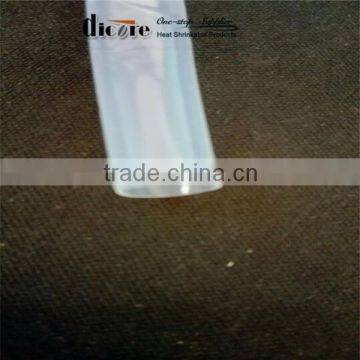

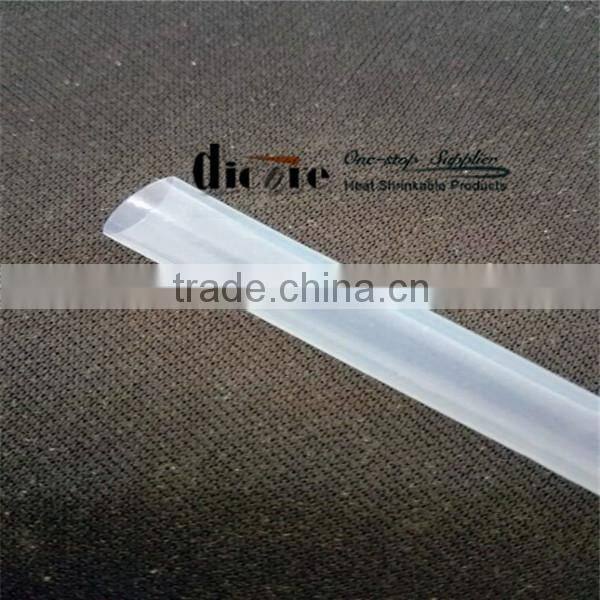

Heat Shrink PTFE Tubing Teflon for Dielectrical insulation, chemical resistance, Guidewire jacketing, corrosion Resistant
Model; HSTT-1.7X / HSTT-4X
Description
Heat Shrink PTFE Teflon Tubing helps extend product life by providing a protective covering that resists heat, shock, corrosion, moisture and other extremes. They have excellent surface lubricity and high dielectric strength. They are water resistant, chemically inert, and can be produced in a number of custom sizes with a range of shrink ratios.
Applications
>Guidewire jacketing (interventional, access)
>Coating surgical instruments
>Dielectric insulation
>Component covering
>Water proofing
>Abrasion/corrosion protection
>Reflow bonding
Property:
Test Item |
Value |
Material |
PTFE / Teflon |
Color |
transparent |
Operating temperature |
-80°C~260°C |
Flammability |
UL94V-1 |
Shrinking temperature |
280°C-320°C |
Impedance |
≥1018Ω.CM |
Water absorption |
≤0.01% |
Longitudinal shrinkage |
5% |
Tensile strength |
>2700psi |
Elongation at break |
>200% |
HSTT-1.7X (shrink ratio: 1.7 : 1)
Size(mm) |
I.D. before shrinking (mm) |
Average thickness(mm) |
I.D. after recovery (mm) |
Thickness after full recovery(mm) |
φ0.5 |
0.7±0.2 |
0.10±0.05 |
≤0.40 |
0.15±0.05 |
φ1.0 |
1.0±0.2 |
0.10±0.05 |
≤0.50 |
0.15±0.05 |
φ1.5 |
1.5±0.2 |
0.10±0.05 |
≤0.90 |
0.15±0.05 |
φ2.0 |
2.0±0.2 |
0.10±0.05 |
≤1.30 |
0.15±0.05 |
φ2.5 |
2.5±0.2 |
0.10±0.05 |
≤1.50 |
0.15±0.05 |
φ3.0 |
3.0±0.2 |
0.15±0.05 |
≤1.80 |
0.20±0.05 |
φ3.5 |
3.5±0.2 |
0.15±0.05 |
≤2.0 |
0.20±0.05 |
φ4.0 |
4.0±0.2 |
0.15±0.05 |
≤2.5 |
0.20±0.05 |
φ4.5 |
4.5±0.2 |
0.15±0.05 |
≤2.8 |
0.20±0.05 |
φ5.0 |
5.0±0.3 |
0.15±0.05 |
≤3.0 |
0.20±0.05 |
φ6.0 |
6.0±0.3 |
0.15±0.05 |
≤3.8 |
0.25±0.05 |
φ7.0 |
7.0±0.3 |
0.15±0.05 |
≤4.0 |
0.25±0.05 |
φ8.0 |
8.0±0.3 |
0.15±0.05 |
≤4.8 |
0.25±0.05 |
φ9.0 |
9.0±0.3 |
0.15±0.05 |
≤5.0 |
0.25±0.05 |
HSTT-4X (shrink ratio: 4 : 1)
Size |
I.D. before shrinking (mm) |
Thickness before shiriking(±0.01) (mm) |
I.D. after receovery(mm) |
φ1.5 |
1.5(1/6") |
0.1 |
0.40 |
φ2.0 |
2.36(3/32") |
0.12 |
0.50 |
φ3.0 |
3.17(1/8") |
0.12 |
0.7 |
φ4.5 |
4.77(3/16") |
0.12 |
1.2 |
φ6.0 |
6.35(1/4") |
0.12 |
|
