Dicore heat shrink solder crimp connectors
Solder crimp connectors consists of clear heat shrinkable tube and fluxed solder .
Provides insulation , inspection , strain relief and waterproof .
Makes installation easily and lower the installed cost .
Color hot melt adhesive on ends of heat shrinkable sleeves , easy to use the exact wire dimension .
In-line wire splices
Operaturing temperature : -55℃-125℃
Fully recovery temperature : 130℃
Temperature of fully solder melt : 150℃

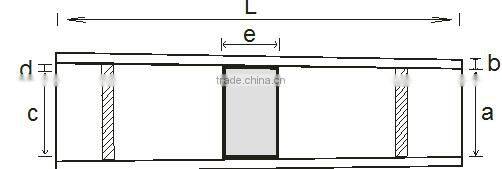

Specification
| Model | Before shrinking ID | After shrinking ID | Solder ring ID | Color | Lenght |
| SSWS-1 | 2.0 | 1.0 | 1.8 | White | 25 |
SSWS-2 | 3.2 | 1.5 | 2.9 | Red | 40 |
| SSWS-3 | 5.0 | 2.6 | 4.6 | Blue | 40 |
| SSWS-4 | 6.5 | 3.0 | 6.2 | Yellow | 40 |

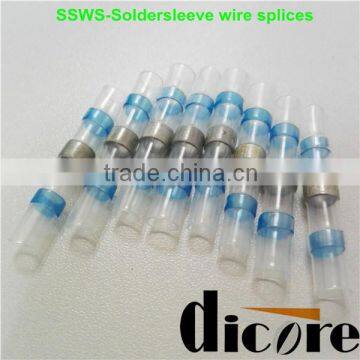

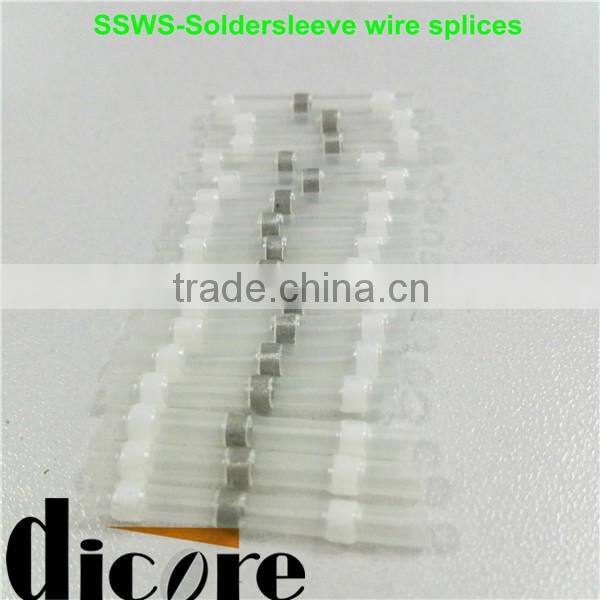

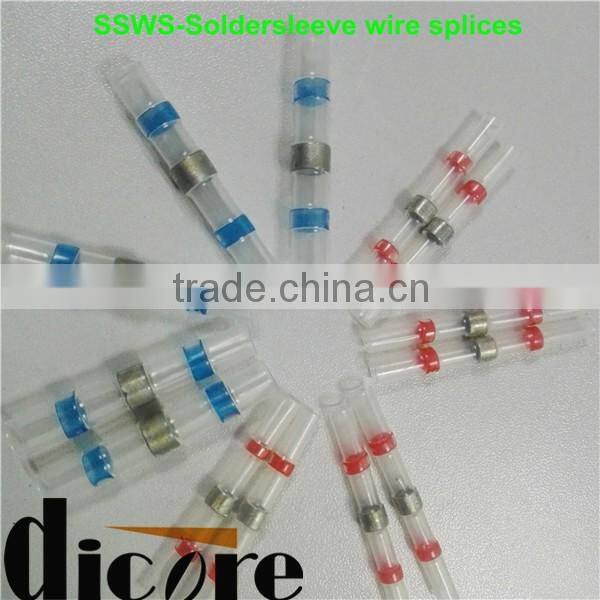

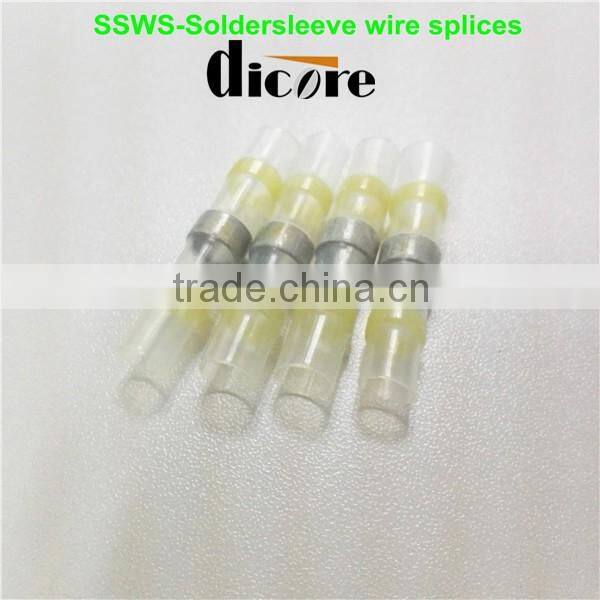

Products images :

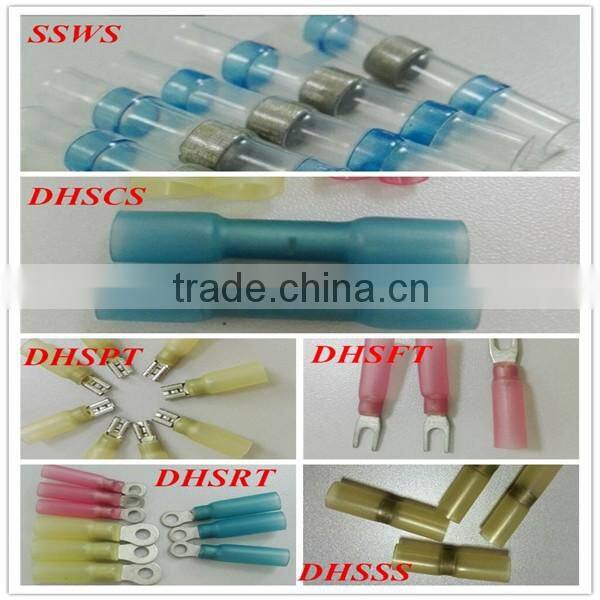

Other products :
Company Profile
Dicore is a professional supplier of various heat shrinkable products, including Different kinds of Heat Shrinkable Tubing/Sleevings, Heat Shrinkable Moulded Shapes products from kinds of material like Polyolefin, Silicone Rubber, PTFE, Polyvinylidene Fluoride(PVDF), Fluoroelastomer(Viton),etc. They are widely used in the field of Energy, Electronic, Automotive, Communications, Military, and Building&shipbuilding to provide effective insulation and protection the functional parts, components and systems.
Dicore has been dedicated to this field since 2003 as an exporter and distributor, and set up our own factory and technical engineering team in the year of 2007. All products presented to our clients have already passed our interior strict quality control examination, which enable our clients to easily choose suitable products with exceptional quality.
Dicore draws upon its powerful Technology team, big producing capacity, well-known purchasing ability and close relationship with manufactures to offer full line products with exceptional quality, and bring productivity improvements to our clients. As an One-Stop supplier, we have our special advantages in this field as following:
- One-Stop Supply of Heat Shrinkable Products and Wiring Harness.
- Competitive price and flexible payment terms.
- Abundant stocks and short delivery time.
- Professional exporting experience and best service quality.
