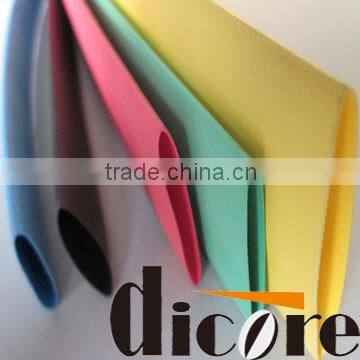

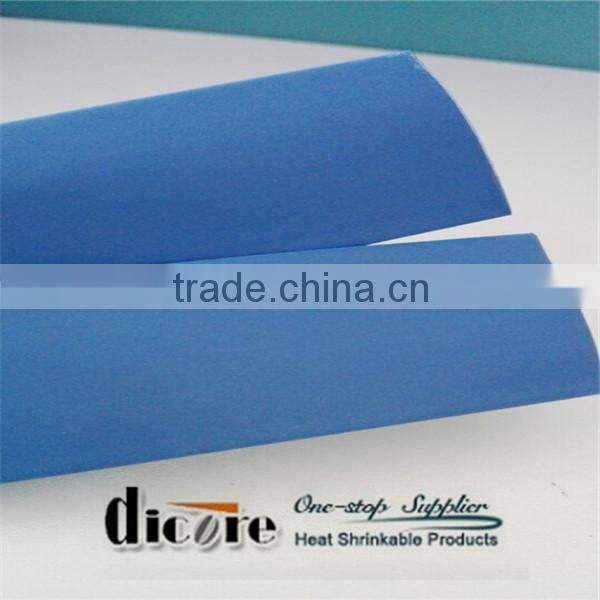

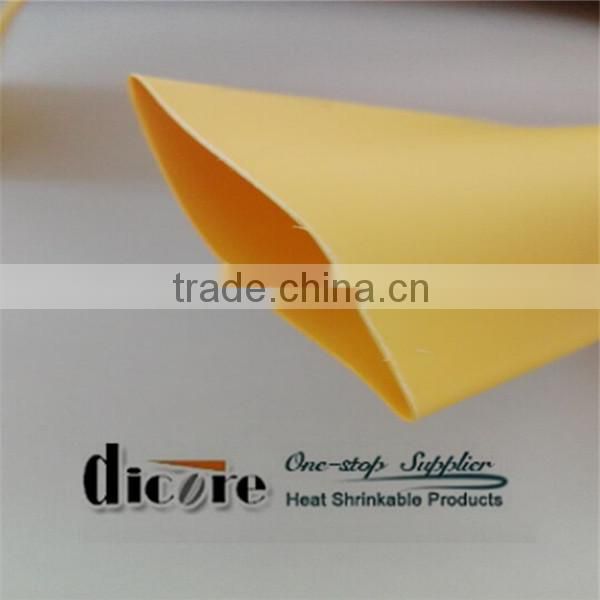

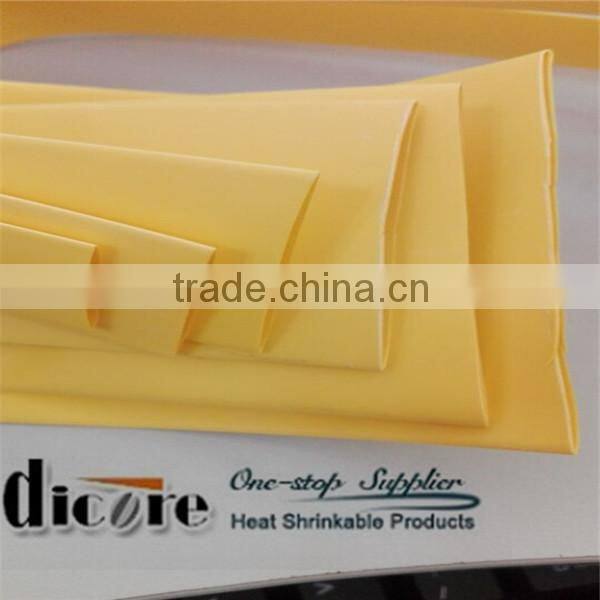

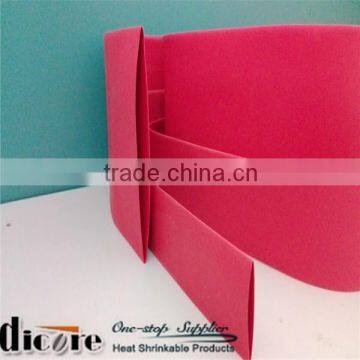

Thin wall PE zero halogen heat shrink tube /flexible heat shrink sleeves /pipes /hose
HHST is heat shrinkable tube without halogen , which is low smoking flame-retardant with polyolefin material .It contains halogen free and exhibits excellent fire safety characteristics combined with low evolution of acid gases ,while retaining good mechanical and fluid resistance properties .
Model | HHST |
Shrinking Ratio | 2:1, 3:1 |
Material | PE heatshrink tube |
Tubing diameter | 0.8mm to 250mm |
Colors | Black, Red, Blue, White, Yellow, Green,Clear, yellow/green |
Special color | Red, Blue, White, Yellow, Green,Clear |
Rated voltage | 600V |
Approval | UL 224VW-1C-UL CSA C 22.2 OFT |
Products features :
1.Polyolefin material .
2.Operating temperature :125℃.
3.UL /CSA VW-1 ,RoHs compliant .
4.Flexible and fast shrinking .
5.Flame retardant .
PROPERTY
Item | Value |
Shrinking temperature | Start at 70°C |
Operating temperature | -55°C~125°C |
Redial shrinking ratio | ≥50% |
Longitudinal shrinkage | ≤5% |
Tensile strength | ≥14Mpa |
Volume resistance | >1014 Ω/cm |
Dielectric strength | ≥15 KV/mm |
Flammability | UL224, VW-1 |
HHST-2X
Size (mm) | As Supplied(mm) | After Recovery(mm) | Standard Package (m/spool) | The Range Of Diameter (mm) | ||
I.D. | Normal W.T. | Max.I.D. | Normal W.T. | |||
φ0.6 | 0.9±0.2 | 0.20±0.05 | ≤0.40 | 0.33±0.10 | 200 | 0.5~0.7 |
φ0.8 | 1.1±0.2 | 0.20±0.05 | ≤0.50 | 0.33±0.10 | 200 | 0.6~0.8 |
φ1.0 | 1.5±0.2 | 0.20±0.05 | ≤0.65 | 0.36±0.10 | 200 | 0.75~0.9 |
φ1.5 | 2.0±0.2 | 0.20±0.05 | ≤0.85 | 0.36±0.10 | 200 | 0.95~1.4 |
φ2.0 | 2.5±0.2 | 0.25±0.05 | ≤1.00 | 0.45±0.10 | 200 | 1.1~1.8 |
φ2.5 | 3.0±0.2 | 0.25±0.05 | ≤1.30 | 0.45±0.10 | 200 | 1.4~2.3 |
φ3.0 | 3.5±0.2 | 0.25±0.05 | ≤1.50 | 0.45±0.10 | 200 | 1.6~2.7 |
φ3.5 | 4.0±0.2 | 0.25±0.05 | ≤1.80 | 0.45±0.10 | 200 | 1.9~3.2 |
φ4.0 | 4.5±0.2 | 0.25±0.05 | ≤2.00 | 0.45±0.10 | 200 | 2.1~3.6 |
φ4.5 | 5.0±0.2 | 0.30±0.08 | ≤2.30 | 0.56±0.10 | 100 | 2.4~4.0 |
φ5.0 | 5.5±0.2 | 0.30±0.08 | ≤2.50 | 0.56±0.10 | 100 | 2.6~4.5 |
φ5.5 | 6.0±0.2 | 0.30±0.08 | ≤2.75 | 0.56±0.10 | 100 | 2.85~5.0 |
φ6.0 | 6.5±0.2 | 0.30±0.08 | ≤3.00 | 0.56±0.10 | 100 | 3.1~5.4 |
φ7.0 | 7.5±0.3 | 0.30±0.08 | ≤3.50 | 0.56±0.10 | 100 | 3.7~6.3 |
φ8.0 | 8.5±0.3 | 0.30±0.08 | ≤4.00 | 0.56±0.10 | 100 | 4.2~7.2 |
HHST-3X
Thin wall PE zero halogen heat shrink tube /flexible heat shrink sleeves /pipes /hose
Thin wall PE zero halogen heat shrink tube /flexible heat shrink sleeves /pipes /hose
