Specifications
1.PET beverage bottles hydraulic baler2.OperationaaPLC control system
3.Certificate:CE,TUV, SGS,ISO
4.Company: Since 1995
High quality factory direct sale vertical baler PET beverage bottles compress
Specification
l This machine uses the hydraulic transmission, with two cylinders in operation, durable and powerful.
l The button common control system can realize the multiple kinds of working ways.
l The machine’s working pressure traveling distance range can be adjusted according to the material bale size.
l Special feed opening and automatic bale-out device can contribute to convenient operation
l Install the interlocking device which will be safe and reliable.
l Pressure force, packing size can be customized according to customer’s requirement.
Parameter
Model |
JPA1070T40 |
JPA1070T60 |
JPA1075T80 |
JPA1075T100 |
Hydraulic power |
40Ton |
60Ton |
80Ton |
100Ton |
Packaging size(L*W*H) mm |
1100*700*500-900 |
1100*700*500-900 |
1100*750*500-900 |
1100*750*500-900 |
Feed opening size(L*H) mm |
1100*500 |
1100*500 |
1100*500 |
1100*500 |
Chamber Size(L*W*H) mm |
1100*700*1450 |
1100*700*1450 |
1100*750*1500 |
1100*750*1500 |
Capability |
6-12bale/hour |
5-8bale/hour |
4-6bale/hour |
4-6bale/hour |
Voltage (can be customized) |
380V/50HZ |
380V/50HZ |
380V/50HZ |
380V/50HZ |
Power |
5.5KW/7.5HP |
7.5KW/10HP |
11KW/15HP |
15KW/20HP |
Machine size(L*W*H) mm |
1600*1100*3150 |
1600*1100*3200 |
1650*1200*3250 |
1650*1200*3250 |
Weight |
1800Kg |
2200Kg |
2600Kg |
3200Kg |

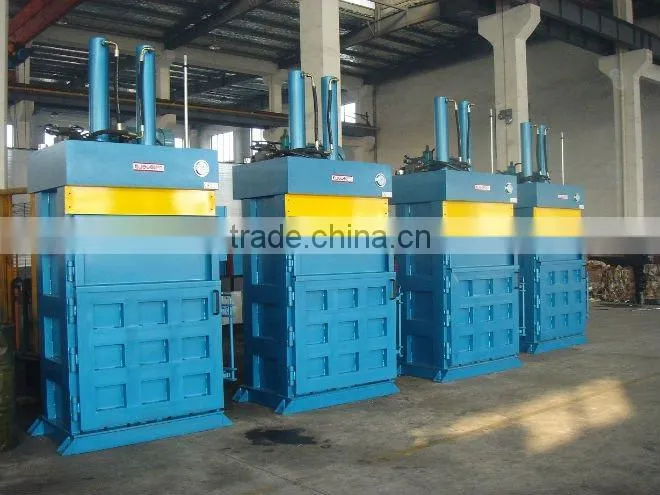

Appearance
Competitive Advantages
- Got CE, TUV, SGS and IS0 9001:2008 certificates
- Elaborately chosen components with best quality
- 18 years mature established company
- More than 70% of products for export, supply golden quality
- Having built business relationships with more than 90 countries, with good credibility and reputation
Crucial components allocation | |
hydraulic system technique |
German technology |
hydraulic elements |
YUTIEN,HYDOR Taiwan China brand |
sealing parts |
HALLETUK brand |
electrical components |
DELIXI Sino-French joint venture brand |
oil pipe |
ZMTESino-American joint venture brand |
hydraulic motor |
JEWELChina brand |
oil pump |
JINGGONG Taiwan China brand |
|
l High quality cylinder and Piston rod with German technology ensure accuracy of dimensions. And with wear-resisting and secure British original sealing. l Advanced CNC (machining centers) to ensure the precision and standardization of all parts and prolong the service life of the machine l Automatic CNC cutting machine is a kind of hot metal cutting equipment with high accuracy and high efficiency, which ensure cutting accuracy and productivity l Advanced CQ2 gas welding equipment and qualified operator ensure each point is made perfectly, without absent welding. l Sophisticated inspection equipment and professional QC personnel,Guarantee that each parts and products with qualified delivery state. |
Sincere professional & prompt approach to your any consultation.
