Home > Products > Labeling Machine > Sleeving and shrinking labeling machine

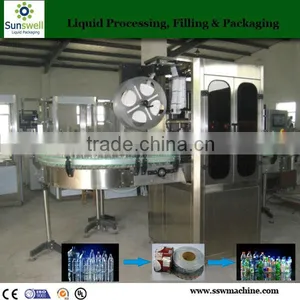

Sleeving and shrinking labeling machine
- 30 Set / Sets per Month
- Shanghai
- T/T
- Automatic Steam Shrink Machine for Bottle
- Shrink Sleeve Steam Tunnel Machine
- Steam Shrink Sleeve Label Machine For Bottle
- PVC Sleeve Label and PET Bottle Steam Shrink Tunnel Quality Choice Supplier's Choice
- PET Bottle Shrink Sleeve Steam Shrink Tunnel Quality Choice
- Automatic Heat Shrink Tunnel Machine
Product Details
Condition: | New | Application: | Beverage | Packaging Type: | Bottles |
Packaging Material: | Plastic, Wood | Automatic Grade: | Automatic | Driven Type: | Electric |
Voltage: | 380v/3PH/50Hz customized | Power: | 3.3kw | Place of Origin: | Jiangsu, China |
Brand Name: | Sunswell | Model Number: | RBX-50 | Dimension(L*W*H): | 2100*1100*2000mm |
Weight: | 250kg | Certification: | CE, ISO,SGS,UL | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
sleeving and shrinking labeling machine1. For label sleeving & shrinking
3. Output: 50-1200BPM
4. CE, UL,ISO
sleeving and shrinking labeling machine
sleeving and shrinking labeling machine
Automatic Shrink Sleeve Applicator is suitable for label sleeving in the fields of drinking, health-care products, cosmetics, washing articles for use, pharmaceuticals and petroleum and so on. Sunswell Series Shrinking Label Sleeving Machines are easy to control, to change bottles and labels smoothly , ande easy for cleaning and maintenance. This series machines also have a high degree of automation.
Above chart shows the exact flow of the packaging of the liquid products, label sleeving machine plays an important role in this line.
sleeving and shrinking labeling machine
1) Features;
a. Various bottle type;round, square and so on.
b. High precious location;save cost and correct.
c. Suitable for adjustment inside film range from 3′to 10′.
d. Man-machine conversation liquid crystal screen;easy operation
e. Magic Eye control feeding material, automatically.
f. PLC control system
g. High- speed sleeve film.(Temperature; from 100 to 600°C suitable for various film material
h. Screw transportation located system;Location for various shape bottles.
i. No need tool adjustment
sleeving and shrinking labeling machine
1 Synchronized transmission, any change of transmission belt will be finished quickly. Compared to the type of traditional multilayer whose change and maintain need more than six hours, its maintenance is easy and maintain is simple, so it doesn’t influence production.
2 Unit cutter head plane design in China which apply to the container of 30mm—130mm.you never need to change
or debug it. It also has unique light touch human-machine screen, that means,auto search original location as well as safety and convenience which is aheadof other congener products.
3 Single shrinking label feed plane ,reasonably height which is convenient to fix the label; micro-computer auto figure which avoid enactment and adjustment .you only need to press it lightly ,the label will detect and locate automatially.The change of label is quick and convinent,besides,the cut place is absolutely exact .
4 Label feeding equipment;driving synchronized tensility control the supply of label ,the supply ability is 90meters per minite,volume label supply plane is 500mm,the internal diameter of paper tube will be 4’ ,8’,10’ .the configuration of label feeding is stable tensility which enable the exact length of label and the stable ,quick supply of label.
5 The center pillar applies step by step shoot label structure and the speed is 150B per minute.
6 The newly designed cutter head use step by step motor driving which speed is high, action is exact, the cut is in order and the shrinking is beautiful. This design cooperates with the label synchronized location structure enable the precision of cut location within 1mm.
7 Many emergency stop buttons enable emergency stop at the proper position along the production which guarantee the safe production.
sleeving and shrinking labeling machine
sleeving and shrinking labeling machine
Item | Parameters | |
1 | Host machine | AC220V, 50/60HZ, 1.5-2KW, single-phase |
2 | Capacity | 150BPM(faster if the label is shorter) |
3 | Diameter of bottle body | 28mm-125mm |
4 | Length of label | 30mm-250mm |
5 | Thickness of label | 0.035mm-0.13mm |
6 | Material of label | PVC, PET, OPS |
7 | Size of equipment | L2000*W850*H2000mm |
sleeving and shrinking labeling machine
Document name | List of Standard electrical appliance Configuration SLM-150 | |||
Module name | Electric appliance name | Merchant | Place of production |
|
Machine frame fluctuation unit | Low power a-c motor | TWT | Taiwan |
|
Clean-down unit | Low power a-c motor | TWT | Taiwan |
|
Feeding unit | Low power a-c motor | TWT | Taiwan |
|
Bottle Carrying unit | Low power a-c motor | TWT | Taiwan |
|
Bottle Separation unit | Low power a-c motor | TWT | Taiwan |
|
Hairbrush unit | Low power a-c motor | TWT | Taiwan |
|
Cutter head unit | Cutter head servo motor | Panasonic | Japan |
|
Driving unit | Driving servo motor | Panasonic | Japan |
|
Electric eye unit | High speed fibre-optical inductor | Panasonic | Japan |
|
Bottle monitor unit | Photoelectricity inductor | Panasonic | Japan |
|
Conveyor unit | Frequency converter | Panasonic | Japan |
Any more questions, pls feel free to contact me!
