High speed and high capability Coal dust briquette machine, block making machine, China supplier
- 60 Set / Sets per Month
- Shanghai
Product Details
Condition: | New | Place of Origin: | Shanghai, China | Brand Name: | JEWEL |
Model Number: | JPW-AK200 | Voltage: | 220-480V | Power(W): | 22-30KW |
Dimension(L*W*H): | 4260*1100*1800 MM | Weight: | 4T | Certification: | CE, ISO, TUV |
Warranty: | ONE YEAR | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Coal dust briquette machine: Wooden case.
Product Description
Specifications
Coal dust briquette machine1. high speed
2. horizontal and continue pushing bag
3. can connect conveyor
High speed and high capability Coal dust briquette machine, block making machine, China supplier
Coal dust briquette machine
1. high speed
2. horizontal and continue pushing bag
3. can connect conveyor
Features
1. Adopting PLC control system, hydraulically driven, bales are produced continuously at high speed and with high yields.
2. Hydraulically driven, runs steadily, can realize unmanned production by adding detector switch at the feed opening and combing with conveyor feeding.
3. Applicable to compress sawdust, wood powder, paper powder and others. Compress is finished by one time. Blocks are easy to store, reducing transport cost.
4. Scraps are compressed in to briquettes, which can be handled directly with no need of bagging and fall apart after beating.
Parameter
Model | JPW-AK150 | JPW-AK200 |
Hydraulic power | 150Ton | 200Ton |
Bale size (L*W*H) | 350*350*220-300mm | 480*480*220-350mm |
Feed opening size (L*H) | 500*350mm | 700*480mm |
Bale weight | 13-16Kg/bag | 30-35Kg/bag |
Capability | 0.65-1T/hour | 1.5-1.8T/hour |
Voltage (can be customized) | 200-480V/50HZ/3Phase | 200-480V/50HZ/3Phase |
Power | 22KW/30HP | 30KW/40HP |
Machine size (L*W*H) | 4200*950*1399mm | 4260*1100*1800mm |
Weight | 3000Kg | 4000Kg |
Machine parts
HYDRAULIC TECHNIQUE | REXROTH (Germany TECHNIQUE) |
HYDRAULIC ELEMENTS | YUTIEN or HYDOR (TAIWAN Brand) |
SEALING PARTS | HALLET (UK brand) |
ELECTICAL ELEMENTS | DELIXI (Europe brand ) |
OIL PIPE | ZMTE (Europe brand) |
MOTOR | JIABAO (Brand-specific Customized hydraulic motor, without junction axis, lower noise, no maintenance and energy saving, safe and reliable) |
PUMP | JINGGONG (Taiwan investment) above 50T DAZONG (Germany investment) below 40T |

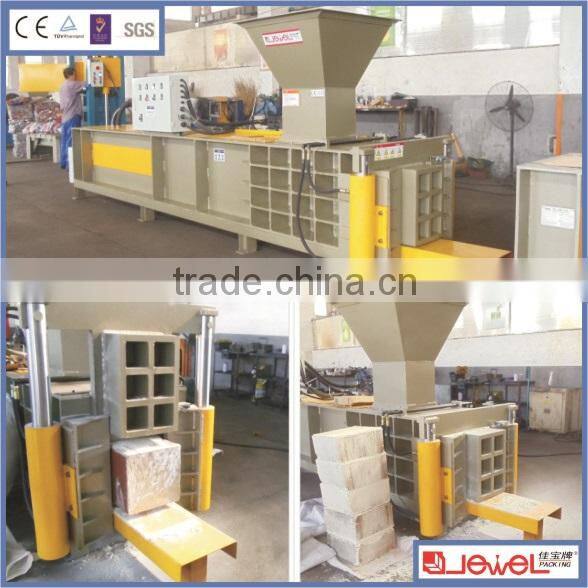

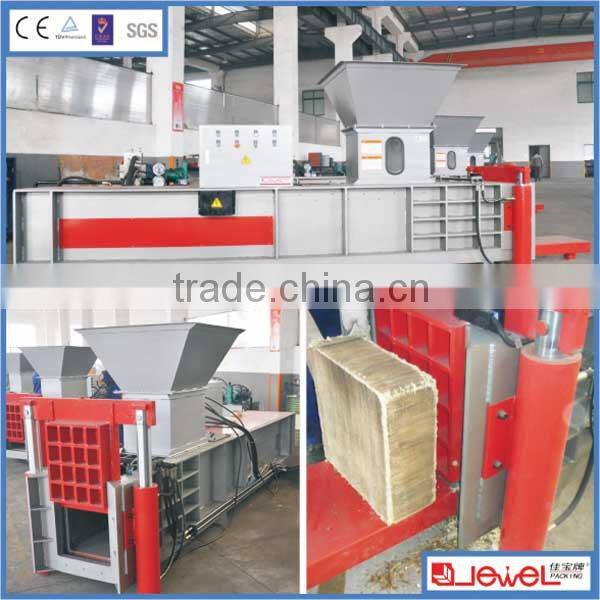

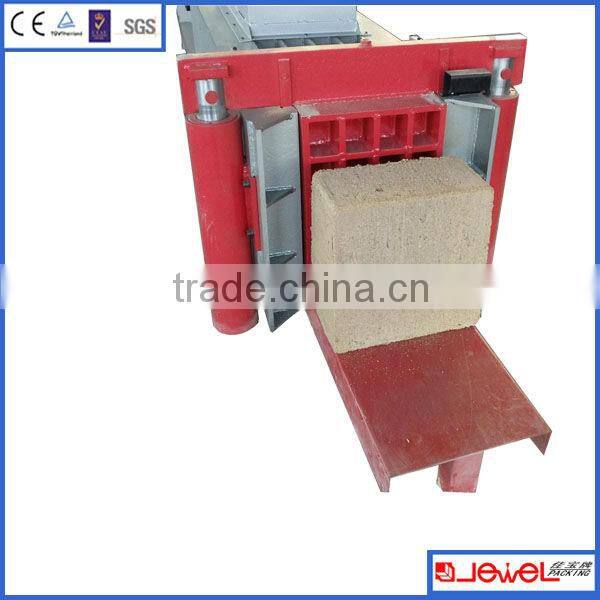

Machine pictures
Certificates
Factory and company
Contact
Caren Zhao
JIAJING (JIABAO) MACHINERY CO., LTD.
Add.: 909 Room, No.6 Building, No.1323 WanRong Road, Shanghai, China
Mob: +86 13918563449
Skype: sharonpxy
Company Profile
Shanghai Jiajing Machinery Co., Ltd. specializes in the designing, manufacturing and distribution of packaging machines, packaging materials and hydraulic machines. We have excellent engineers and technicians in R&D department.
We have factories in Shanghai City and Nantong City. These factories can manufacture more than thousands sets of hydraulic machines. With adopted modem management experience and the advantages of technique, some products of our company have been exported to Japan, Europe and America. We can provide high quality and professional services to our customers.
Our environmentally friendly machines can make live the garbage, industry garbage, and attain the classification with compress to handle, protect the living environment, and reduce the conveyance cost. They are societies to develop, and the business enterprise reduces conveyance with warehouse space of essential equipment. Now current supply is short of demand in Euro-American markets, so these products have great development space. The price of my company has strong competition ability in abroad markets.
We sincerely welcome all clients to contact us.
